PLAN 406-9618

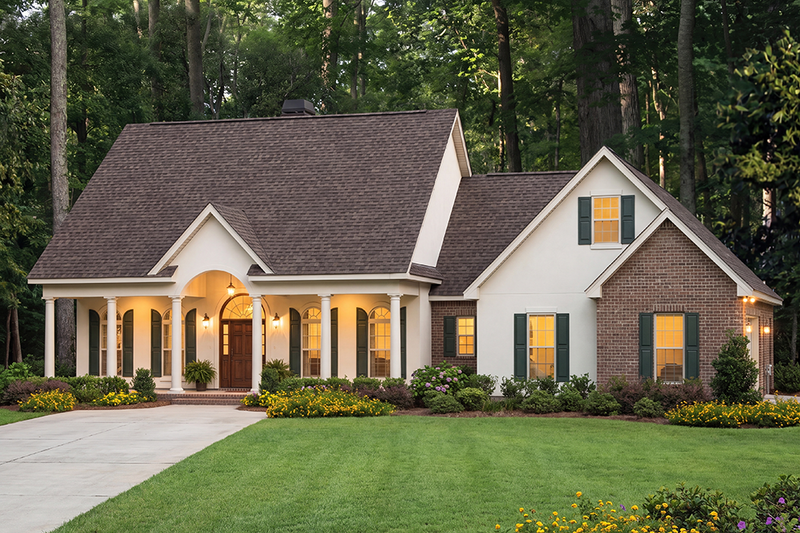

Southern Exterior - Front Elevation Plan #406-9618
Southern Exterior - Rear Elevation Plan #406-9618

Select Plan Set Options

What's included?
Additional Construction Sets
$55.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Subtotal
$1200.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 406-9618

Key Specs


2638
sq ft

3
Beds

3.5
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Full Specs & Features


Dimension
Depth : 59' 8"
Height : 26'
Width : 75' 6"
Area
Bonus: 1579 sq/ft
First Floor: 2638 sq/ft
Garage: 550 sq/ft
Storage: 52 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 9'
Roof
Primary Pitch : 9:12
Roof Framing : 2x8 Framing
Roof Type : Shingle
Secondary Pitch : 10:12
Exterior Wall Framing
Exterior Wall Finish : Brick/stucco
Framing : 2"x4"
Bedroom Features
Main Floor Bedrooms
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Hobby Rec Room Game Room
Play Flex Room
Storage Area
Unfinished Future Space
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

Bathroom 2:

47 sq/ft width 9' 6" x depth 5'

Bathroom 3:

47 sq/ft width 9' 6" x depth 5'

Bedroom 2:

147 sq/ft width 13' 5" x depth 11'

Bedroom 2 Closet:

119 sq/ft width 5' 8" x depth 21'

Bedroom 3:

154 sq/ft width 13' 5" x depth 11' 6"

Bedroom 3 Closet:

11 sq/ft width 5' 6" x depth 2'

Breakfast Room:

127 sq/ft width 12' 6" x depth 10' 2"

Dining Room:

172 sq/ft width 15' x depth 11' 6"

Family Room:

306 sq/ft width 18' x depth 17'

Foyer:

80 sq/ft width 7' x depth 11' 6"

Game Room:

185 sq/ft width 16' 10" x depth 11'

Garage:

509 sq/ft width 23' 6" x depth 21' 8"

Garage Storage:

43 sq/ft width 11' 6" x depth 3' 9"

Kitchen:

191 sq/ft width 12' 9" x depth 15'

Kitchen Island:

4 sq/ft width 2' x depth 2'

Laundry Room:

95 sq/ft width 10' 7" x depth 9'

Master Bathroom:

268 sq/ft width 9' 1" x depth 29' 7"

Master Bedroom:

261 sq/ft width 14' 1" x depth 18' 7"

Master Closet:

27 sq/ft width 9' x depth 3'

Porch - Front:

389 sq/ft width 41' x depth 9' 6"

Porch - Rear:

426 sq/ft width 33' 3" x depth 12' 10"

Powder Room:

28 sq/ft width 8' x depth 3' 6"
