PLAN 1042-5

Architectural House Design - Country Exterior - Rear Elevation Plan #1042-5

Key Specs

2624
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

	Audio Video Design $80.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $31.20 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $80.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $772.00

You save $193.00

(20% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Now Just $17.99 for a Limited Time

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Questions?

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1042-5

Key Specs

2624
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

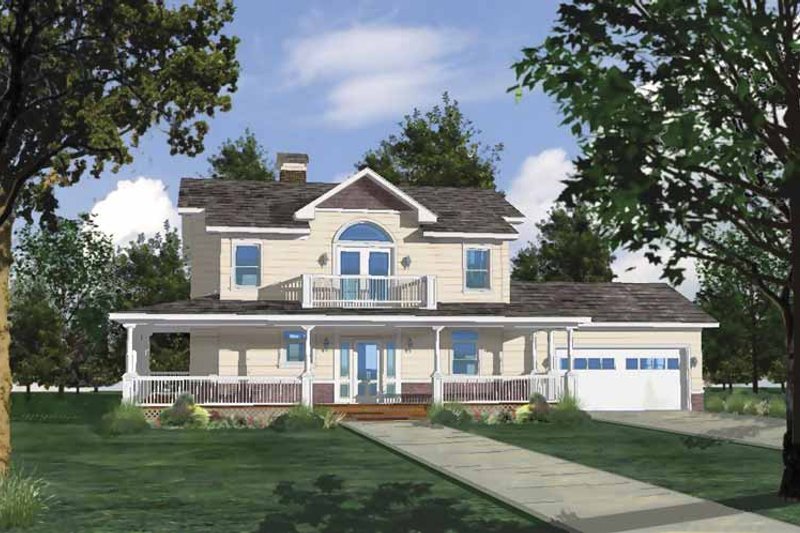

This classic American beauty has the charm of a traditional home coupled with all the modern amenities. A huge wrap around front porch is perfect for indoor/outdoor living. The open floor plan, high ceilings and big windows create a sunny and welcoming main floor – ideal for entertaining. The large kitchen has a spacious pantry, breakfast bar and handy home information station. The dining room features a bay window and leads out onto a big back porch. All the main floor rooms look onto a central three-sided fireplace and built-in entertainment center. A mud room and laundry lead out to the two car garage. Upstairs, a generous master bedroom features a beautiful reading nook, a fireplace, built-in entertainment wall, a large walk-in closet, and a sumptuous five piece master bath with a Jacuzzi tub. Two additional bedrooms have huge closets and share a Jack and Jill bath.

Floor Plans

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 59' 7"
Height : 28' 2"
Width : 67' 7"

Area

Basement Unfinished: 1312 sq/ft
First Floor: 1312 sq/ft
Garage: 576 sq/ft
Porch: 447 sq/ft
Second Floor: 1312 sq/ft

*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Living Room / Parlor
Upstairs Master Bedrooms

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Open Floor Plan
Unfinished Future Space

Outdoor Spaces

Balcony
Covered Front Porch
Covered Rear Porch
Deck
Wrap Around Porch

Rooms

Coat Closet:

9 sq/ft width 4' 7" x depth 2'

Dining Room:

177 sq/ft width 10' 5" x depth 17'

Family Room:

179 sq/ft width 12' 4" x depth 14' 7"

Front Entry:

41 sq/ft width 6' 1" x depth 6' 9"

Garage:

554 sq/ft width 23' 8" x depth 23' 5"

Kitchen:

179 sq/ft width 12' 4" x depth 14' 7"

Laundry Room:

84 sq/ft width 11' 2" x depth 7' 7"

Linen Closet:

2 sq/ft width 2' 1" x depth 1' 3"

Living Room:

246 sq/ft width 20' 7" x depth 12'

Master Bathroom:

154 sq/ft width 14' 8" x depth 10' 6"

Master Bedroom:

330 sq/ft width 22' 8" x depth 14' 7"

Master Closet:

72 sq/ft width 12' x depth 6'

Powder Room:

21 sq/ft width 4' 7" x depth 4' 7"

Storage Closet:

14 sq/ft width 7' x depth 2'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
