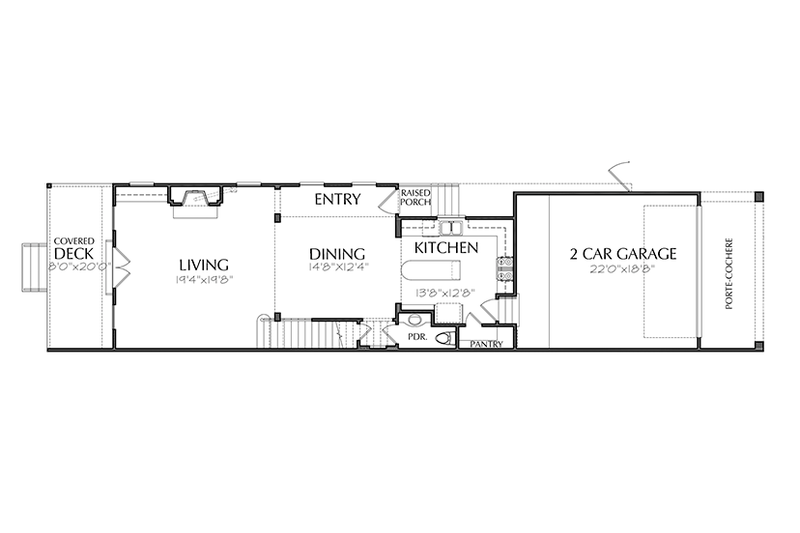

Architectural House Design - Traditional Floor Plan - Main Floor Plan #1021-18

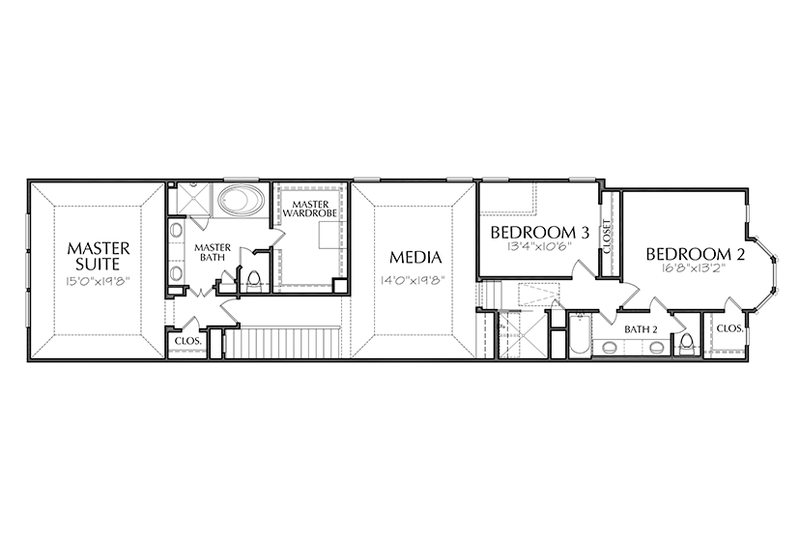

Architectural House Design - Traditional Floor Plan - Upper Floor Plan #1021-18

Key Specs

2569
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

	Audio Video Design $90.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $35.10 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $90.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1350.00

You save $150.00

(10% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1021-18

Key Specs

2569
sq ft

3
Beds

2.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Here's an outstanding layout for a narrow, long lot. The front-facing garage leads directly into the kitchen for easy unloading of groceries into the walk-in pantry. Nearby, the open dining room flows into the living room, where a fireplace adds ambiance and double doors open to the deck for seamless indoor/outdoor entertaining. Upstairs, a media room buffers the deluxe master suite (complete with a huge closet and upscale bathroom) from two additional bedrooms and the hall bath that they share. A bay window offers an elegant nook for reading or playing in bedroom 2.

Floor Plans

Floor Plan - Main Floor

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 87'
Height : 33' 1"
Width : 20' 4"

Area

First Floor: 932 sq/ft height 11'
Garage: 440 sq/ft
Second Floor: 1637 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12
Roof Framing : Truss
Roof Type : Composition
Secondary Pitch : 4:12

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x4

Bedroom Features

Fireplace
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet

Kitchen Features

Kitchen Island
Walk In Pantry Cabinet Pantry

Additional Room Features

Media Room
Open Floor Plan
Upstairs Laundry

Garage Features

Carport Porte Cochere
Front Entry Garage

Outdoor Spaces

Covered Rear Porch
Deck

Rooms

Bedroom 2:

219 sq/ft width 16' 8" x depth 13' 2"

Bedroom 3:

140 sq/ft width 13' 4" x depth 10' 6"

Covered Rear Deck:

160 sq/ft width 8' x depth 20'

Dining Room:

181 sq/ft width 14' 8" x depth 12' 4"

Garage:

440 sq/ft width 22' x depth 18' 8"

Kitchen:

173 sq/ft width 13' 8" x depth 12' 8"

Living Room:

380 sq/ft width 19' 4" x depth 19' 8"

Master Suite:

295 sq/ft width 15' x depth 19' 8"

Media:

275 sq/ft width 14' x depth 19' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $1350.00	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $1800.00	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4

Additional Options

Audio Video Design : $90.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $35.10	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $90.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
