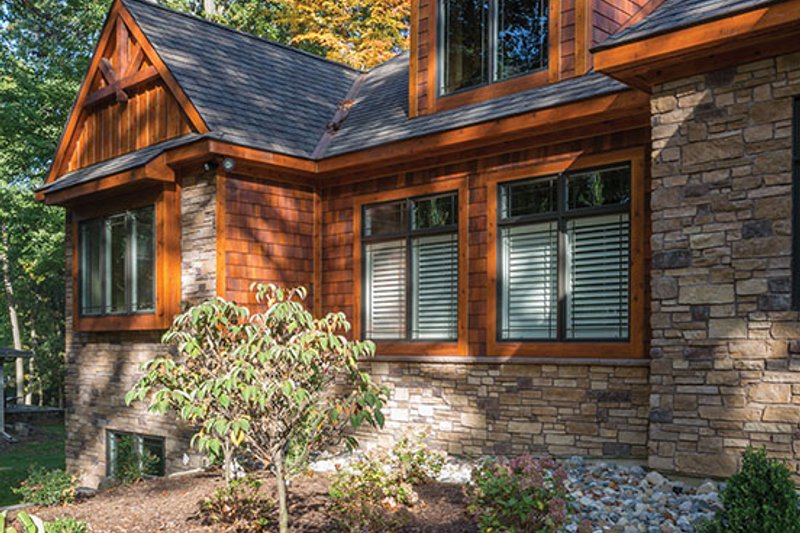

Architectural House Design - Craftsman Exterior - Front Elevation Plan #1057-1

Architectural House Design - Craftsman Exterior - Other Elevation Plan #1057-1

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #1057-1

Home / Style / Craftsman

Key Specs

3554
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

Right-Reading Reverse

$320.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design

$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

NOW $1440.00

You save $360.00 (20% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Wow! Cost to Build Reports Only $3.99 with Code NOVCTB (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon - Fri 8:30 - 8:30 (EDT)

See our Terms & Conditions and Privacy Policy.

PLAN 1057-1

Home / Style / Craftsman

Key Specs

3554
sq ft

3
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Now that's a great room! The main gathering space in this beautiful home offers an unusually large amount of room for entertaining, with the kitchen and dining room completely open to it for terrific flow. Decorative ceiling treatments adorn nearly every room, especially the light-filled master suite (don't miss the huge walk-in closets and deluxe bathroom in here). Two more bedrooms reside on the opposite side of the home, along with the impressive laundry room. The three-season porch provides a cozy fireplace in back. Photo Courtesy of Glen-Gery Corporation, Landmark Stone.

Floor Plans

Floor Plan - Other Floor

Reverse

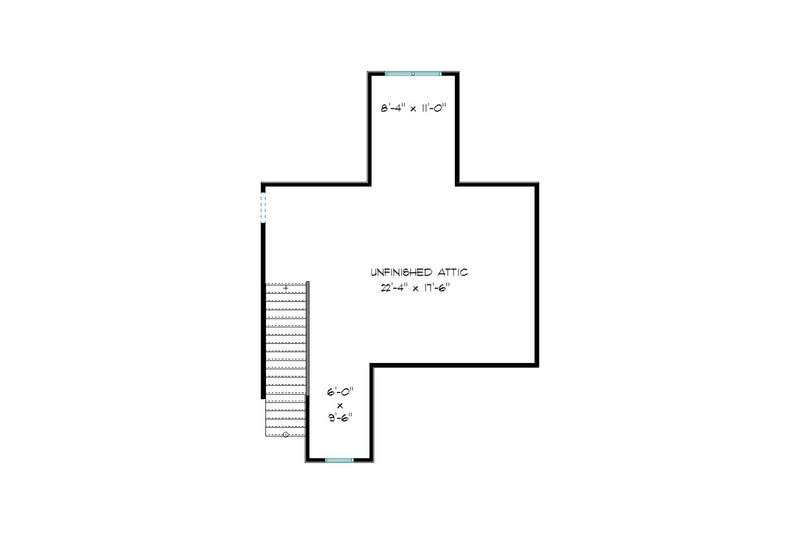

Architectural House Design - Craftsman Floor Plan - Other Floor Plan #1057-1

BUILDER Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Reverse

Architectural House Design - Craftsman Floor Plan - Main Floor Plan #1057-1

Floor Plan - Other Floor

Reverse

Full Specs & Features

Dimension

Depth : 66'

Height : 28' 4"

Width : 106' 8"

Area

Attic: 582 sq/ft height 10'

Basement Unfinished: 3554 sq/ft

First Floor: 3554 sq/ft height 10'

Garage: 1450 sq/ft height 10'

Porch: 110 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 9:12

Roof Framing : Combination Truss/Conventional

Roof Type : Asphalt

Secondary Pitch : 9:12

Exterior Wall Framing

Exterior Wall Finish : Stone

Framing : Wood - 2x6

Bedroom Features

Fireplace

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Kitchen Island

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Sunroom

Workshop

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Screened Porch

Rooms

Bedroom 2:

width 12' x depth 14'

Bedroom 3:

width 12' x depth 14'

Den:

width 14' x depth 12' 6"

Dining:

width 16' 4" x depth 12'

Foyer:

width 11' 4" x depth 10' 6"

Garage:

1450 sq/ft width 30' 4" x depth 44'

Great Room:

width 20' 2" x depth 35'

Kitchen:

width 12' x depth 15' 8"

Laundry:

width 9' x depth 12'

Master Bedroom:

width 14' x depth 18' 8"

Porch Rear:

width 15' 4" x depth 15' 8"

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1440.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Set:
$1600.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$320.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$320.00

Ideal for level lot, single layer concrete poured directly on grade.

Walk Out Basement:
$320.00

Ideal for a sloping lot, lower level with outdoor access.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse:
$320.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$80.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$31.20

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
