PLAN 20-342

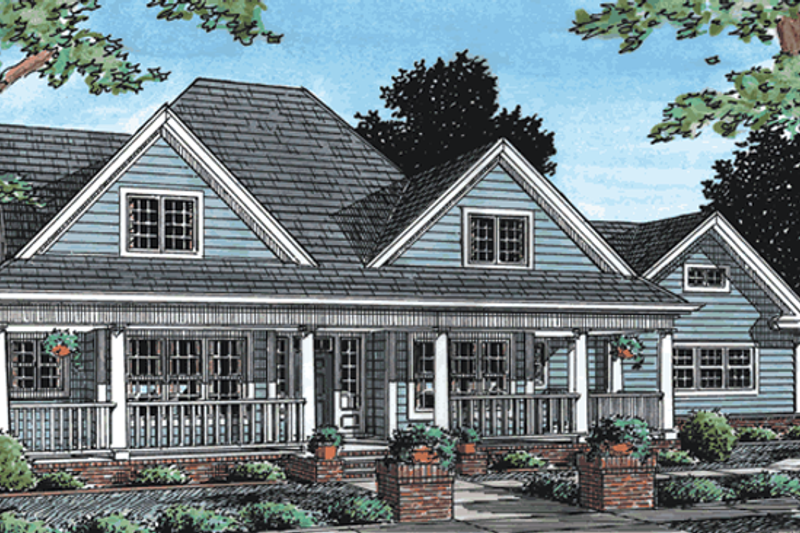

Farmhouse Exterior - Front Elevation Plan #20-342

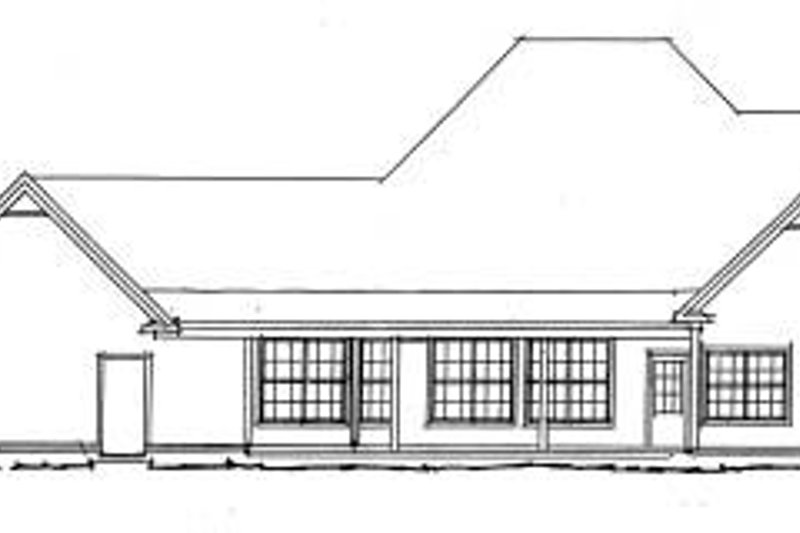

Farmhouse Exterior - Rear Elevation Plan #20-342

Select Plan Set Options

What's included?
Subtotal
$1055.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 20-342

Key Specs


2546
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Floor Plans

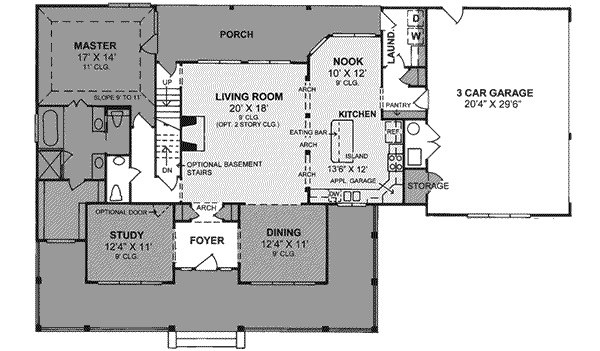

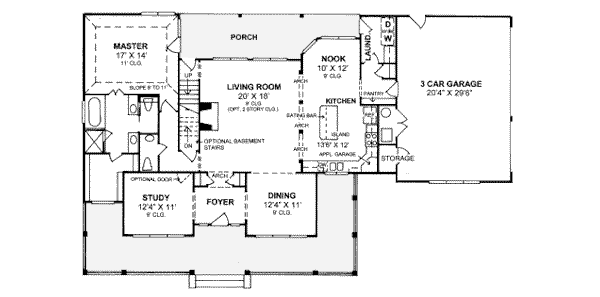

Floor Plan - Main Floor Plan
Reverse
Save

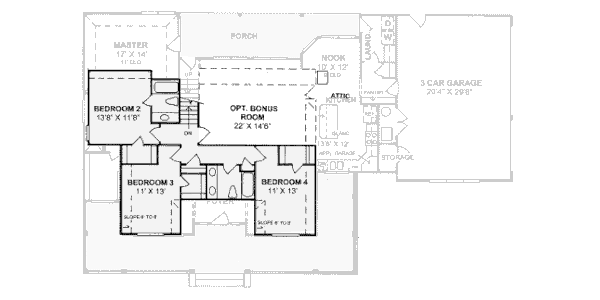

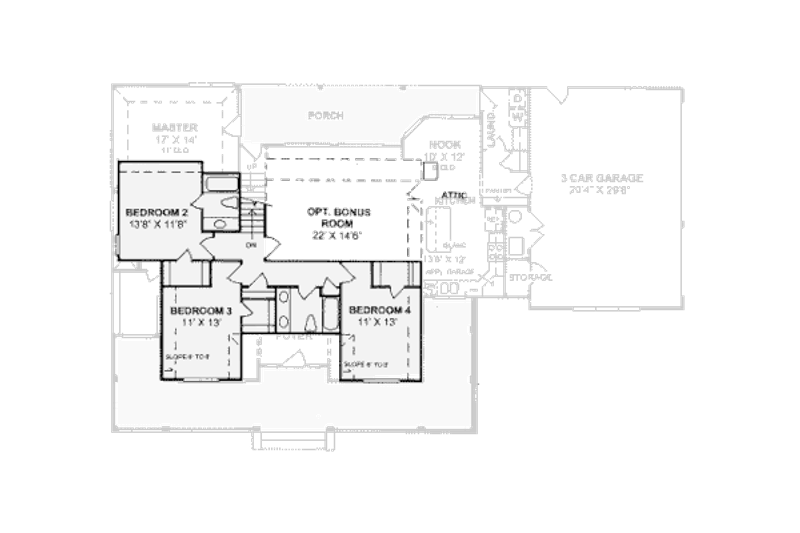

Floor Plan - Upper Floor Plan
Reverse
Save

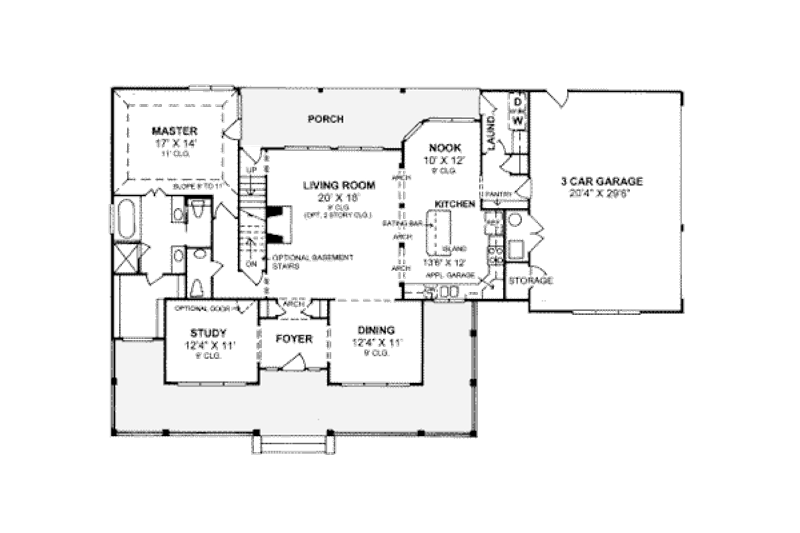

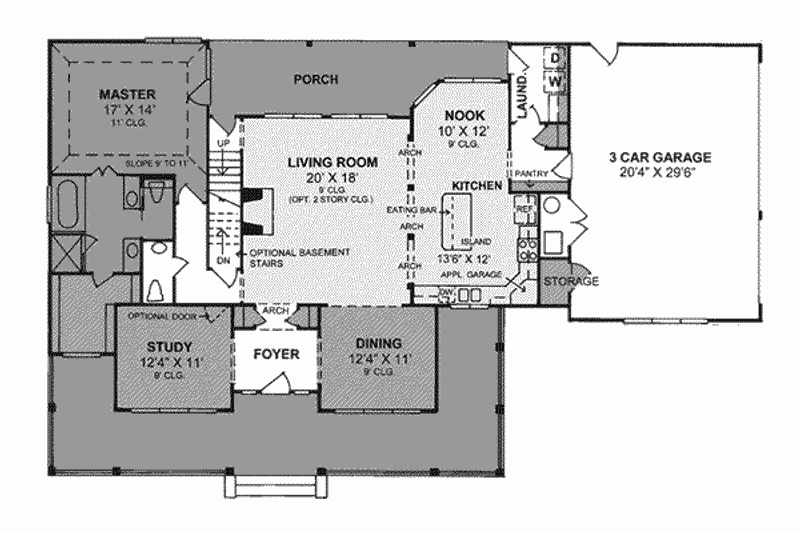

Floor Plan - Main Floor Plan
Reverse
Save

Full Specs & Features


Dimension
Depth : 47'
Height : 31'
Width : 77'
Area
Basement Unfinished: 2546 sq/ft
Bonus: 319 sq/ft
First Floor: 1762 sq/ft height 9'
Garage: 672 sq/ft
Second Floor: 784 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Play Flex Room
Unfinished Future Space
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For View Lot
Outdoor Spaces
Covered Rear Porch
Wrap Around Porch
More
Jack & Jill Bath
Rooms

Bathroom 2:

21 sq/ft width 3' 2" x depth 6' 8"

Bathroom 3:

40 sq/ft width 5' x depth 8'

Bathroom 4:

53 sq/ft width 8' 6" x depth 6' 4"

Bedroom 2:

159 sq/ft width 13' 8" x depth 11' 8"

Bedroom 3:

143 sq/ft width 11' x depth 13'

Bedroom 4:

143 sq/ft width 11' x depth 13'

Bonus Room - Unfinished:

319 sq/ft width 22' x depth 14' 6"

Dining Room:

135 sq/ft width 12' 4" x depth 11'

Foyer:

58 sq/ft width 9' x depth 6' 6"

Garage:

599 sq/ft width 20' 4" x depth 29' 6"

Kitchen:

162 sq/ft width 13' 6" x depth 12'

Kitchen Island:

18 sq/ft width 3' x depth 6'

Living Room:

360 sq/ft width 20' x depth 18'

Master Bathroom:

134 sq/ft width 13' x depth 10' 4"

Master Bedroom:

238 sq/ft width 17' x depth 14'

Master Closet:

55 sq/ft width 6' 8" x depth 8' 4"

Nook:

120 sq/ft width 10' x depth 12'

Study:

135 sq/ft width 12' 4" x depth 11'

Utility Room:

48 sq/ft width 6' x depth 8'

What's Included In This Plan Set


  • Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
  • Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
  • Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.
  • Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
  • Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
  • Interior Elevations: Kitchen cabinet elevations are drawn.
  • Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
$1055.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
$1350.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Basement:
$195.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$195.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$195.00
Wood 2x6

Additional Options

Right-Reading Reverse :
$195.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
