PLAN 513-2059
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 49'
Height : 29'
Width : 69'
Area
Bonus: 426 sq/ft
First Floor: 1890 sq/ft
Garage: 710 sq/ft
Second Floor: 626 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Roof Trusses
Roof Load : 30/20
Roof Type : Roof Trusses
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : 2"x4"
Bedroom Features
Main Floor Master Bedroom
Upstairs Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Eating Bar
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Unfinished Future Space
Garage Features
Side Entry Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 1:
204 sq/ft width 17' x depth 12'
Bedroom 2:
168 sq/ft width 12' x depth 14'
Bedroom 3:
168 sq/ft width 12' x depth 14'
Bonus Room - Finished:
375 sq/ft width 21' 8" x depth 17' 4"
Dining Room:
168 sq/ft width 12' x depth 14'
Foyer:
85 sq/ft width 17' x depth 5'
Garage:
660 sq/ft width 21' 8" x depth 30' 6"
Kitchen:
162 sq/ft width 12' x depth 13' 6"
Master Bathroom:
129 sq/ft width 9' 6" x depth 13' 8"
Master Closet:
33 sq/ft width 6' 8" x depth 5'
Master Closet Two:
28 sq/ft width 4' 8" x depth 6'
Nook:
140 sq/ft width 12' x depth 11' 8"
Study:
168 sq/ft width 12' x depth 14'
Utility Room:
50 sq/ft width 8' x depth 6' 4"
What's Included In This Plan Set
- Cover Page: Each home plan features the front elevation and informative reference sections including general notes and design criteria.
- Elevations: Drafted at ¼" scale for the front and 1/8" scale for the rear and sides. All elevations are detailed and an aerial view of the roof is provided, showing all hips, valleys, ridges and framing.
- Foundations: Drafted at ¼" - 1' scale. This plan is designed as a slab foundation. Optional basement or crawl space foundations are available. Basement foundations may require additional engineering for steel beam sizes.

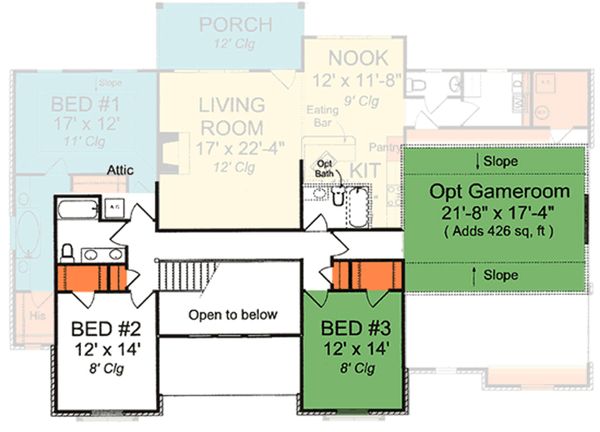

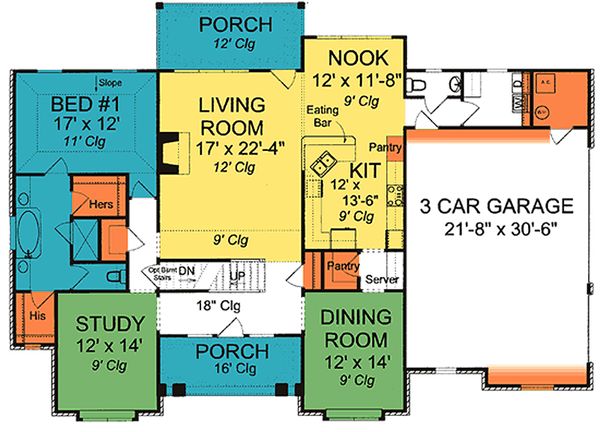

- Main Level Floor Plan: Drafted at ¼" scale. 2" x 4" walls are standard. The detailed drawings include such things as ceiling treatments and header locations.
- Second Level Floor Plan: Drafted at ¼" scale. Drafted to the same degree of detail as the main level floor plan.
- Interior Elevations: Kitchen cabinet elevations are drawn.
- Electrical and Sections: The electrical plan shows suggested electrical layout for the main and second level floor plans. Typical wall, stair, brick sections are provided to further explain construction of these areas.
Plan Set
$1055.00
$1350.00
Foundation
$0.00
$195.00
$195.00
Framing
$0.00
$195.00
Additional Options
$195.00
$165.00
$295.00
$39.00
$165.00
