PLAN 126-274
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
This contemporary style narrow lot duplex plan fits everything a family needs into a compact floorplan and has great curb appeal with an exterior that will fit into both traditional and modern neighborhoods. This micro semi-detached home features 1221 sq.ft. of living space per unit, with 3 bedrooms, 2 1/2 bathrooms, and open living area, and a front and back duplex design. The width of the building is 20’-0” wide at the foundation and main floor levels, and 21’-0” at the second floor level where the bathroom is cantilevered. The total combined main floor living area is 1176 sq.ft. and the total combined second floor living area is 1266 sq.ft.
Floor Plans

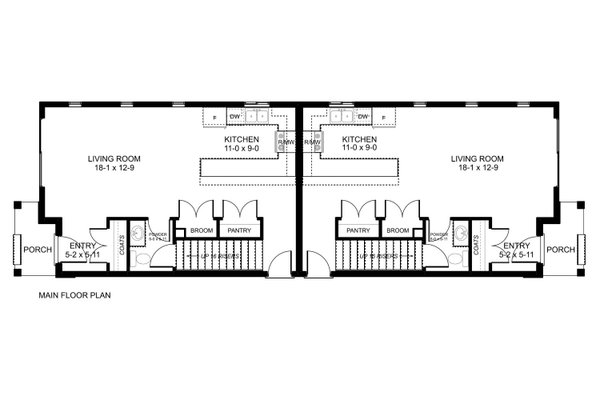

Floor Plan - Main Floor

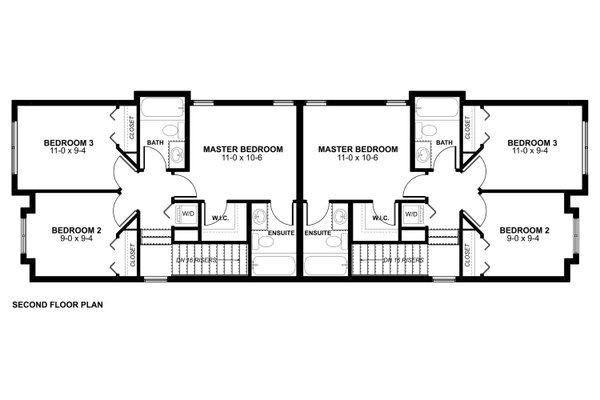

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 66'
Height : 23' 6"
Width : 20'
Area
Main Floor : 588 sq/ft
Upper Floor : 633 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 4:12
Roof Framing : Truss
Roof Load : 50
Roof Type : Asphalt Shingles
Secondary Pitch : 2.5:12
Exterior Wall Framing
Exterior Wall Finish : Stucco, Brick Veneer, Horizontal Siding
Framing : 2x6
Insulation : Batt
Bedroom Features
Upstairs Bedrooms
Upstairs Master Bedrooms
Additional Room Features
Upstairs Laundry
Lot Characteristics
Suited For Narrow Lot
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Cover Sheet: Designer contact info, plan name/number, legal disclaimers.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Building Section(s): Shows the relationship between different levels, wall heights, and the overall building volume. May include details like foundation, framing, insulation, and finishes.
- Electrical Plan(s): Including lighting fixture placement
- Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
