Key Specs
2422
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 23-2557
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 56'
Height : 30' 1"
Width : 40'
Area
Bonus: 314 sq/ft

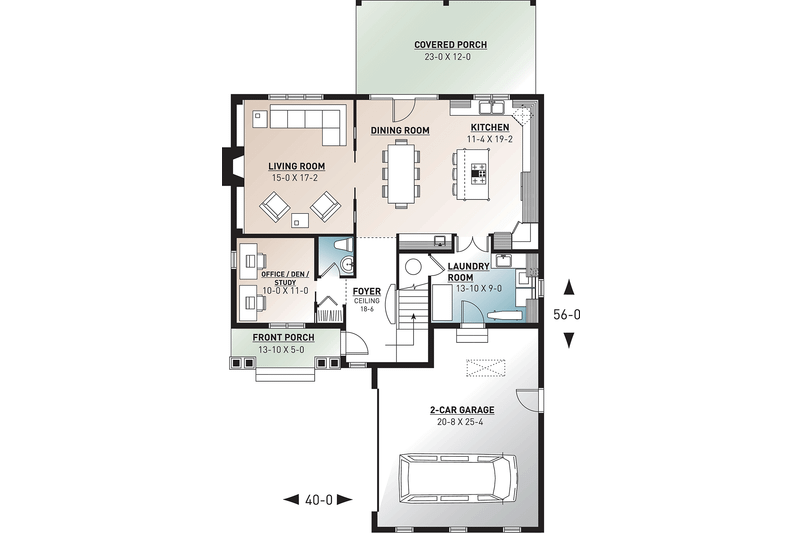

First Floor: 1259 sq/ft height 9'
Garage: 533 sq/ft
Second Floor: 1163 sq/ft height 8'
Roof
Primary Pitch : 0:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Additional Room Features
Den Office Study Computer

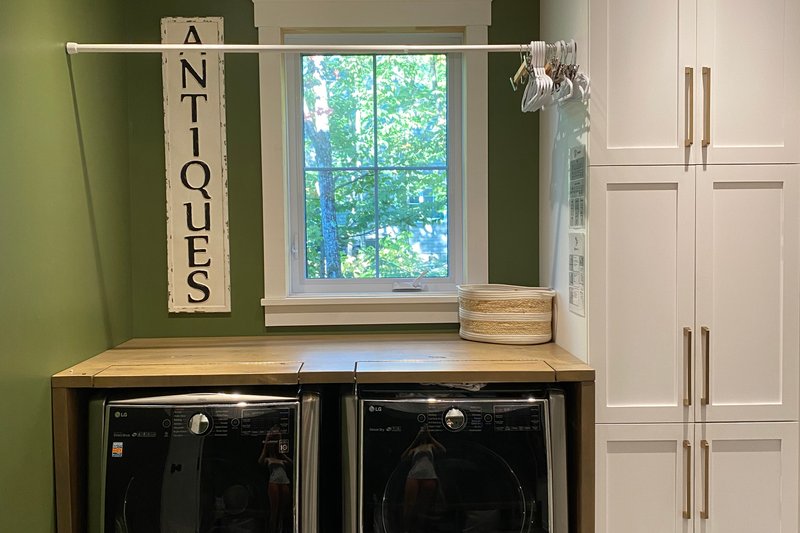

Main Floor Laundry
Unfinished Future Space
Outdoor Spaces
Covered Front Porch
Deck
Rooms

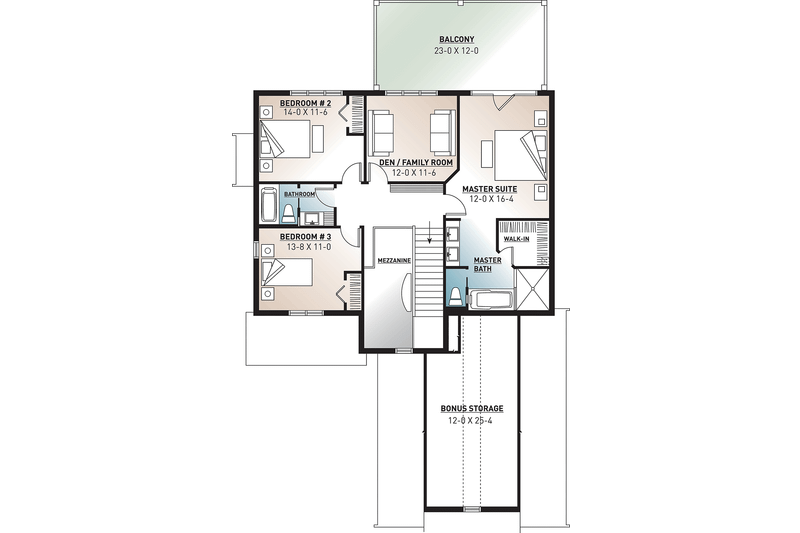

Bedroom 2:
161 sq/ft width 14' x depth 11' 6"
Bedroom 3:
161 sq/ft width 14' x depth 11' 6"
Bonus Room - Unfinished:
315 sq/ft width 12' x depth 26' 4"
Deck:
276 sq/ft width 23' x depth 12'
Deck:
276 sq/ft width 23' x depth 12'

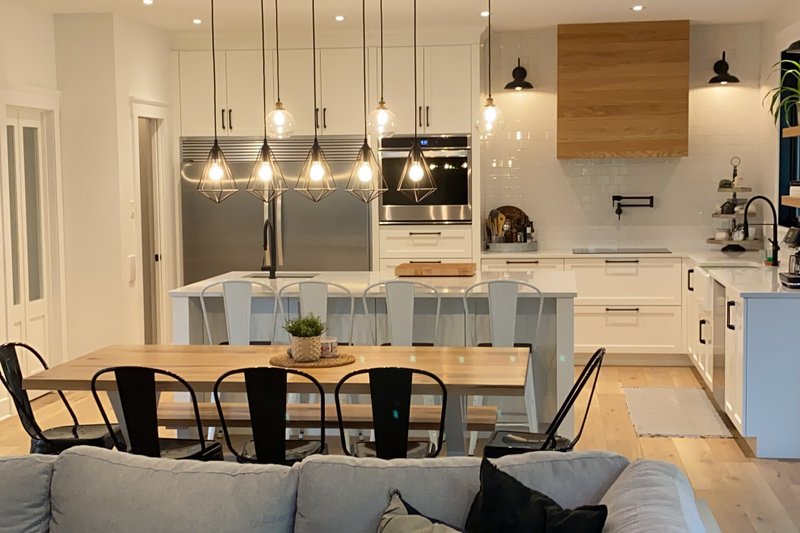

Dining Room:
206 sq/ft width 12' x depth 17' 2"

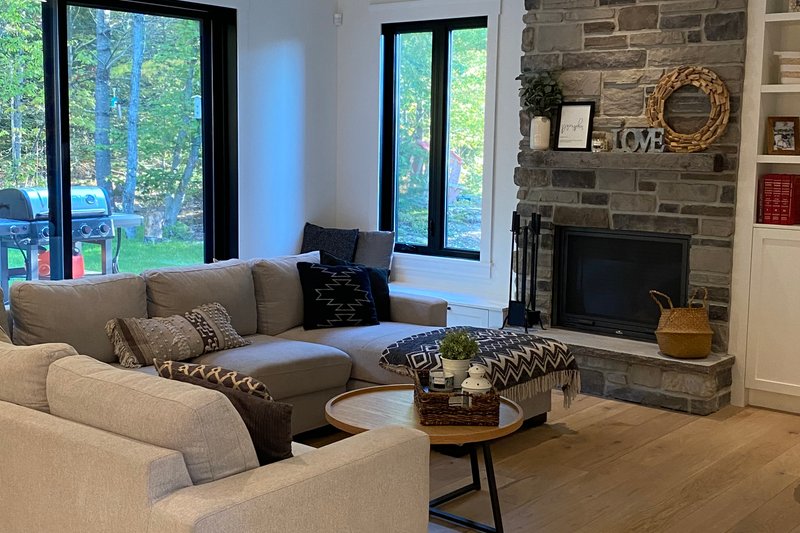

Family Room:
138 sq/ft width 12' x depth 11' 6"
Garage:
523 sq/ft width 20' 8" x depth 25' 4"
Home Office:
110 sq/ft width 10' x depth 11'

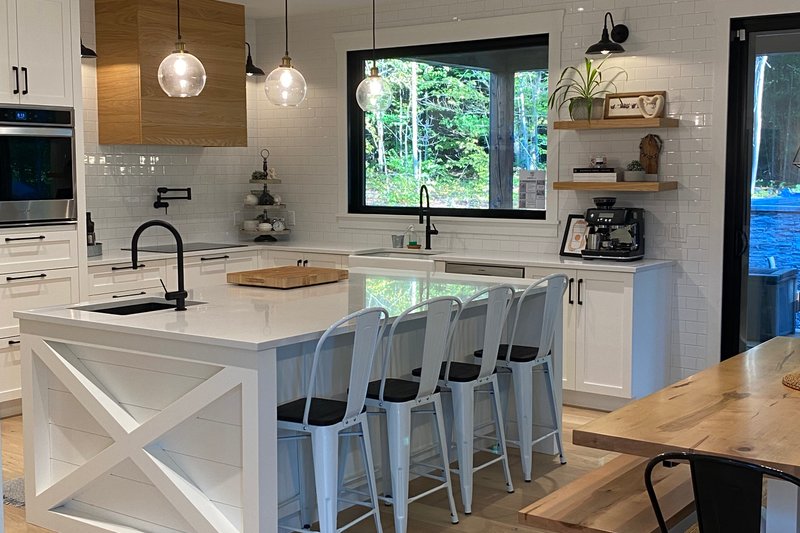

Kitchen:
217 sq/ft width 11' 4" x depth 19' 2"
Living Room:
257 sq/ft width 15' x depth 17' 2"
Master Bedroom:
195 sq/ft width 12' x depth 16' 4"
What's Included In This Plan Set
This plan set typically contains:

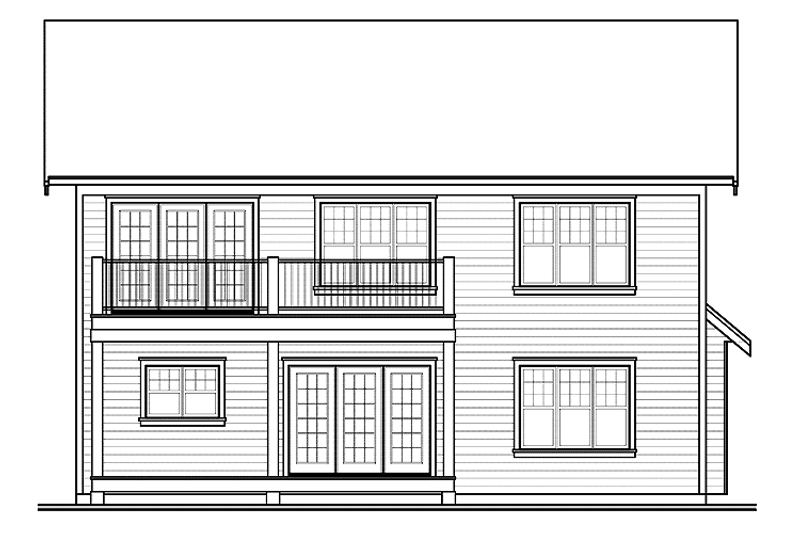

Exterior Elevations (front, rear, left & right sides) typically include:
- Floor and ceiling heights
- Dimensions of standard windows
- Dimensions of roof overhangs
- Location of all needed flashings (mention of “typical” in most cases)
- Height and location of foundation indicated in dashed lines
- Type of finishing and textures (we write siding, horizontal or vertical but not the company)
- Dimension and height of chimney (dimensions yes but the height is determined by the local building code)
- All exterior and interior dimensions
- Thickness of foundation walls (if variable)
- All the structures needed to hold the first level, columns with load applications, beam sizes, variations in floor joists and their exact location. (The load application is not present. Same for the beam, we mention they are but not the size because this can be changed as per manufacturer)
- Location of stairwell
- Location and sizes of windows
- Location and dimensions of footings (where applicable and required)
- All interior and exterior dimensions (included but not as a schedule)
- Location and sizes of doors and windows
- Indication of the structure above (second floor or roof)
- Indication of details that are available on other pages
- Location of all the different trusses needed
- The general overcharge of the roof compared to the floor footprint underneath
- All the different floor and ceiling heights
- Dimensions and design of trusses
- Dimensions and details of overhand
- Roof pitch on all truss sections
- Roof sections
- Sections of concrete wall with wood connection
- Section of walls with particulars called out
- Section of concrete porch and connection with wood frame
- Foundation particulars in the garage entrance
- Components of certain types of walls (ex: between garage and living quarters)
- All the details and components needed in the construction of a house, including window section in a typical wall, connection between floor and exterior wall with their components, type of beam used.
- Note: This plan does not include HVAC, electrical and plumbing.
Plan Set
$1715.00
$1850.00
$2715.00
Foundation
$0.00
$395.00
$395.00
$395.00
Framing
$0.00
Additional Options
$225.00
$65.00
$165.00
$295.00
$39.00
$165.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
