15% OFF THIS PLAN TODAY

PLAN 417-747

Photographs may show modified designs.

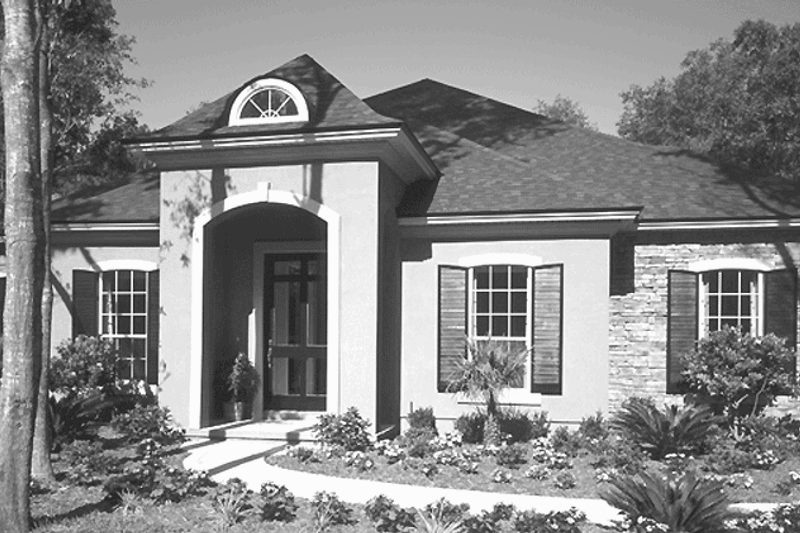

Architectural House Design - Mediterranean Exterior - Front Elevation Plan #417-747

Architectural House Design - Mediterranean Exterior - Rear Elevation Plan #417-747

Architectural House Design - Mediterranean Interior - Dining Room Plan #417-747

Architectural House Design - Mediterranean Interior - Kitchen Plan #417-747

Architectural House Design - Mediterranean Interior - Family Room Plan #417-747

Architectural House Design - Mediterranean Floor Plan - Main Floor Plan #417-747

Architectural House Design - Mediterranean Floor Plan - Upper Floor Plan #417-747

Jump to:
All (11)
Exterior (6)
Interior (3)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

2293
sq ft

3
Beds

3
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Additional Construction Sets$42.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$85.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$85.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Material List	$72.25
	A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
	Mirror Reversed Sets$25.50 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $892.50

You save $157.50 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 417-747

Home > Style > Mediterranean

Key Specs

2293
sq ft

3
Beds

3
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Multiple rooflines, shutters and a charming vaulted entry lend interest and depth to the exterior of this well-designed three-bedroom home. Inside, double doors to the left open to a cozy den. The dining room, open to the family room and foyer, features a stunning ceiling design. A fireplace and patio access and view adorn the family room. Two family bedrooms share a double-sink bathroom to the right, and the master bedroom resides to the left. Note the private patio access, two walk-in closets and luxurious bath that ensure a restful retreat for the homeowner.

Floor Plans

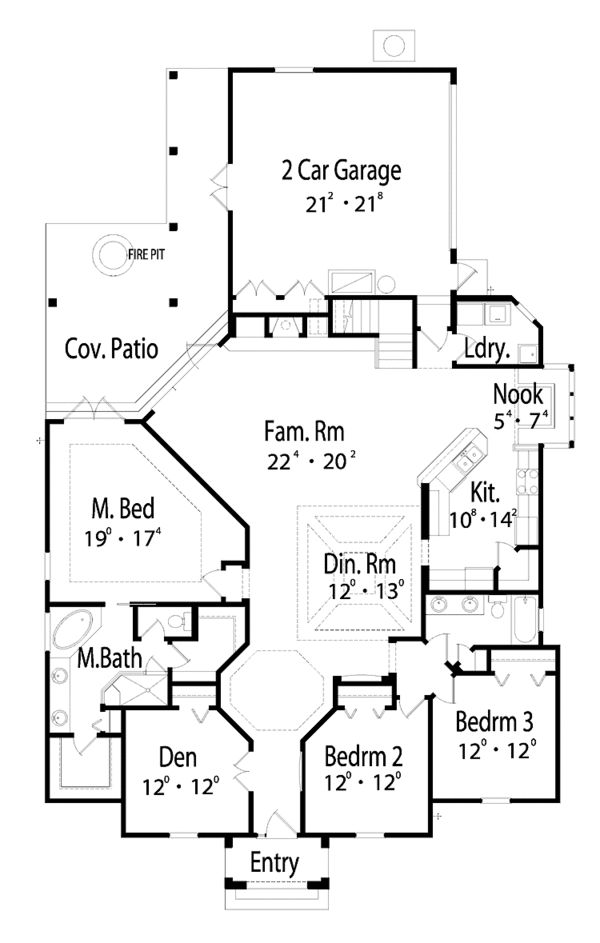

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

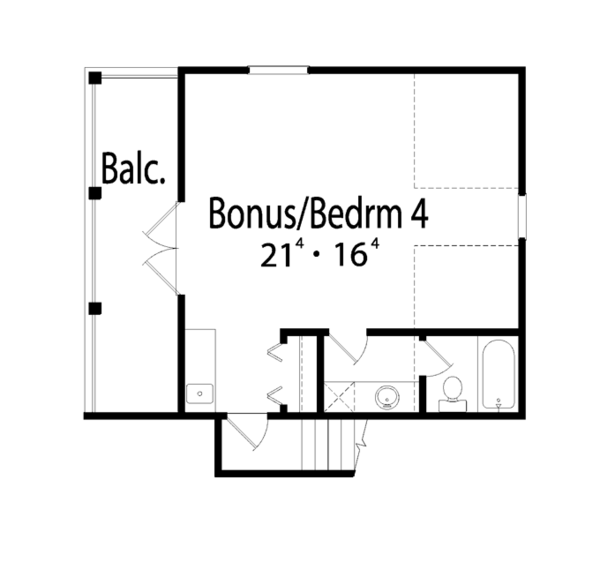

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 79' 4"

Height : 26'

Width : 51'

Area

Bonus: 509 sq/ft

First Floor: 2293 sq/ft height 10'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Truss

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Stone/Stucco

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Main Floor Master Bedroom

Split Bedrooms

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Den Office Study Computer

Family Room Keeping Room

Great Room Living Room

Loft

Main Floor Laundry

Open Floor Plan

Unfinished Future Space

Garage Features

Side Entry Garage

Outdoor Spaces

Balcony

Courtyard

Outdoor Fireplace

Rooms

3rd BR Closet:

12 sq/ft width 6' x depth 2'

Bathroom 2:

88 sq/ft width 12' 8" x depth 7'

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 2 Closet:

8 sq/ft width 4' 4" x depth 2'

Bedroom 3:

144 sq/ft width 12' x depth 12'

Bedroom 3 Closet:

8 sq/ft width 4' 4" x depth 2'

Bedroom 4 Closet:

13 sq/ft width 6' 4" x depth 2' 2"

Breakfast Room:

39 sq/ft width 5' 4" x depth 7' 4"

Den/Office or Bedroom 1:

144 sq/ft width 12' x depth 12'

Garage:

458 sq/ft width 21' 2" x depth 21' 8"

Kitchen:

147 sq/ft width 10' 5" x depth 14' 2"

Laundry Room:

53 sq/ft width 8' x depth 6' 8"

Master Bathroom:

245 sq/ft width 12' 8" x depth 19' 5"

Master Bedroom:

329 sq/ft width 19' x depth 17' 4"

Master Closet:

42 sq/ft width 7' x depth 6'

Master Closet Two:

42 sq/ft width 7' x depth 6'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: This page shows all necessary notations and dimensions including support columns, walls, and excavated/unexcavated areas.
Exterior Elevations: Views of the home from all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, etc.
Cross Section: A slice of the home from roof to foundation, showing important details like stairs and wall construction.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Construction Notes and Details: Shows the builder how things come together, like walls, the chimney, insulation, and more.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$892.50

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$1062.50

5 printed plan sets mailed to you.

5 Copy and PDF Set:
$1190.00

5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Single Build:
$1785.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Study Set:
$510.00

One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Additional Options

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$85.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Material List:
$72.25

A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.

Mirror Reversed Sets:
$25.50

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
