PLAN 569-17

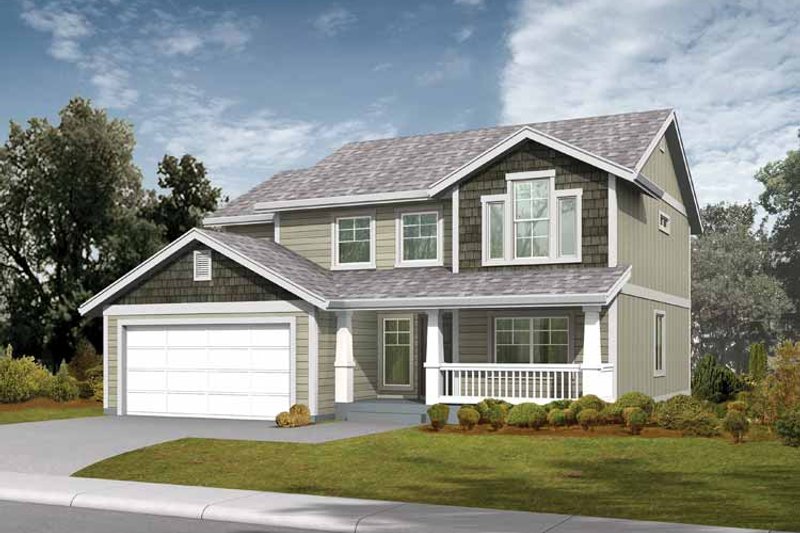

Architectural House Design - Craftsman Exterior - Front Elevation Plan #569-17
Architectural House Design - Craftsman Exterior - Front Elevation Plan #569-17

Key Specs

sq ft





Select Plan Set Options

What's included?
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 569-17

Key Specs

sq ft





This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

Typical of many suburban lots, the property was once larger and less expensive. Zoning requirements and demand are making large lots hard to find. Designed to get as much as possible into each room on a narrow building envelope is what this design has achieved. Blending its traditional exterior siding helps define the horizontal line of home making it appear much larger. The floor plan takes into account the way people actually live.

Full Specs & Features

Depth : 40'
Height : 25' 3"
Width : 40'

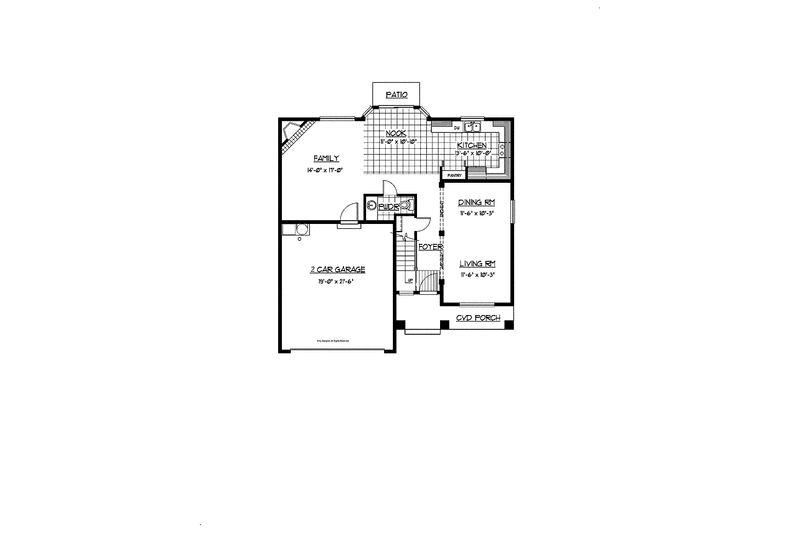

First Floor: 1010 sq/ft height 8'
Garage: 434 sq/ft height 8'
Porch: 150 sq/ft

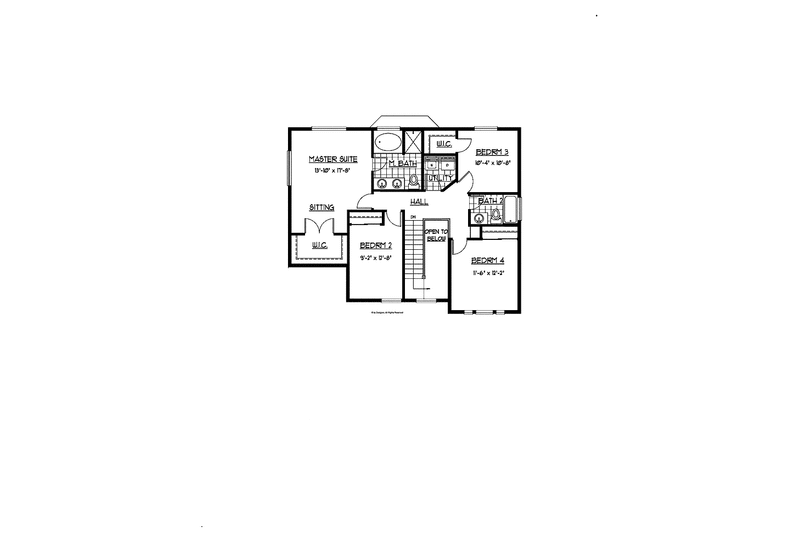

Second Floor: 1061 sq/ft height 8'
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Composition
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Formal Dining Room
Formal Living Room / Parlor
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Master Sitting Area
Upstairs Laundry
Outdoor Spaces
Covered Front Porch

Bedroom 2:

116 sq/ft width 9' 2" x depth 12' 8"

Bedroom 3:

110 sq/ft width 10' 4" x depth 10' 8"

Bedroom 4:

139 sq/ft width 11' 6" x depth 12' 2"

Dining Room:

117 sq/ft width 11' 6" x depth 10' 3"

Family Room:

238 sq/ft width 14' x depth 17'


408 sq/ft width 19' x depth 21' 6"


135 sq/ft width 13' 6" x depth 10'

Living Room:

117 sq/ft width 11' 6" x depth 10' 3"

Master Suite:

244 sq/ft width 13' 10" x depth 17' 8"


119 sq/ft width 11' x depth 10' 10"

What's Included In This Plan Set

All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set :
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.


Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.


Wood 2x6:
Wood 2x6

Additional Options

Audio Video Design :
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
