PLAN 72-128
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 61' 6"
Height : 24'
Width : 47' 6"
Area
Basement Unfinished: 2071 sq/ft
First Floor: 2033 sq/ft height 9'
Roof
Primary Pitch : 7:12
Roof Framing : Combination Truss/Conventional
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x6
Bedroom Features
Split Bedrooms
Walk In Closet
Kitchen Features
Eating Bar
Additional Room Features
Family Room Keeping Room
Lot Characteristics
Suited For Narrow Lot
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bedroom 2:
107 sq/ft width 10' 2" x depth 10' 7"
Bedroom 3:
138 sq/ft width 11' 6" x depth 12' 1"
Dining Room:
204 sq/ft width 12' x depth 17'
Gathering Room:
257 sq/ft width 17' 9" x depth 14' 6"
Kitchen:
213 sq/ft width 17' 9" x depth 12'
Living Room:
255 sq/ft width 18' x depth 14' 2"
Master Bathroom:
102 sq/ft width 9' 9" x depth 10' 6"
Master Bedroom:
216 sq/ft width 13' 3" x depth 16' 4"
Porch - Front:
215 sq/ft width 21' 2" x depth 10' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :

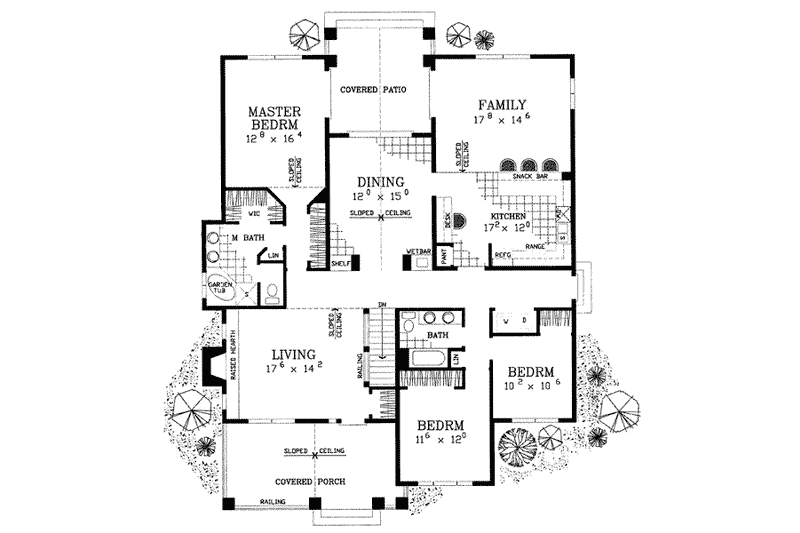

- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

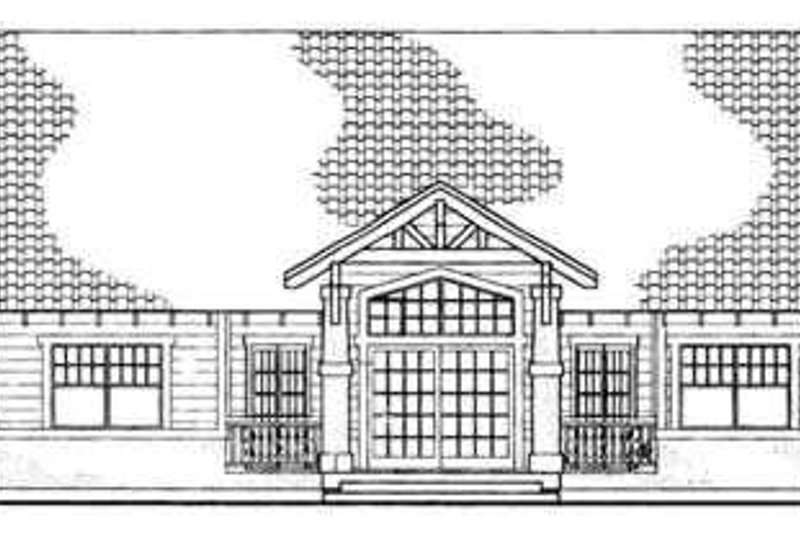

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1013.17
$1130.98
$1248.79
$895.36
Foundation
$0.00
Framing
$0.00
Additional Options
$165.75
$51.00
$420.75
$127.50
$250.75
$33.15
$127.50
$72.25
$0.00
$845.75
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
