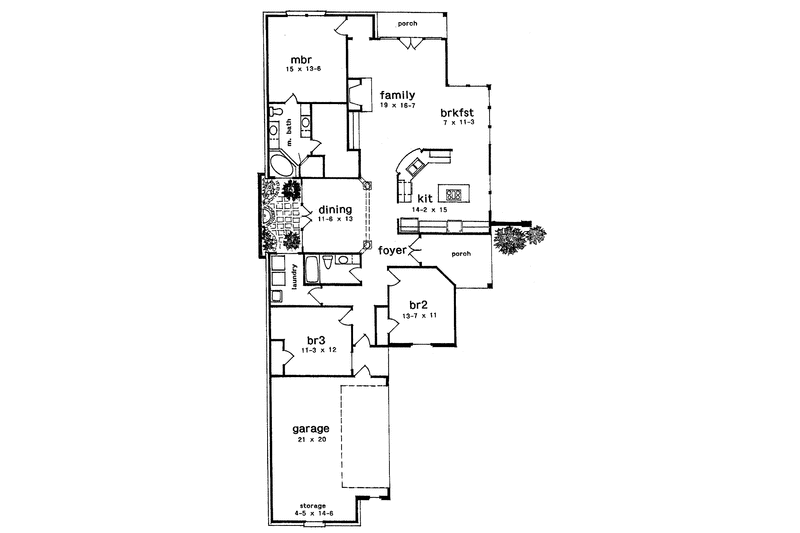

3rd BR Closet:
12 sq/ft width 2' x depth 6'
Bathroom 2:
47 sq/ft width 5' x depth 9' 6"
Bedroom 2:
149 sq/ft width 13' 7" x depth 11'
Bedroom 2 Closet:
13 sq/ft width 2' x depth 6' 6"
Bedroom 3:
135 sq/ft width 11' 3" x depth 12'
Bedroom 3 Closet:
13 sq/ft width 2' x depth 6' 6"
Breakfast Room:
78 sq/ft width 7' x depth 11' 3"
Dining Room:
149 sq/ft width 11' 6" x depth 13'
Foyer:
56 sq/ft width 5' 8" x depth 10'
Garage:
420 sq/ft width 21' x depth 20'
Garage Storage:
64 sq/ft width 4' 5" x depth 14' 6"
Gathering Room:
315 sq/ft width 19' x depth 16' 7"
Kitchen:
212 sq/ft width 14' 2" x depth 15'
Laundry Room:
49 sq/ft width 9' x depth 5' 6"
Master Bathroom:
106 sq/ft width 8' 6" x depth 12' 6"
Master Bedroom:
202 sq/ft width 15' x depth 13' 6"
Master Closet:
70 sq/ft width 12' 6" x depth 5' 8"
Porch - Rear:
51 sq/ft width 4' 5" x depth 11' 8"
All plans are drawn at ¼” scale or larger and include :
5 Copy Set : $945.00 |
5 printed plan sets mailed to you. |
8 Copy Set : $1050.00 |
8 printed plan sets mailed to you. |
Reproducible Set : $1050.00 |
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper. |
Single Set : $735.00 |
One printed set for bidding purposes only. Not a legal building set for construction. |
Slab: $0.00 |
Ideal for level lot, single layer concrete poured directly on grade. |
Wood 2x4: $0.00 |
Wood 2x4 |
Additional Construction Sets : $60.00 |
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date). |
Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
Lighting Design : $100.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
Mirror Reversed Sets : $60.00 |
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
