Key Specs
1953
sq ft
3
Beds
2.5
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 20-312
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans
Full Specs & Features
Dimension
Depth : 38'
Height : 30'
Width : 52'
Area

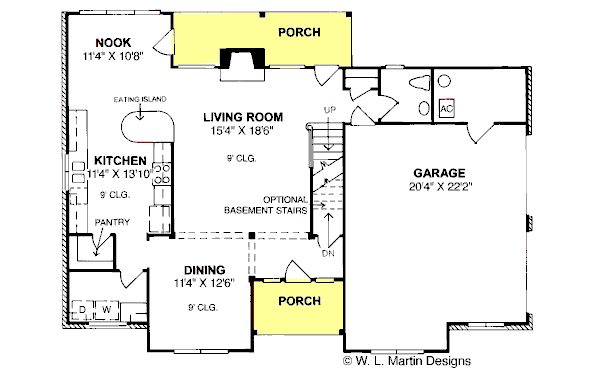

First Floor: 1020 sq/ft height 9'
Garage: 580 sq/ft

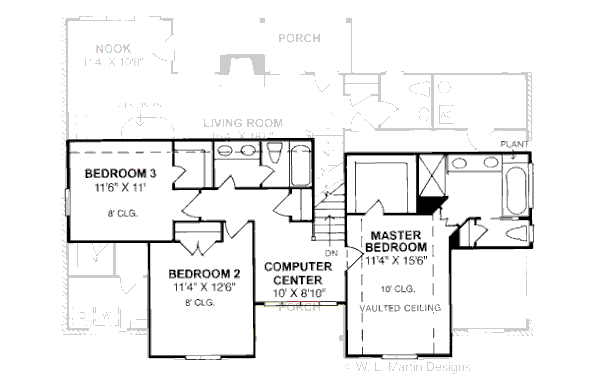

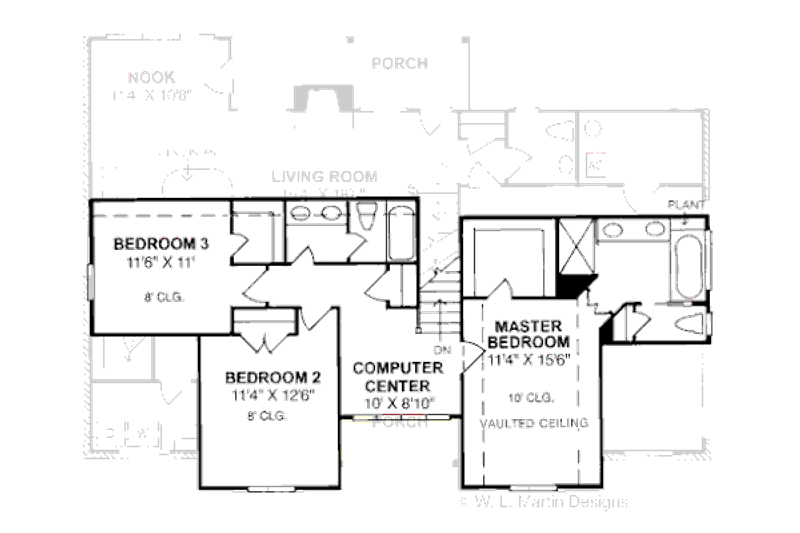

Second Floor: 933 sq/ft
Roof
Primary Pitch : 10:12
Roof Framing : Truss
Roof Type : Shingle
Secondary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Eating Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Storage Area
Garage Features
Oversized Garage
Side Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Front Porch
Wrap Around Porch
Rooms
Bathroom 2:
33 sq/ft width 5' 8" x depth 5' 10"
Bathroom 3:
104 sq/ft width 10' x depth 10' 5"
Bedroom 2:
141 sq/ft width 11' 4" x depth 12' 6"
Bedroom 3:
126 sq/ft width 11' 6" x depth 11'
Computer Room:
88 sq/ft width 10' x depth 8' 10"
Dining Room:
16 sq/ft width 1' 4" x depth 12' 6"
Foyer:
45 sq/ft width 10' x depth 4' 6"
Garage:
450 sq/ft width 20' 4" x depth 22' 2"
Kitchen:
156 sq/ft width 11' 4" x depth 13' 10"
Living Room:
283 sq/ft width 15' 4" x depth 18' 6"
Master Bathroom:
131 sq/ft width 12' 4" x depth 10' 8"
Master Bedroom:
175 sq/ft width 11' 4" x depth 15' 6"
Master Closet:
49 sq/ft width 7' 8" x depth 6' 6"
Nook:
120 sq/ft width 11' 4" x depth 10' 8"
What's Included In This Plan Set
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
- Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Plan Set
$854.25
$1105.00
Foundation
$0.00
$165.75
$165.75
Framing
$0.00
$165.75
Additional Options
$165.75
$140.25
$250.75
$33.15
$140.25
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
