PLAN 45-604

Photographs may show modified designs.

Save
  • Jump to:
  • All (11)
  • Floor plans (2)
Questions? Get Personalized Help
Home  >  Style  >  Craftsman

Key Specs


Plan Sq Ft

1938
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

3
Garages

Select Plan Set Options

What's included?

Additional options

Dropdown arrow

Right-Reading Reverse
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets
$45.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License
$0.00
Allows you to build one more home for each additional license purchased.
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets
$75.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Unlimited Use License
$0.00
Allows you to build this home as many times as you want.
Subtotal
$1000.00
Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Questions about building your home?
Get Personalized Help
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:
Ready for Your Call 7 Days a Week
Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.


Wow!
Cost to Build Reports
Only $1.99 for Black Friday
Use Code CTBBF (limit 1)
Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

PLAN 45-604

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

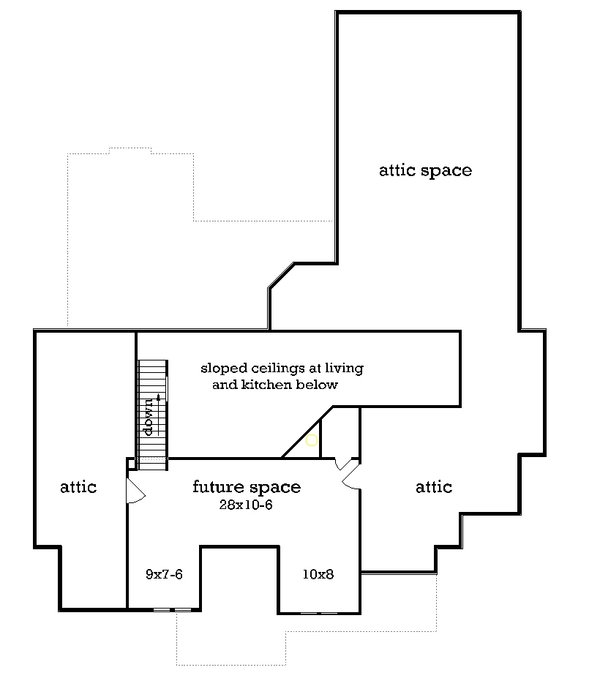

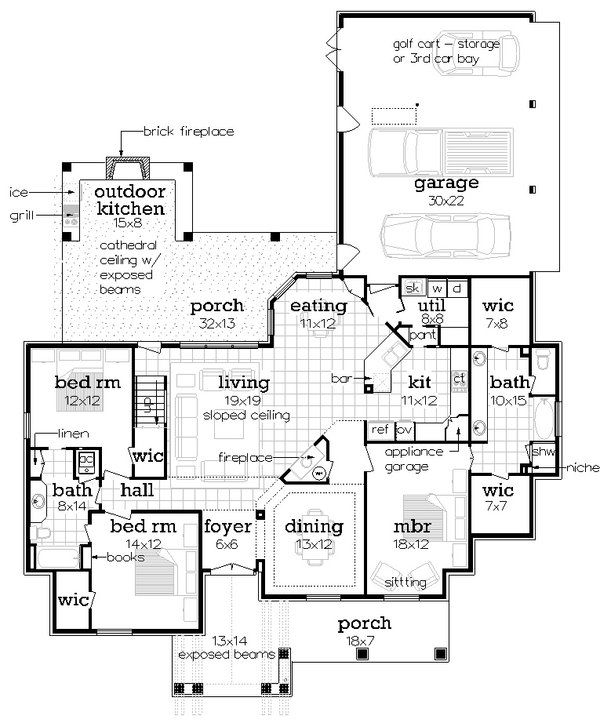

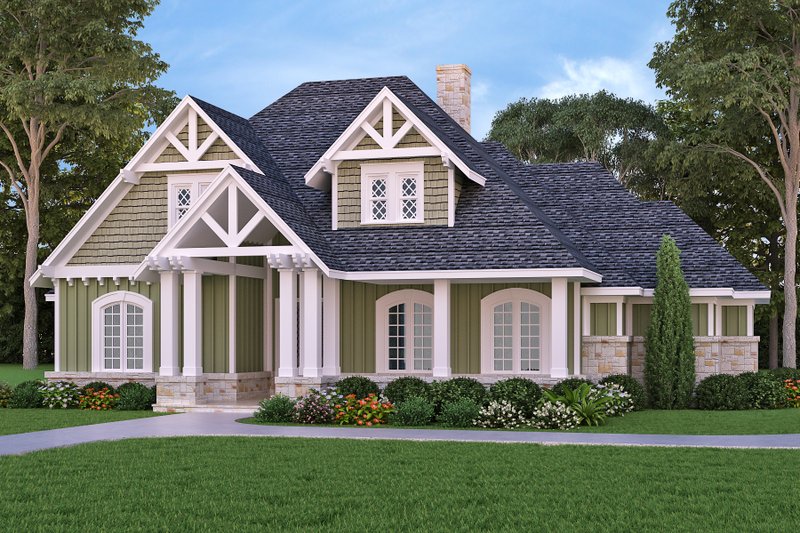

This rustic mountain house plan is modest in size but boasts room sizes found in much larger homes. The living room features a beautiful corner fireplace and spacious sloped ceilings. The front porch and outdoor kitchen have open cathedral ceilings with exposed beams. The front bed rm, foyer, dining and primary bedroom have 10' ceilings for added drama. Typical ceilings are 9' on the main level and 8' on the upper level future space. Living, dining and kitchen are very open but the corner fireplace provides just the right amount of separation. Two secondary bedrooms have private bath access and huge walk-in closets. The primary suite is grand and has a cozy sitting area and a marvelous dual bath. The fully appointed kitchen has sloped ceilings, walk-in pantry with dual access to the full size utility. The rear porch includes an outdoor kitchen and fireplace, perfect for outdoor entertaining. Stairs adjacent to the rear entry ascends to the unfinished upper level future space. A 3 car garage at the rear of the house has side entrance doors and a double door entrance for riding mowers or golf carts.

Full Specs & Features


Dimension

Depth : 78'

Height : 30'

Width : 61'

Area

Bonus : 476 sq/ft

Garage : 664 sq/ft

Main Floor : 1938 sq/ft

Porch : 754 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Bonus Ceiling : 8'

Garage Ceiling : 9'

Main Ceiling : 10'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 12/12

Roof Framing : gable hip combo

Roof Type : stick frame

Exterior Wall Framing

Exterior Wall Finish : stone and vertical siding

Framing : 2x4

Insulation : R11

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Main Floor Laundry

Master Sitting Area

Unfinished Future Space

Garage Features

Oversized Garage

Rear Garage

Side Entry Garage

Entryway

Friend S Entry

Lot Characteristics

Suited For Corner Lot

Suited For View Lot

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Outdoor Kitchen Grill

More

Jack & Jill Bath

What's Included In This Plan Set


  • Information Cover Sheet
  • Foundation Plan: Each plan is designed on a specific type of foundation. Optional foundation types may be offered. Refer to the general information listed with each plan to determine foundation type and options available.
  • Detailed Floor Plans: Complete with the window and door schedules. Electrical plans, with suggested switch, fixture and outlet locations, may be part of the floor plan or a separate drawing.
  • Exterior Views
  • Building Sections & Interior Elevations
  • Complete Construction Details
  • Complete Specifications: Specifications list the types of materials used in the construction of the home. Finish schedules are provided.
» See important information before purchasing.
Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$1000.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$1130.00
5 printed plan sets mailed to you.
8 Copy Set:
$1240.00
8 printed plan sets mailed to you.
5 Copy and PDF Set:
$1255.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set:
$1900.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Monolithic Slab:
$0.00
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Crawlspace:
$175.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00
Wood 2x4 Exterior Walls

Additional Options

Right-Reading Reverse:
$150.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
$45.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Additional Use License:
$0.00
Allows you to build one more home for each additional license purchased.
Audio Video Design:
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide:
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Mirror Reversed Sets:
$75.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
Unlimited Use License:
$0.00
Allows you to build this home as many times as you want.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
