Full Specs & Features
Depth : 36'
Height : 27'
Width : 68'
Basement Unfinished: 1033 sq/ft

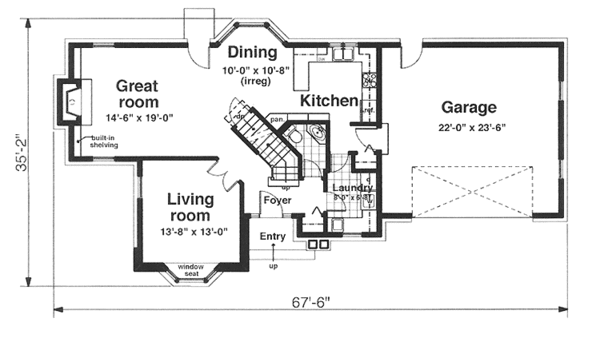

First Floor: 1033 sq/ft

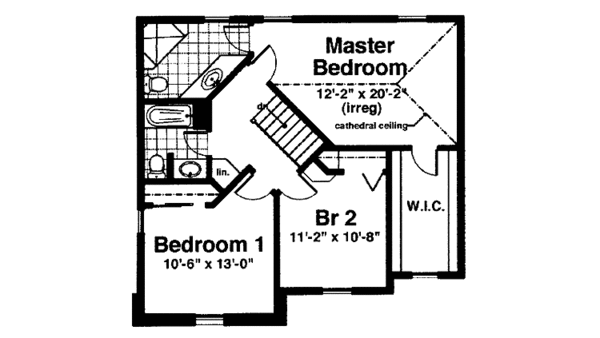

Second Floor: 866 sq/ft
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x6
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
136 sq/ft width 10' 6" x depth 13'
119 sq/ft width 11' 2" x depth 10' 8"
106 sq/ft width 10' x depth 10' 8"
517 sq/ft width 22' x depth 23' 6"
275 sq/ft width 14' 6" x depth 19'
177 sq/ft width 13' 8" x depth 13'
245 sq/ft width 12' 2" x depth 20' 2"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

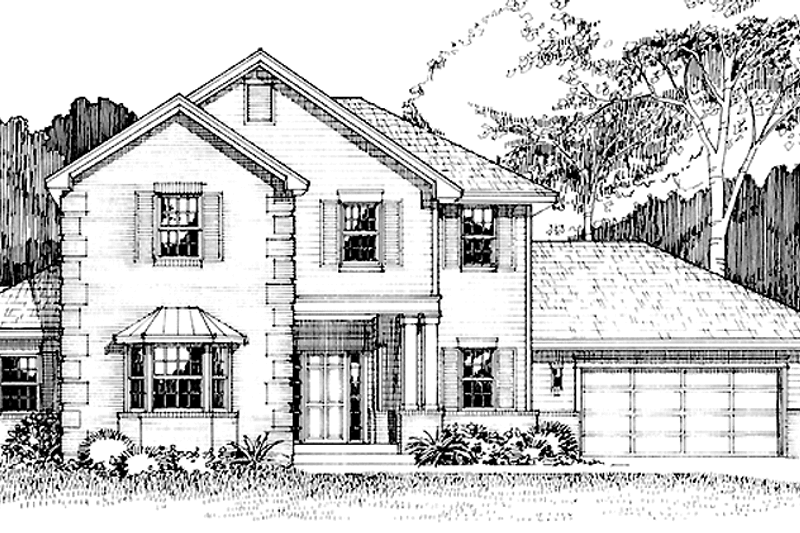

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
