PLAN 17-2912
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

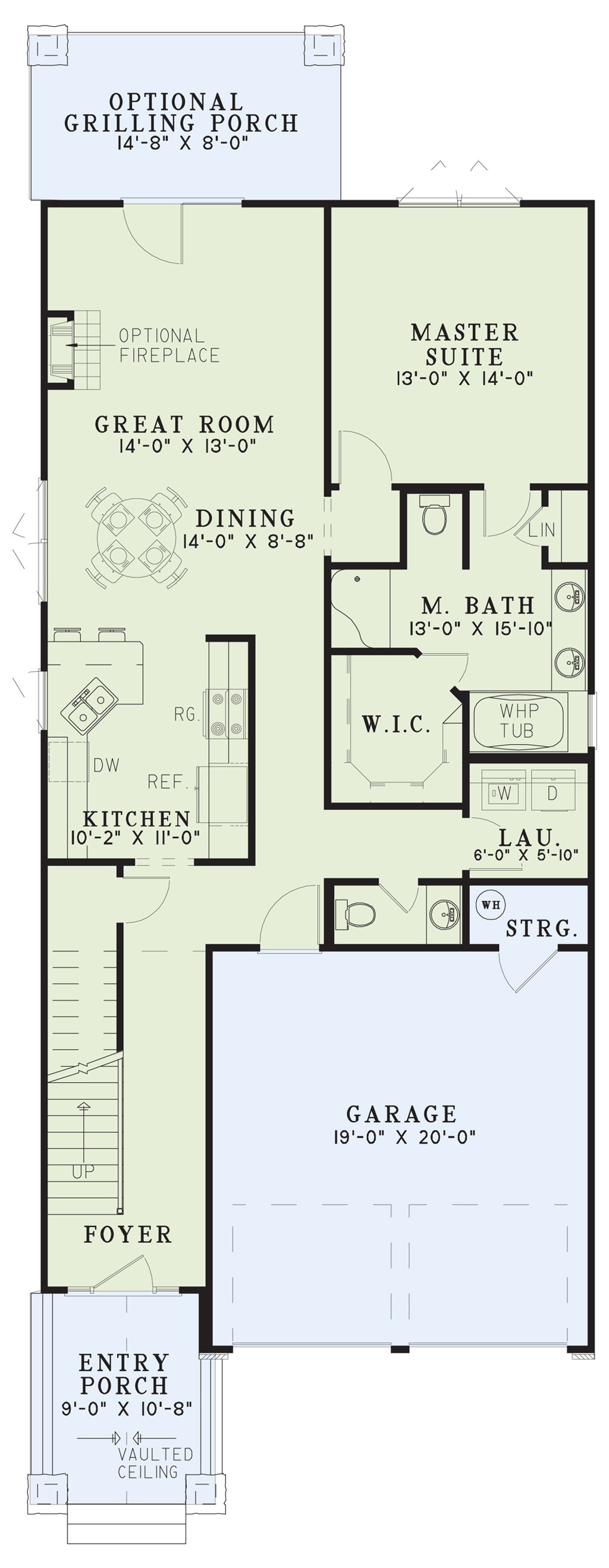

Floor Plans
Full Specs & Features
Dimension
Depth : 66'
Height : 27' 11"
Width : 28'
Area
Bonus: 192 sq/ft height 8'
First Floor: 1190 sq/ft height 9'
Garage: 415 sq/ft
Porch: 220 sq/ft
Second Floor: 700 sq/ft height 8'
Roof
Primary Pitch : 8:12
Roof Type : Shingle
Exterior Wall Framing
Framing : Wood - 2x4
Bedroom Features
Fireplace
Main Floor Master Bedroom
Walk In Closet
Additional Room Features
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms

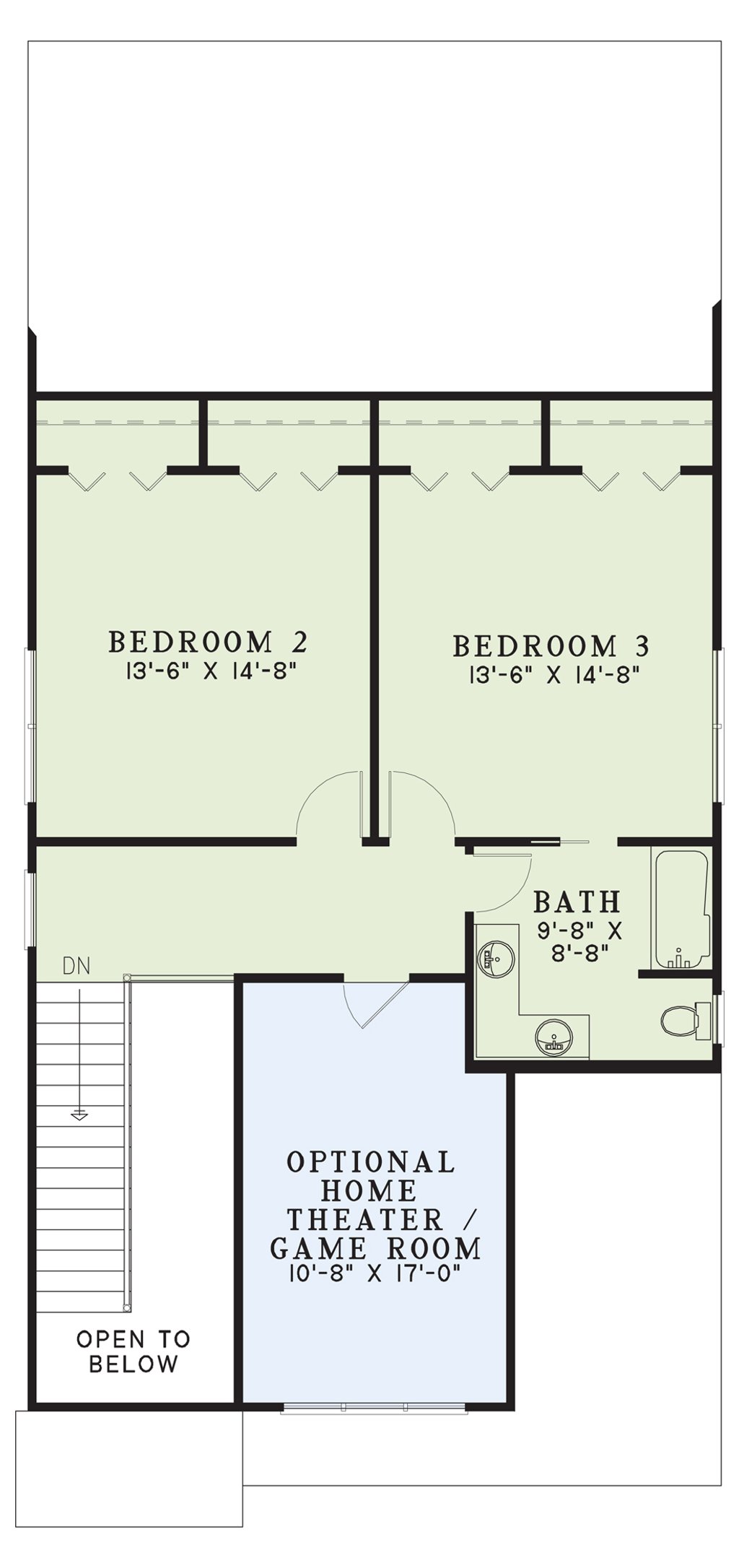

Bathroom 2:
83 sq/ft width 9' 8" x depth 8' 8"
Bedroom 2:
198 sq/ft width 13' 6" x depth 14' 8"
Bedroom 3:
198 sq/ft width 13' 6" x depth 14' 8"
Bonus Room - Unfinished:
213 sq/ft width 10' 8" x depth 20'
Dining Room:
121 sq/ft width 14' x depth 8' 8"
Front Entry:
96 sq/ft width 9' x depth 10' 8"
Garage:
380 sq/ft width 19' x depth 20'
Great Room:
182 sq/ft width 14' x depth 13'
Grilling Porch:
117 sq/ft width 14' 8" x depth 8'
Kitchen:
111 sq/ft width 10' 2" x depth 11'
Laundry Room:
34 sq/ft width 6' x depth 5' 10"
Master Bathroom:
205 sq/ft width 13' x depth 15' 10"
Master Suite:
182 sq/ft width 13' x depth 14'
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$800.00
$900.00
$1150.00
$1500.00
$1600.00
$1600.00
Foundation
$0.00
$0.00
$299.00
$299.00
Framing
$0.00
$299.00
Additional Options
$299.00
$80.00
$100.00
$295.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
