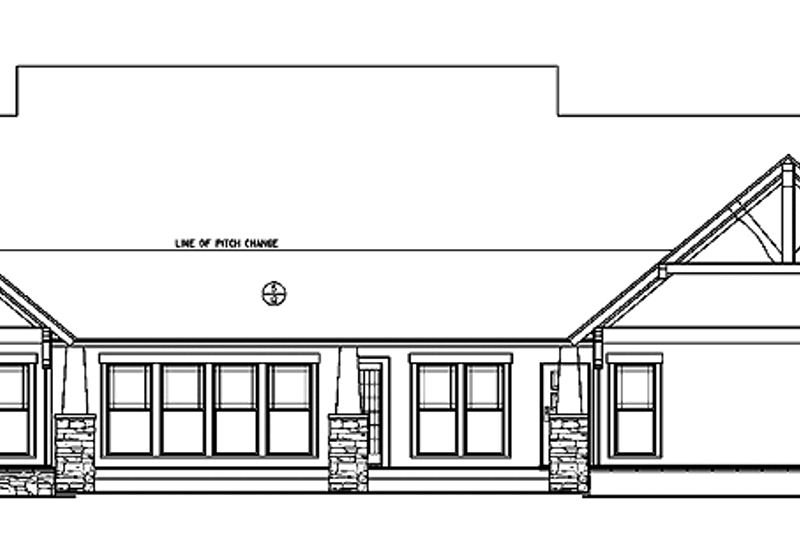

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #17-3314

Architectural House Design - Craftsman Floor Plan - Main Floor Plan #17-3314

Architectural House Design - Craftsman Floor Plan - Upper Floor Plan #17-3314

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Craftsman

Key Specs

2373
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Right-Reading Reverse	$254.15
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$68.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Comprehensive Material List	$250.75
	A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1020.00

You save $180.00 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBSUMMER

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 17-3314

Home > Style > Craftsman

Key Specs

2373
sq ft

4
Beds

3
Baths

1
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Dramatic yet down-to-earth, this roomy plan features gorgeous timber beams and stone accents on the exterior, with an interior that centers on the spacious great room and kitchen. Windows blanket the back of the house to let light into the hearth-warmed gathering area. To the left, the generous master suite includes a corner whirlpool tub, seated shower, and walk-in closet, with the laundry room conveniently nearby. On the opposite side two family bedrooms share a bath, with the study functioning as another bedroom if needed.

Floor Plans

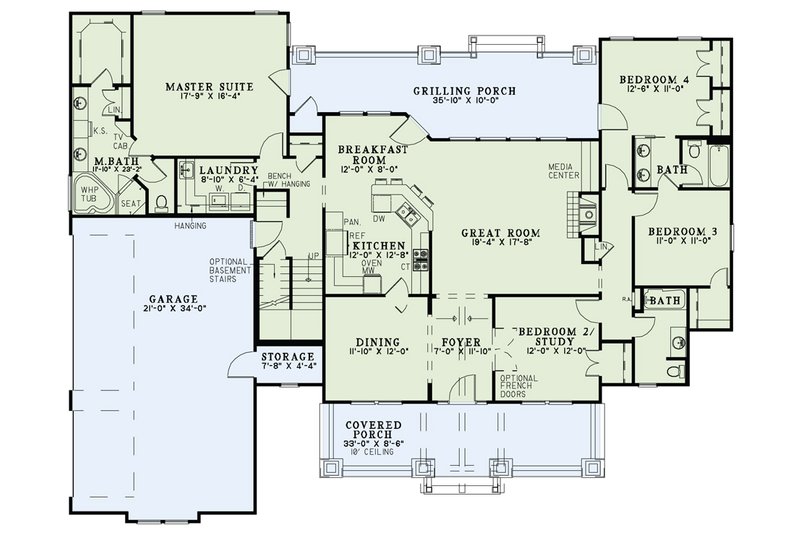

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

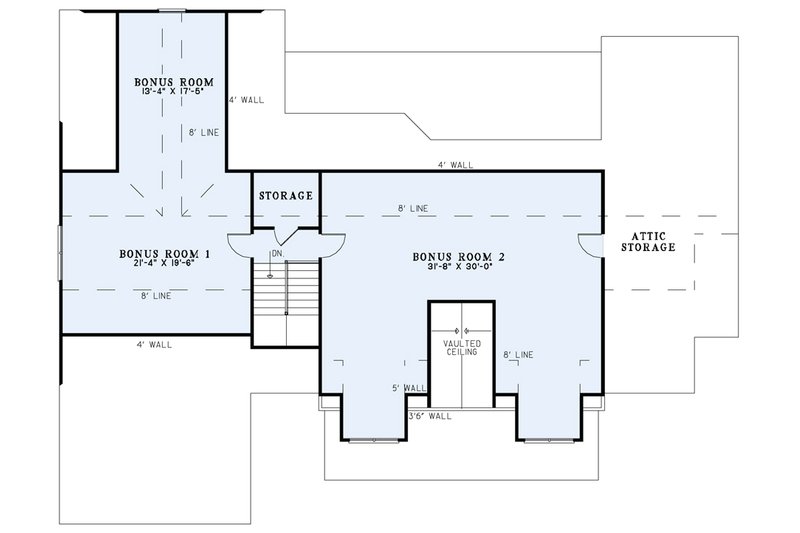

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 59' 2"

Height : 26' 2"

Width : 76' 10"

Area

Bonus: 1542 sq/ft height 8'

First Floor: 2373 sq/ft height 9'

Garage: 783 sq/ft height 9'

Porch: 597 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 10:12

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x4

Bedroom Features

Formal Dining Room

Kitchen Features

Breakfast Nook

Kitchenette Wet Bar

Additional Room Features

Great Room Living Room

Unfinished Future Space

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bedroom 2:

144 sq/ft width 12' x depth 12'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 4:

137 sq/ft width 12' 6" x depth 11'

Breakfast Room:

96 sq/ft width 12' x depth 8'

Covered Porch:

280 sq/ft width 33' x depth 8' 6"

Foyer:

82 sq/ft width 7' x depth 11' 10"

Garage:

714 sq/ft width 21' x depth 34'

Garage Storage:

33 sq/ft width 7' 8" x depth 4' 4"

Great Room:

341 sq/ft width 19' 4" x depth 17' 8"

Grilling Porch:

358 sq/ft width 35' 10" x depth 10'

Kitchen:

152 sq/ft width 12' x depth 12' 8"

Laundry Room:

55 sq/ft width 8' 10" x depth 6' 4"

Master Suite:

289 sq/ft width 17' 9" x depth 16' 4"
