Full Specs & Features
Depth : 52'
Height : 28'
Width : 47'
Bonus: 426 sq/ft

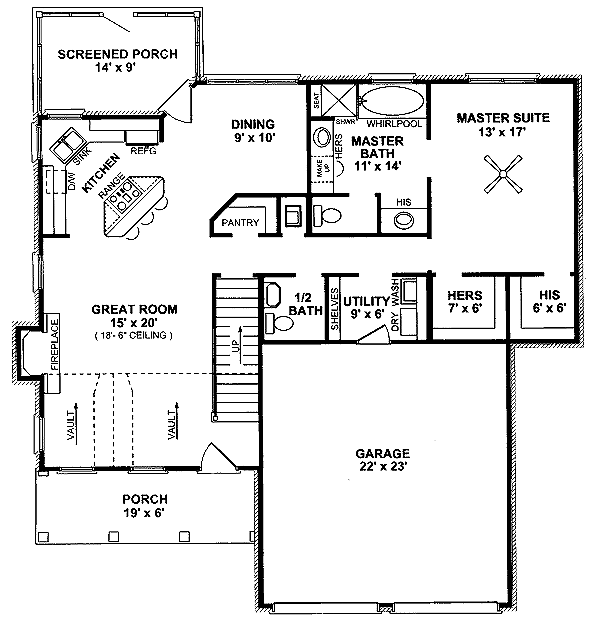

First Floor: 1257 sq/ft height 9'
Garage: 506 sq/ft
Porch: 235 sq/ft

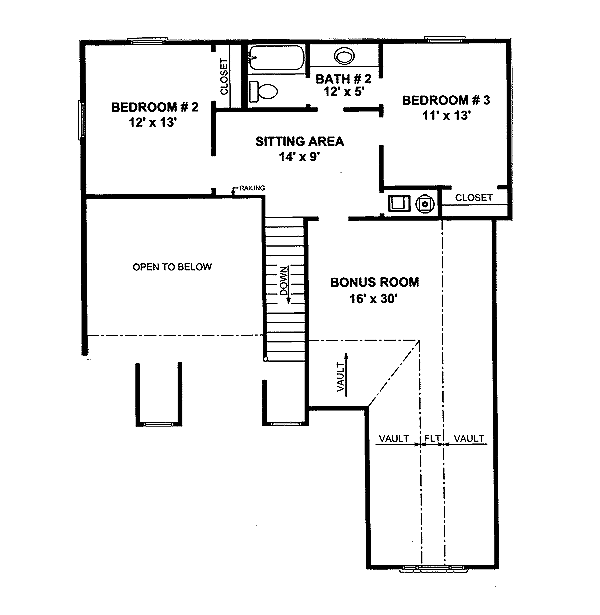

Second Floor: 558 sq/ft height 8'
Main Ceiling : 9'
Upper Ceiling Ft : 8'
Primary Pitch : 8:12
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 5:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Stucco
Framing : 2"x4"
Main Floor Master Bedroom
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Play Flex Room
Covered Front Porch
Covered Rear Porch
110 sq/ft width 10' 6" x depth 10' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

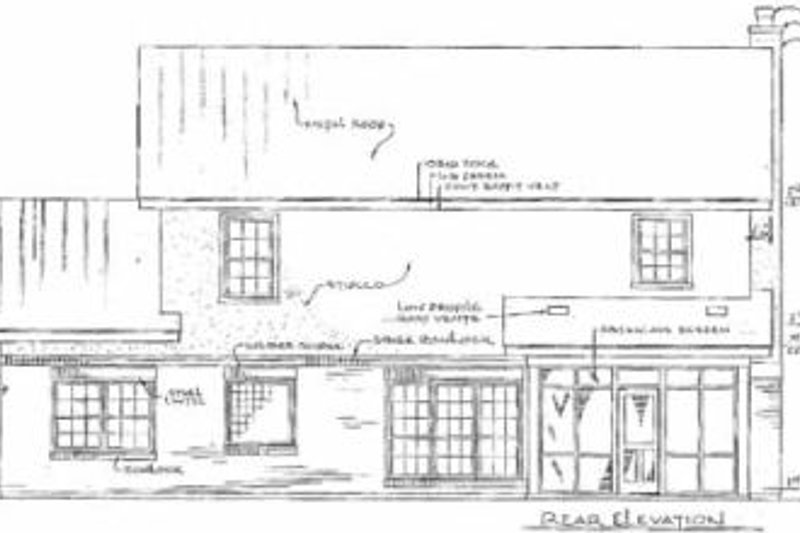

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
