Plan Description

Crafted, bow Palladian windows front the secondary bedroom and the formal dining room on this plan. An impressive entrance is formed by the dining room, great room and foyer meeting in one, large space. A sloping ceiling at the end of the great room over the view to the covered patio lends a cozy, stylish feel. To the right is the kitchen with built-in eating area; an angled breakfast bar maintains separation between the two. Back through the kitchen is a hallway leading to the utility area and double garage. Around the corner is the master suite with an elegant coffered ceiling in the bedroom. An oversized soaking tub sits next to the double vanity in the bath.

Floor Plans

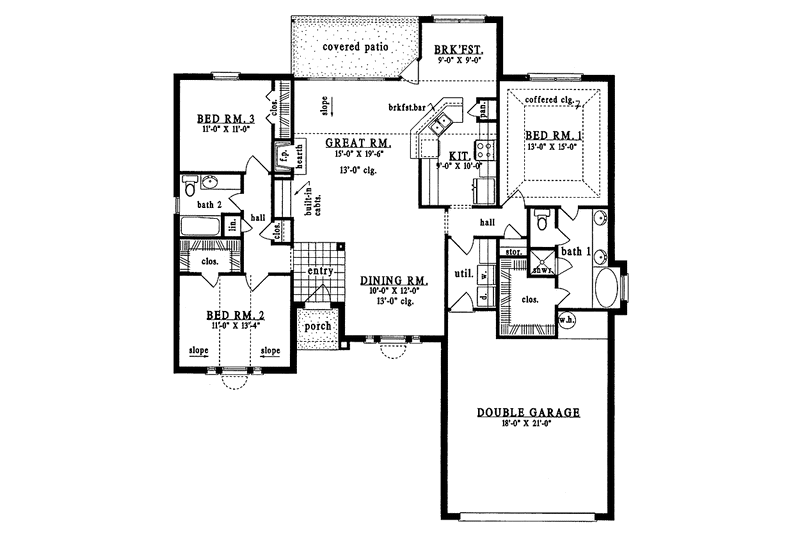

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 60' 6"

Height : 24'

Width : 52' 10"

Area

First Floor: 1764 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 8:12

Roof Framing : Conventional

Roof Type : Shingle

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Split Bedrooms

Kitchen Features

Breakfast Nook

Additional Room Features

Great Room Living Room

Main Floor Laundry

Open Floor Plan

Outdoor Spaces

Courtyard

Covered Front Porch

Rooms

3rd BR Closet:

14 sq/ft width 2' x depth 7'

Bedroom 2:

146 sq/ft width 11' x depth 13' 4"

Bedroom 2 Closet:

28 sq/ft width 4' x depth 7'

Bedroom 3:

121 sq/ft width 11' x depth 11'

Bedroom 3 Closet:

28 sq/ft width 4' x depth 7'

Breakfast Room:

81 sq/ft width 9' x depth 9'

Dining Room:

120 sq/ft width 10' x depth 12'

Garage:

399 sq/ft width 19' x depth 21'

Gathering Room:

292 sq/ft width 15' x depth 19' 6"

Hall Bathroom:

60 sq/ft width 7' 6" x depth 8'

Hall Closet:

5 sq/ft width 2' x depth 2' 8"

Kitchen:

90 sq/ft width 9' x depth 10'

Master Bedroom:

195 sq/ft width 13' x depth 15'

Master Closet:

54 sq/ft width 6' x depth 9'

Porch - Front:

30 sq/ft width 5' x depth 6'

Porch - Rear:

128 sq/ft width 8' x depth 16'

Utility Room:

51 sq/ft width 5' 8" x depth 9'
