This plan can be customized
Full Specs & Features
Depth : 74' 10"
Height : 28'
Width : 34' 10"
First Floor: 1759 sq/ft height 10'
Garage: 504 sq/ft
Porch: 24 sq/ft
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x6 Wood - 2x4
Main Floor Master Bedroom
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Rear Entry Garage
149 sq/ft width 11' 6" x depth 13'
132 sq/ft width 12' x depth 11'
504 sq/ft width 24' x depth 21'
320 sq/ft width 20' x depth 16'
162 sq/ft width 12' x depth 13' 6"
240 sq/ft width 15' x depth 16'
150 sq/ft width 12' 6" x depth 12'
What's Included In This Plan Set

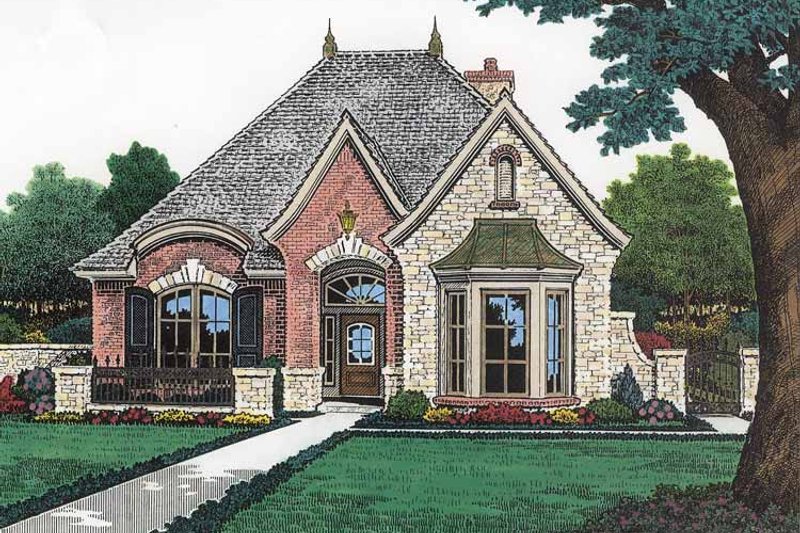

- Cover Sheet: Showing architectural rendering of residence

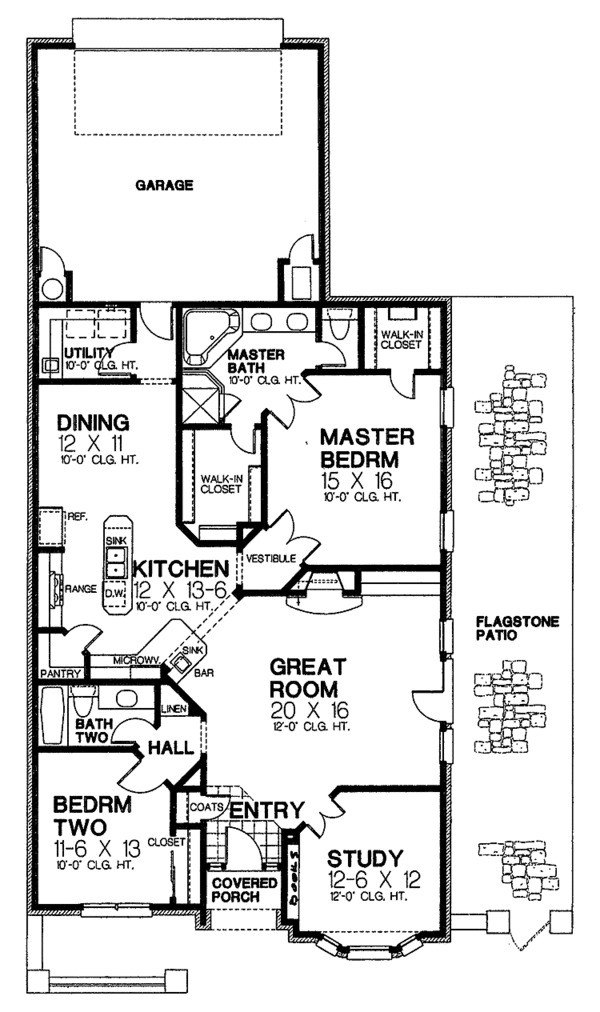

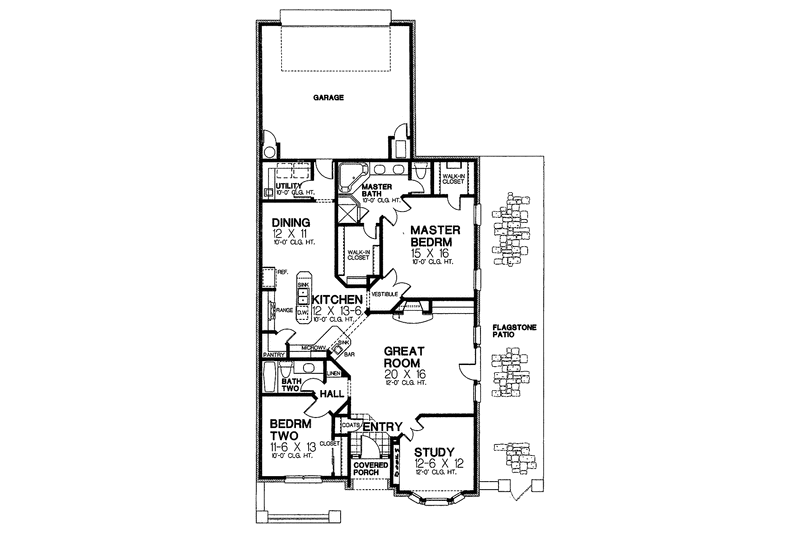

- Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
- Foundation Plan and Details
- Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
- Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.

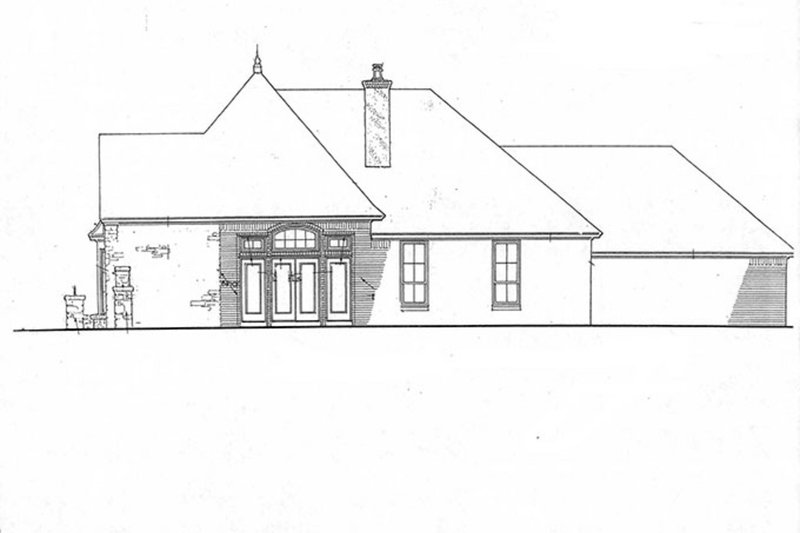

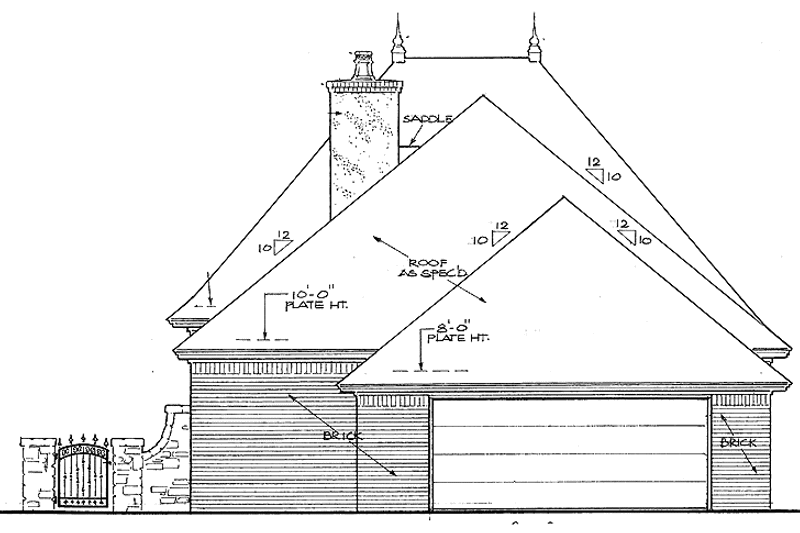

- Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
- Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
