Plan Description

This floor plan is 1742 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

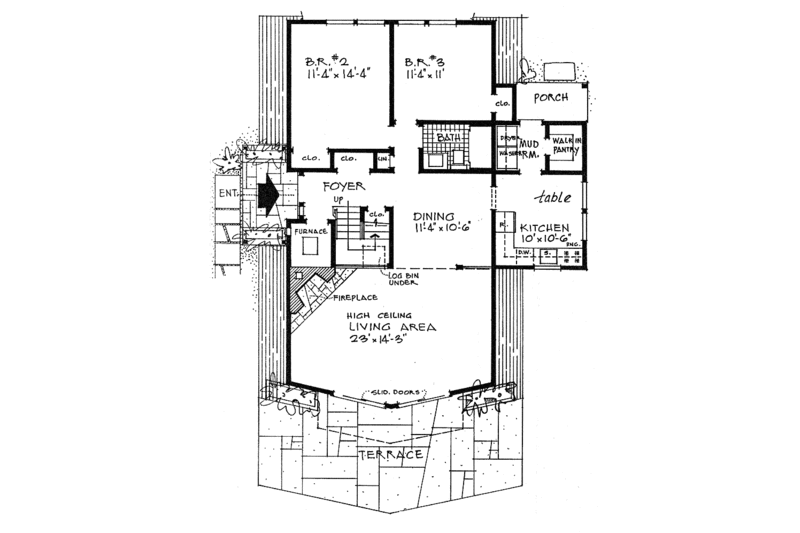

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

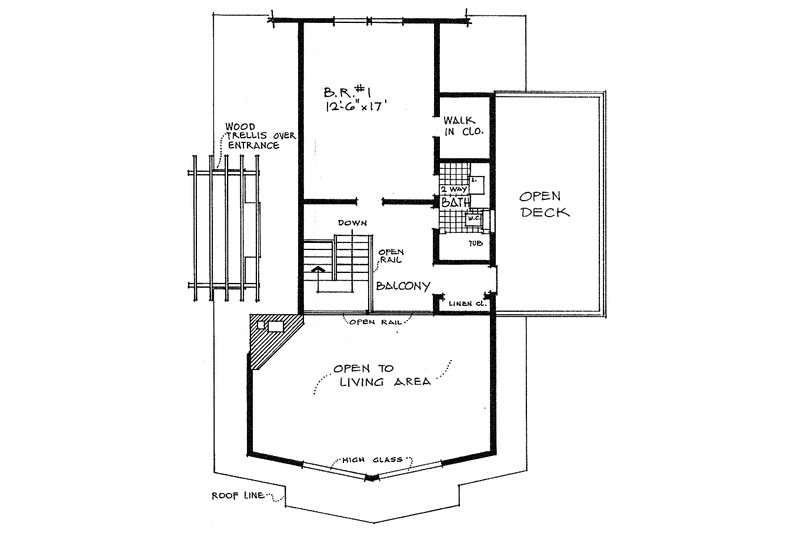

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 44' 2"

Height : 27' 6"

Width : 34'

Area

First Floor: 1248 sq/ft

Second Floor: 494 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone

Framing : Wood - 2x4

Bedroom Features

Fireplace

Formal Dining Room

Upstairs Master Bedrooms

Additional Room Features

Main Floor Laundry

Mud Room

Vaulted / Cathedral Ceilings

Outdoor Spaces

Courtyard

Deck

Rooms

Bedroom 1:

212 sq/ft width 12' 6" x depth 17'

Bedroom 2:

162 sq/ft width 11' 4" x depth 14' 4"

Bedroom 3:

124 sq/ft width 11' 4" x depth 11'

Dining Room:

118 sq/ft width 11' 4" x depth 10' 6"

Kitchen:

105 sq/ft width 10' x depth 10' 6"

Living Room:

327 sq/ft width 23' x depth 14' 3"

What's Included In This Plan Set

See a sample plan set

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.

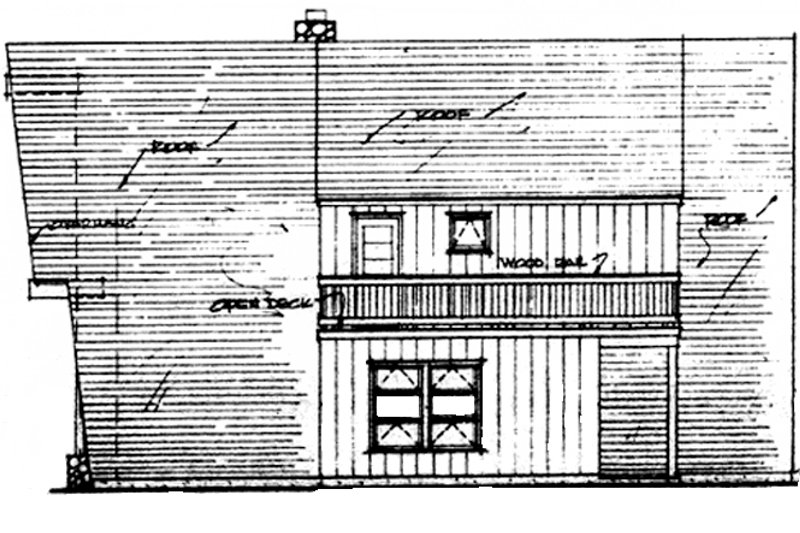

Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): Roof pitches and overhangs noted on the cross-section. Overhead not included.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
