PLAN 417-844

Architectural House Design - Mediterranean Exterior - Front Elevation Plan #417-844
Architectural House Design - Mediterranean Exterior - Front Elevation Plan #417-844
Architectural House Design - Mediterranean Exterior - Front Elevation Plan #417-844
Architectural House Design - Mediterranean Exterior - Rear Elevation Plan #417-844

Key Specs


Plan Sq Ft

1704
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

Select Plan Set Options

What's included?
Additional Construction Sets
$50.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Subtotal
$950.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Get Personalized Help
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 417-844

Key Specs


Plan Sq Ft

1704
sq ft

Plan Bedrooms

3
Beds

Plan Bathrooms

2
Baths

Plan Floors

1
Floors

Plan Garages

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description


Cathedral ceilings abound throughout this plan creating arches, niches, and plant shelves that add to the charm. A columned foyer, flanked by the formal living and dining rooms, leads to the family room with a corner fireplace and sliding glass doors to the covered patio. Both the kitchen which has plenty of cabinet and counter space and the nook have tiled floors.

Full Specs & Features


Dimension
Depth : 50' 8"
Height : 21' 8"
Width : 50'
Area
First Floor: 1704 sq/ft
Garage: 423 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Block
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Vaulted / Cathedral Ceilings
Garage Features
Front Entry Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch

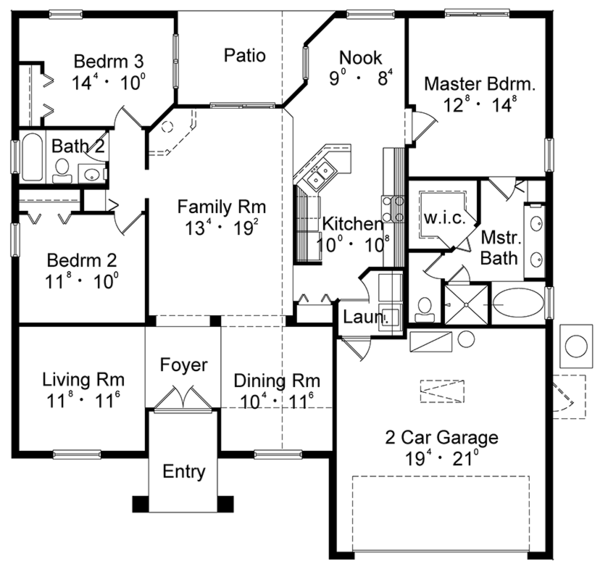

Rooms

Bedroom 2:

117 sq/ft width 11' 8" x depth 10'

Bedroom 3:

143 sq/ft width 14' 4" x depth 10'

Covered Front Porch:

59 sq/ft

Covered Rear Porch:

104 sq/ft

Dining Area:

118 sq/ft width 10' 4" x depth 11' 6"

Family Room:

256 sq/ft width 13' 4" x depth 19' 2"

Garage:

423 sq/ft width 19' 4" x depth 21'

Kitchen:

107 sq/ft width 10' x depth 10' 8"

Living Room:

134 sq/ft width 11' 8" x depth 11' 6"

Master Suite:

186 sq/ft width 12' 8" x depth 14' 8"

Nook:

50 sq/ft width 9' x depth 8' 4"

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
PDF Set :
$950.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set :
$1150.00
5 printed plan sets mailed to you.
5 Copy and PDF Set :
$1300.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Single Build :
$1900.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Study Set :
$600.00
One electronic set for bidding purposes only. Not a legal building set for construction.

Foundation

Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Block:
$0.00
Block

Additional Options

Additional Construction Sets :
$50.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design :
$100.00
Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
