PLAN 51-1570
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

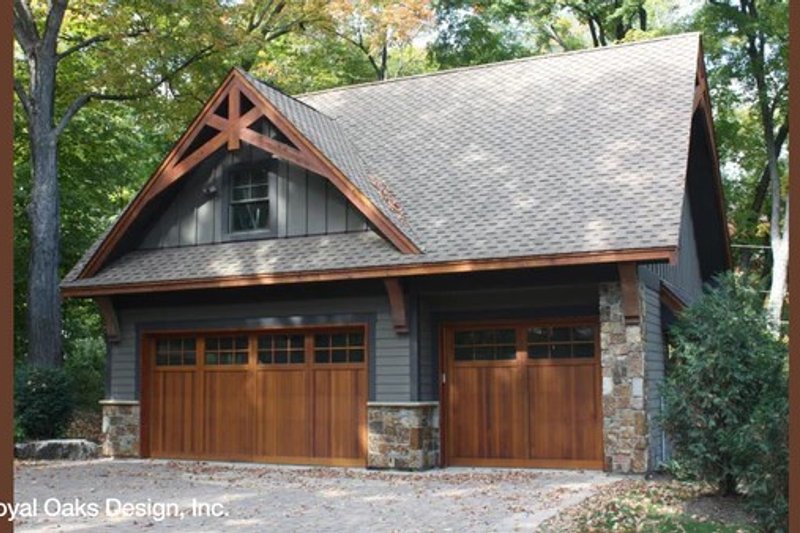

This is the ideal 3 car garage and shop. You have the flexibility the park 3 cars or convert one bay into a shop area. Beyond the generous first floor you'll find over 600 sq. ft.. of storage space on the second floor. You can use the bonus room in the second floor as storage or turn it into an office space or a media room. The possibilities are endless.
Floor Plans

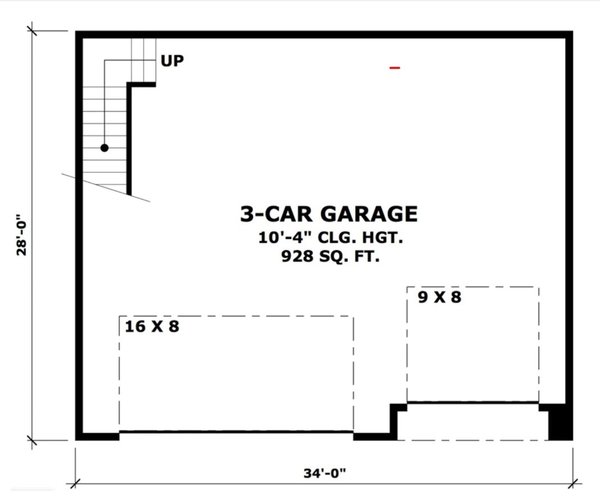

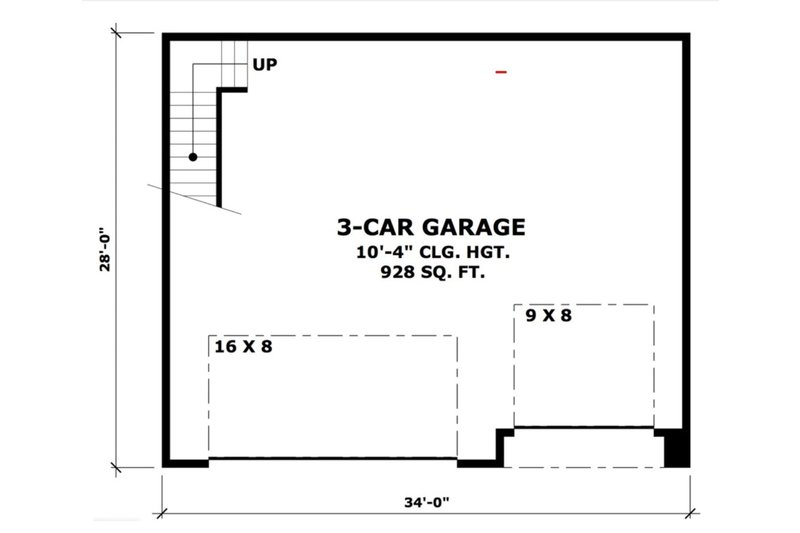

Floor Plan - Main Floor

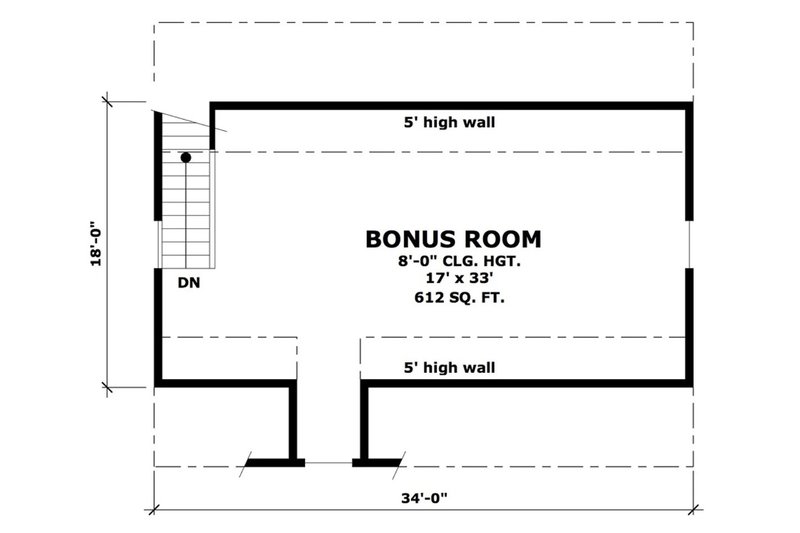

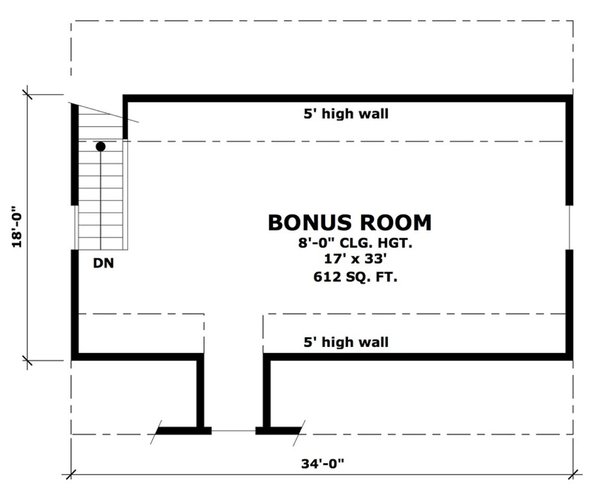

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth: 28'
Width: 34'
Area
Main Floor: 928 sq/ft
Upper Floor: 612 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Garage Ceiling: 10' 4"
Roof
Roof Framing: Truss
Exterior Wall Framing
Framing: 2x6
Bedroom Features
Main Floor Bedrooms
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Suited For Narrow Lot
What's Included In This Plan Set
Plans are typically drawn to ¼” scale and include:
» See important
information before purchasing.
- Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.

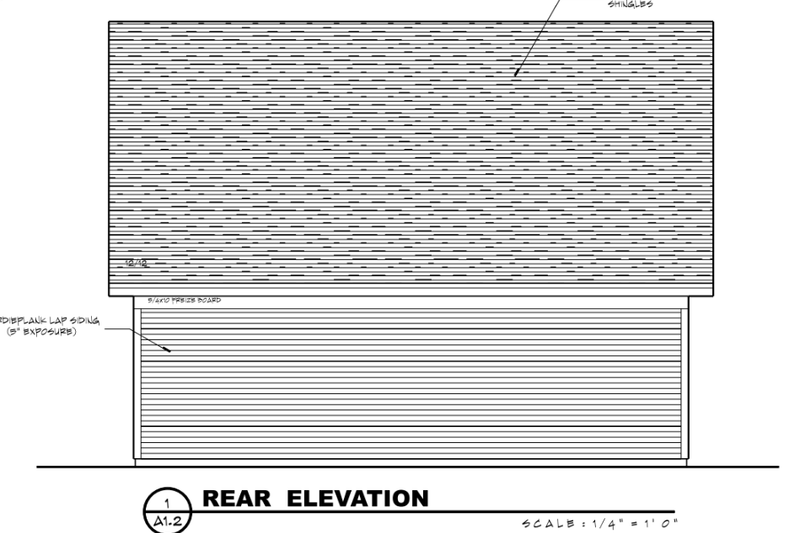

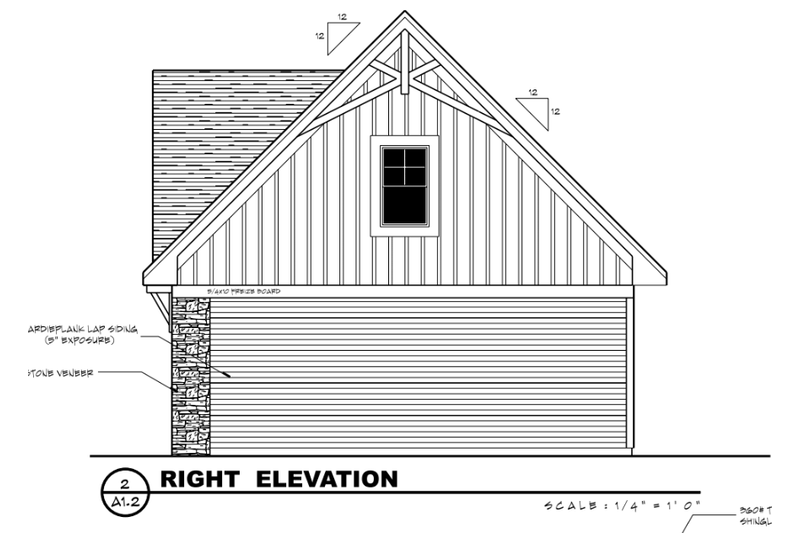

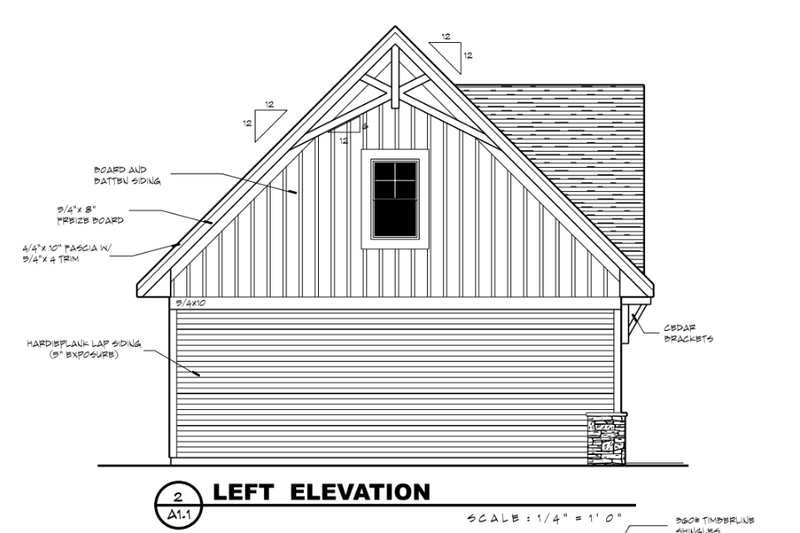

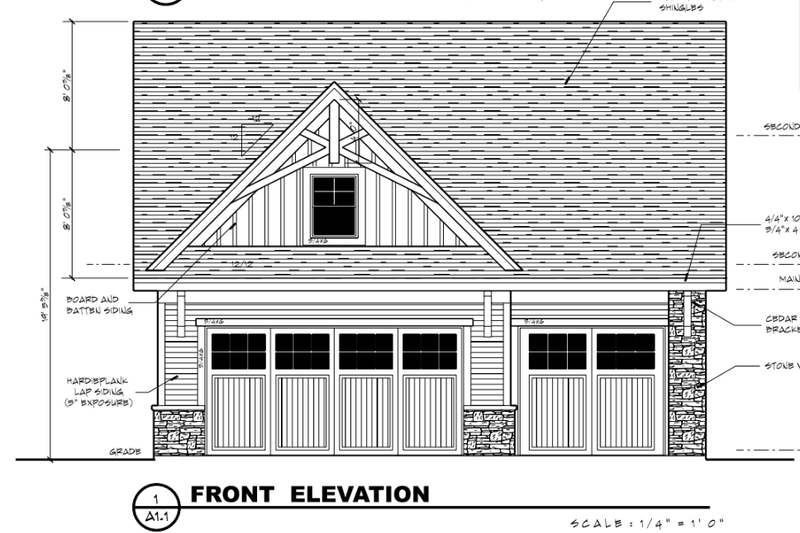

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements. Drawn to 1/4" and 1/8" scale.
- Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
- Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
- Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
- Other Note(s): This plan will not contain an electrical layout.
Questions? Call 1-877-222-1762
Plan Set
PDF Set:
$770.00
$770.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy Set:
$860.00
$860.00
5 printed plan sets mailed to you.
CAD Set:
$990.00
$990.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
5 Copy and PDF Set:
$1060.00
$1060.00
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
8 Copy Set:
$1060.00
$1060.00
8 printed plan sets mailed to you.
Single Set:
$770.00
$770.00
One printed set for bidding purposes only. Not a legal building set for construction.
Foundation
Slab:
$0.00
$0.00
Ideal for level lot, single layer concrete poured directly on grade.
Framing
Wood 2x6:
$0.00
$0.00
Wood 2x6 Exterior Walls
Wood 2x4:
$250.00
$250.00
Wood 2x4 Exterior Walls
Additional Options
Right-Reading Reverse:
$200.00
$200.00
Choose this option to reverse your plans and to have the text and dimensions readable.
3 Car Front-Loading Garage:
$0.00
$0.00
Changes garage to front load
Additional Construction Sets:
$75.00
$75.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of audio and video components.
Lighting Design:
$165.00
$165.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Material List:
$450.00
$450.00
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
Unlimited Use License:
$900.00
$900.00
Allows you to build this home as many times as you want.
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
