PLAN 118-169

Photographs may show modified designs.

Architectural House Design - Cottage Exterior - Front Elevation Plan #118-169

Architectural House Design - Cottage Floor Plan - Main Floor Plan #118-169

Architectural House Design - Cottage Floor Plan - Upper Floor Plan #118-169

Jump to:
All (3)
Exterior (1)
Floor plans (2)

Get Personalized Help

Home > Style > Cottage

Key Specs

1343
sq ft

2
Beds

2
Baths

2
Floors

0
Garages

Select Plan Set Options

What's included?

Select Foundation Options

	Audio Video Design	$140.25
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$140.25
	Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $803.25

You save $141.75 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTBFALL

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 118-169

Home > Style > Cottage

Key Specs

1343
sq ft

2
Beds

2
Baths

2
Floors

0
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

You will love escaping to this two bedroom cottage with an additional sleeping loft, whether it's every day or only on weekends. The four season cottage has a wrap-around porch and sundeck for warm weather and a interior wood-burning stove for cooler temperatures. Porch square footage provided includes, front, side & rear porches, as well as the upper covered balcony.

Floor Plans

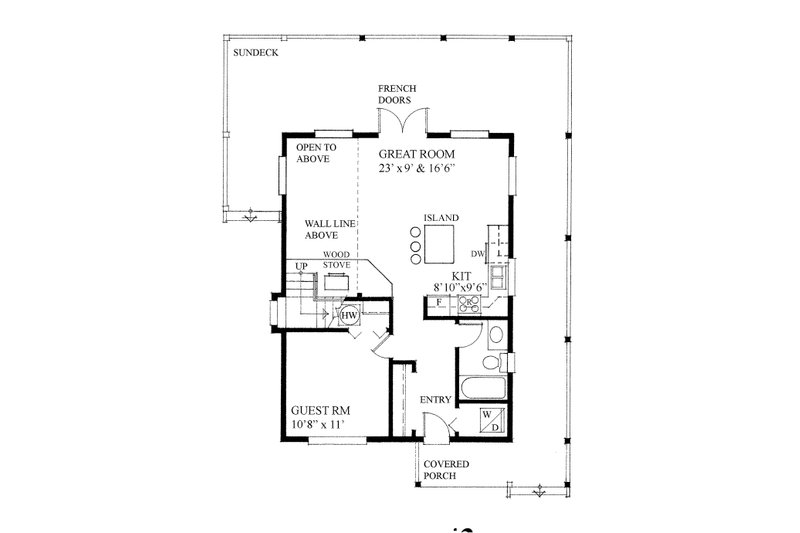

Floor Plan - Main Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

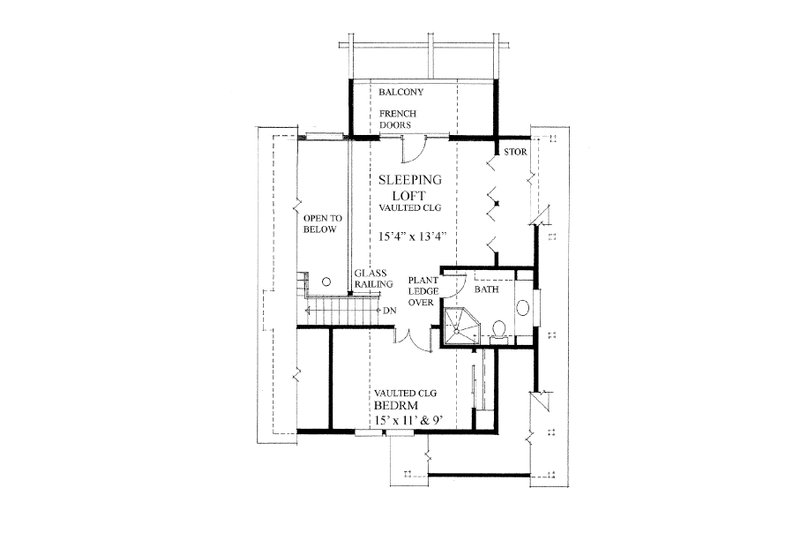

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth : 46' 6"

Height : 26' 6"

Width : 30'

Area

Main Floor : 768 sq/ft

Porch : 456 sq/ft

Upper Floor : 575 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : Upper floor has vaulted ceilings in Sleeping Loft & Bedroom.

Main Ceiling : 10'

Upper Ceiling Ft : 10'

Roof

Primary Pitch : 12:12

Roof Framing : Conventional

Roof Type : Metal

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2 x 6

Bedroom Features

Main Floor Bedrooms

Split Bedrooms

Upstairs Bedrooms

Kitchen Features

Eating Bar

Kitchen Island

Additional Room Features

Great Room Living Room

Loft

Main Floor Laundry

Storage Area

Lot Characteristics

Suited For Corner Lot

Suited For Narrow Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Wrap Around Porch

Economical To Build

Suited For Vacation Home

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Cover Sheet: Cover sheet with rendering and art floor plans
Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Electrical Plan(s): Electrical fixtures / switches / smoke alarms by location only on floor plans.
Detail Sheet(s): Details as required.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Structural Information: Structural floor / roof information indicated either on the floor plans or separate framing plans for complicated designs. Important: design loads and weather conditions vary by region. As a result the size, spacing, and layout of all structural elements in this home design may need approval by a structural engineer or code official based on your specific site location.
Site Plan(s): Site plan at 1/8″=1′-0″ or 1/4″= 1′-0″

Other notes: Plans are engineered by a structural engineer, but not stamped or sealed; you may need to update for your location. Ground snow load 40 psf. (or composite roof live load 32 psf, dead load 10 psf for total roof design load 42 psf). Floor live load 40 psf. Assumed soil bearing capacity 1560 psf. Windows are called out as generic nominal sizes on floor plans, opening directions indicated on elevations.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$803.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Additional Options

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
