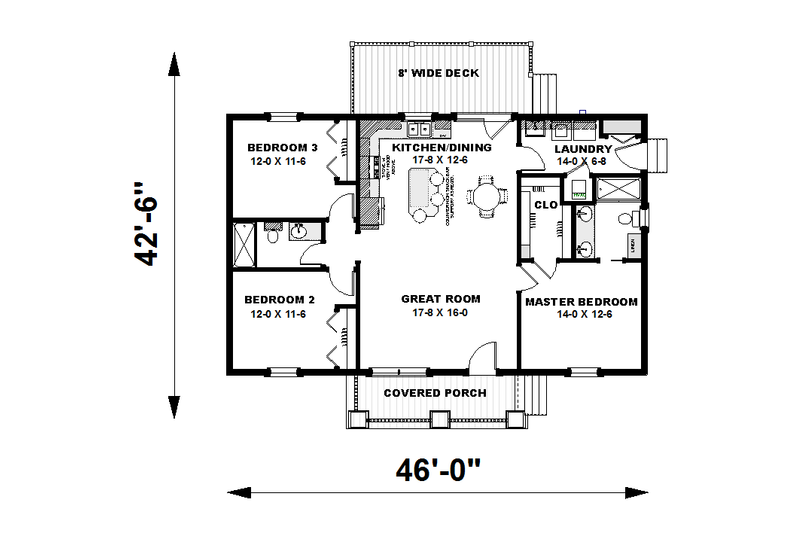

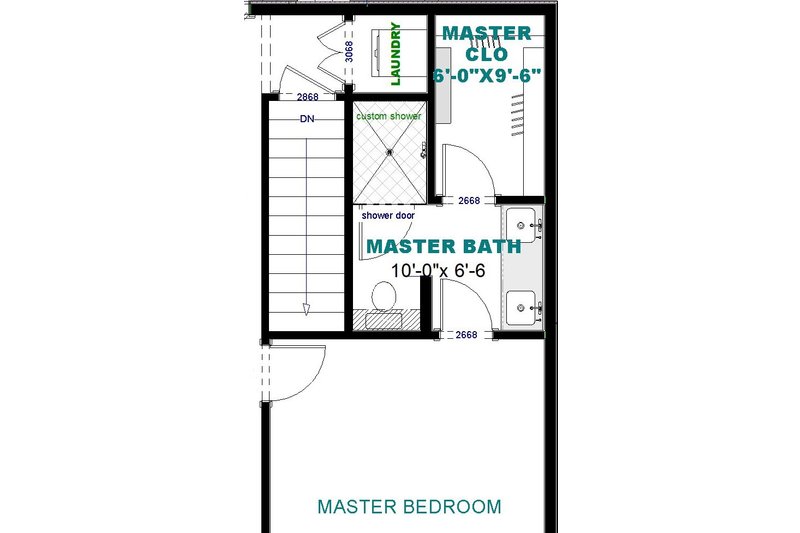

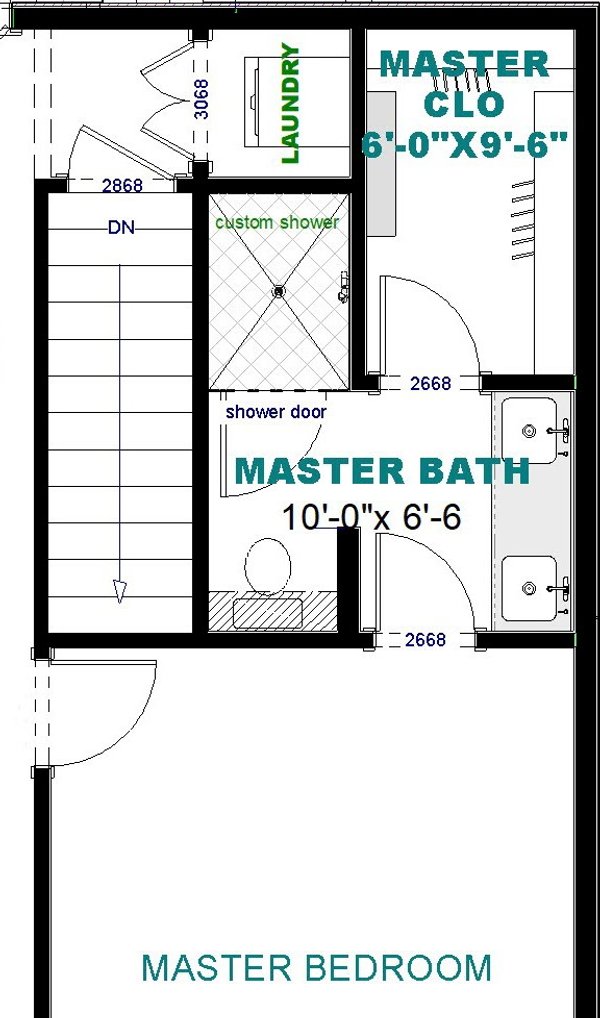

Split bedroom layout for privacy. NO wasted space in the cutie! Open kitchen/dining and great room – perfect for entertaining. Kitchen has a large island with a counter high snack bar, French doors lead out onto the optional rear deck. The Master bedroom is large and contains a private bath and walk-in closet. The master bath has dual sinks, tub/shower combo, window and plenty of storage. Bedrooms 2 and 3 share a bath. The large laundry room has lots of storage and a laundry sink for easy cleanup.
Full Specs & Features
Depth : 42' 6"
Height : 20'
Width : 46'
Main Floor : 1311 sq/ft
Porch : 120 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Exterior Wall Framing
Exterior Wall Finish : siding
Framing : 2x6
Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Great Room Living Room
Suited For Corner Lot
Suited For Narrow Lot
Suited For Sloping Lot
Suited For View Lot
Zero Lot Lines
Covered Front Porch
Grill Deck Sundeck
Economical To Build
Suited For Vacation Home
Energy Efficient Features
