PLAN 1042-3
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
1256
sq ft
2
Beds
1
Baths
2
Floors
0
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1042-3
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

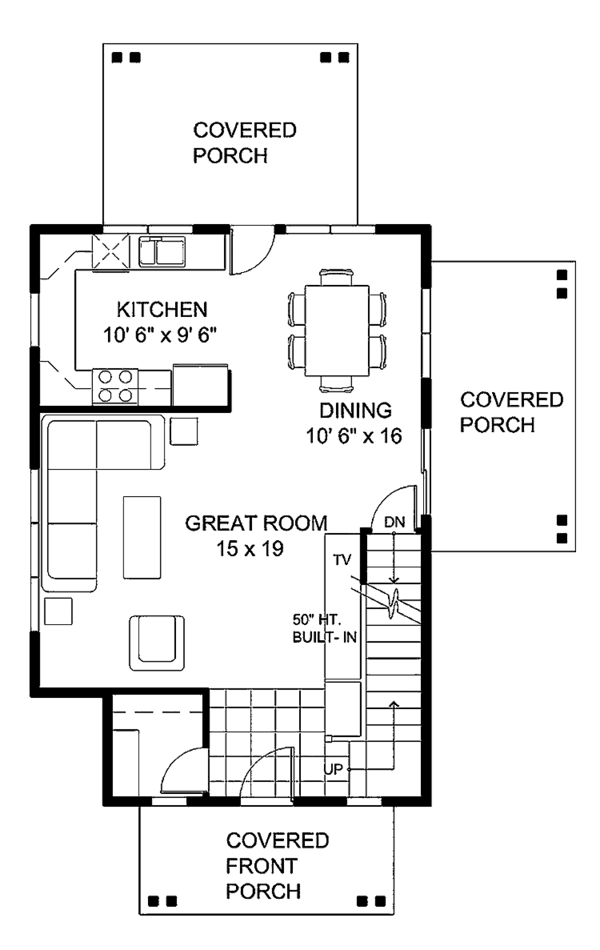

Floor Plan - Main Floor

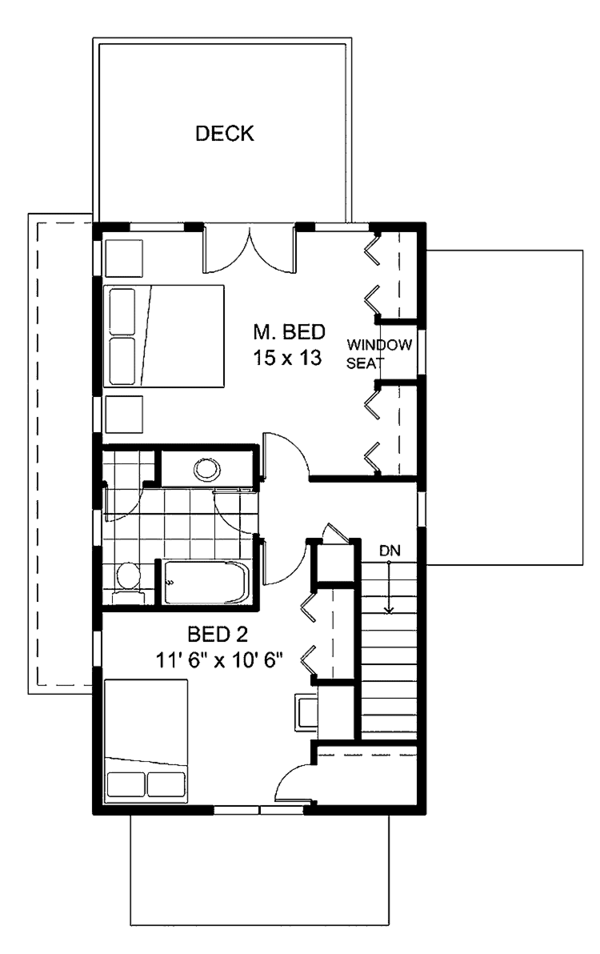

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 32'
Height : 26'
Width : 22'
Area
First Floor: 576 sq/ft
Second Floor: 680 sq/ft
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x6
Bedroom Features
Upstairs Master Bedrooms
Additional Room Features
Family Room Keeping Room
Loft
Upstairs Laundry
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Covered Rear Porch
Deck
More
Wheelchair Adaptable
Rooms
Balcony:
135 sq/ft width 9' 8" x depth 14'
Basement Foundation:
704 sq/ft width 32' x depth 22'
Bedroom 2:
144 sq/ft width 12' x depth 12'
Bedroom 2 Closet:
12 sq/ft width 6' x depth 2'
Bedroom 3 Closet:
12 sq/ft width 6' x depth 2'
Coat Closet:
10 sq/ft width 5' x depth 2'
Covered Porch:
84 sq/ft width 13' x depth 6' 6"
Crawlspace Foundation:
704 sq/ft width 32' x depth 22'
Deck:
190 sq/ft width 19' x depth 10'
Dining Room:
209 sq/ft width 19' x depth 11'
Entertainment Terrace:
190 sq/ft width 19' x depth 10'
Family Room:
262 sq/ft width 17' 6" x depth 15'
Foyer:
78 sq/ft width 13' x depth 6'
Front Entry:
78 sq/ft width 13' x depth 6'
Gathering Room:
262 sq/ft width 17' 6" x depth 15'
Hall Closet:
10 sq/ft width 5' x depth 2'
Kitchen:
110 sq/ft width 11' x depth 10'
Laundry Room:
9 sq/ft width 3' x depth 3'
Linen Closet:
4 sq/ft width 2' x depth 2'
Living Room:
262 sq/ft width 17' 6" x depth 15'
Master Bedroom:
180 sq/ft width 15' x depth 12'
Master Closet:
20 sq/ft width 10' x depth 2'
Porch - Front:
78 sq/ft width 13' x depth 6'
Porch - Left:
136 sq/ft width 8' 6" x depth 16'
Slab Foundation:
704 sq/ft width 22' x depth 32'
Storage Closet:
17 sq/ft width 5' 6" x depth 3' 3"
Wood Deck:
190 sq/ft width 19' x depth 10'
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
- Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
Plan Set
$1100.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$100.00
$39.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
