PLAN 513-2106

Home > Style > Craftsman

Key Specs

1253
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This craftsman design floor plan is 1253 sq ft and has 3 bedrooms and 2 bathrooms.

Floor Plans

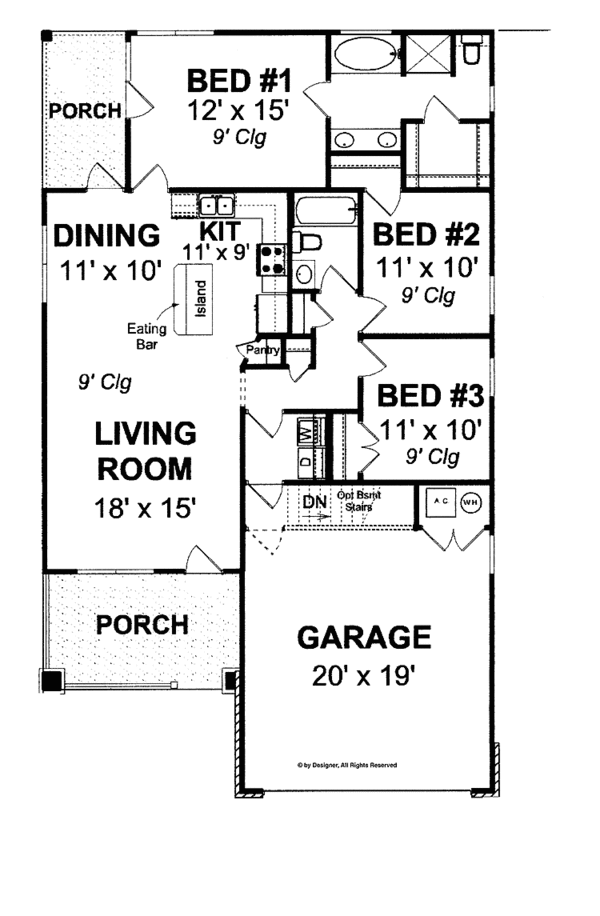

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 59'

Height : 20'

Width : 35'

Area

First Floor: 1253 sq/ft

Garage: 472 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Brick/Siding

Framing : Wood - 2x4

Bedroom Features

Formal Living Room / Parlor

Split Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Kitchenette Wet Bar

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Rooms

Bathroom 2:

37 sq/ft width 7' 6" x depth 5'

Bedroom 2:

110 sq/ft width 11' x depth 10'

Bedroom 3:

110 sq/ft width 11' x depth 10'

Dining Room:

110 sq/ft width 11' x depth 10'

Front Porch:

134 sq/ft width 15' 4" x depth 8' 9"

Garage:

380 sq/ft width 20' x depth 19'

Kitchen:

99 sq/ft width 11' x depth 9'

Kitchen Island:

16 sq/ft width 5' 6" x depth 3'

Living Room:

283 sq/ft width 18' x depth 15' 9"

Master Bathroom:

112 sq/ft width 9' x depth 12' 6"

Master Bedroom:

180 sq/ft width 12' x depth 15'

Master Closet:

32 sq/ft width 5' x depth 6' 6"

Pantry:

4 sq/ft width 2' x depth 2'

Rear porch:

79 sq/ft width 6' 6" x depth 12' 2"

Utility Room:

32 sq/ft width 5' 2" x depth 6' 4"

What's Included In This Plan Set

See a sample plan set

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): This page shows all necessary notations and dimensions including footings, support columns, walls, and excavated/unexcavated areas.
Floor Plan(s): Detailed plans for each level showing room dimensions, wall partitions, windows and doors, fixture locations, and ceiling treatments.
Exterior Elevations: Views of the home from all four sides showing exterior materials, roof slope, ridge heights, siding and trim notes.
Overhead Roof Plan(s): A view of the home from above showing roof pitch, peaks, valleys, and other details.
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes / Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.

Questions? Call 1-877-222-1762

Plan Set

PDF Unlimited Build:
$803.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

CAD Unlimited Build:
$1054.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Basement:
$165.75

Ideal for level lot, lower level of home partially or fully underground.

Crawlspace:
$165.75

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Framing

Wood 2x4:
$0.00

Wood 2x4 Exterior Walls

Wood 2x6:
$165.75

Wood 2x6 Exterior Walls

Additional Options

Right-Reading Reverse:
$165.75

Choose this option to reverse your plans and to have the text and dimensions readable.

Audio Video Design:
$140.25

Receive an overlay sheet with suggested placement of audio and video components.

Comprehensive Material List:
$250.75

A complete list of building supplies needed to construct the infrastructure of your new house, plus an overlay of materials shown directly on your PDF (foundation to rooftop with interior and exterior materials), and a detailed, itemized door and window schedule showing all sizes and types. Please allow 5-7 Business Days for completion. Note, the Comprehensive list is only available with a PDF purchase. The Comprehensive list can be ordered no matter what additional plan options you have selected.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$140.25

Receive an overlay sheet with suggested placement of lighting fixtures.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
