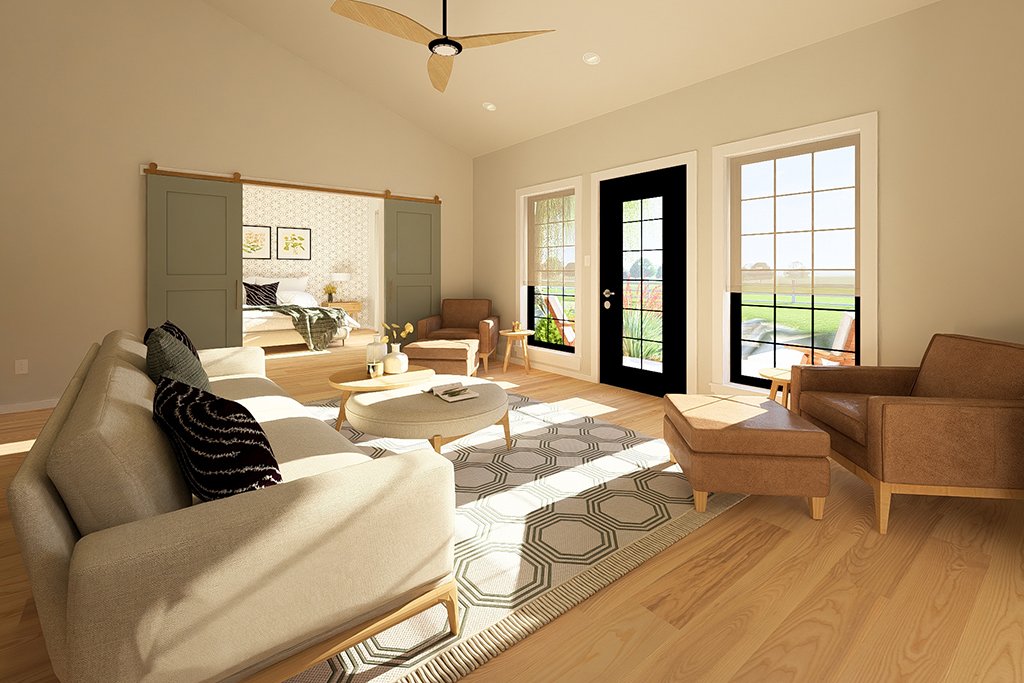

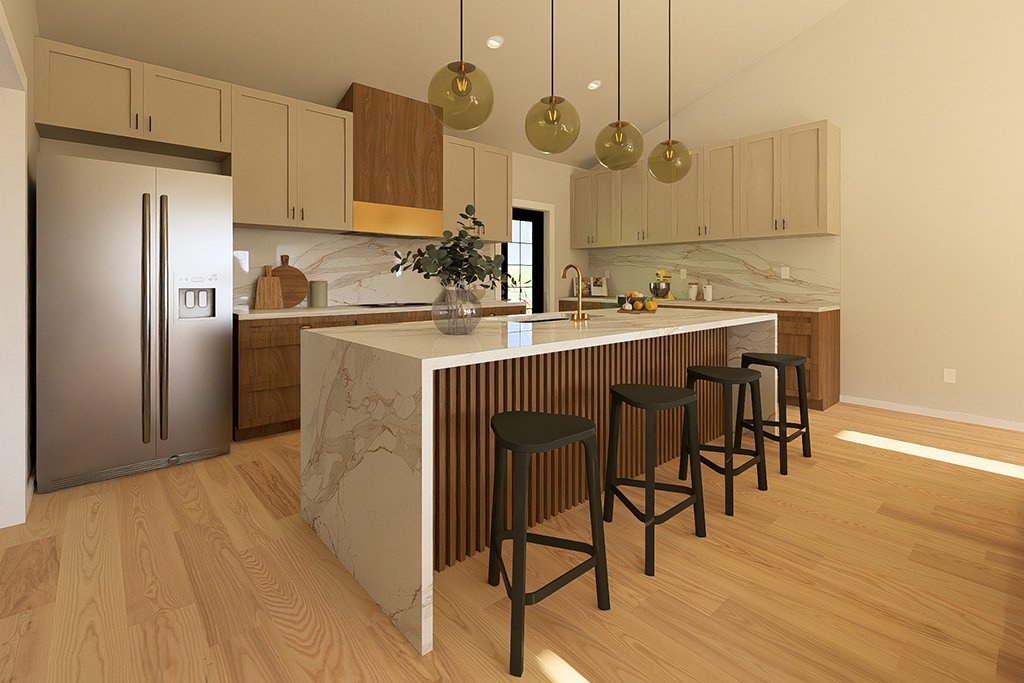

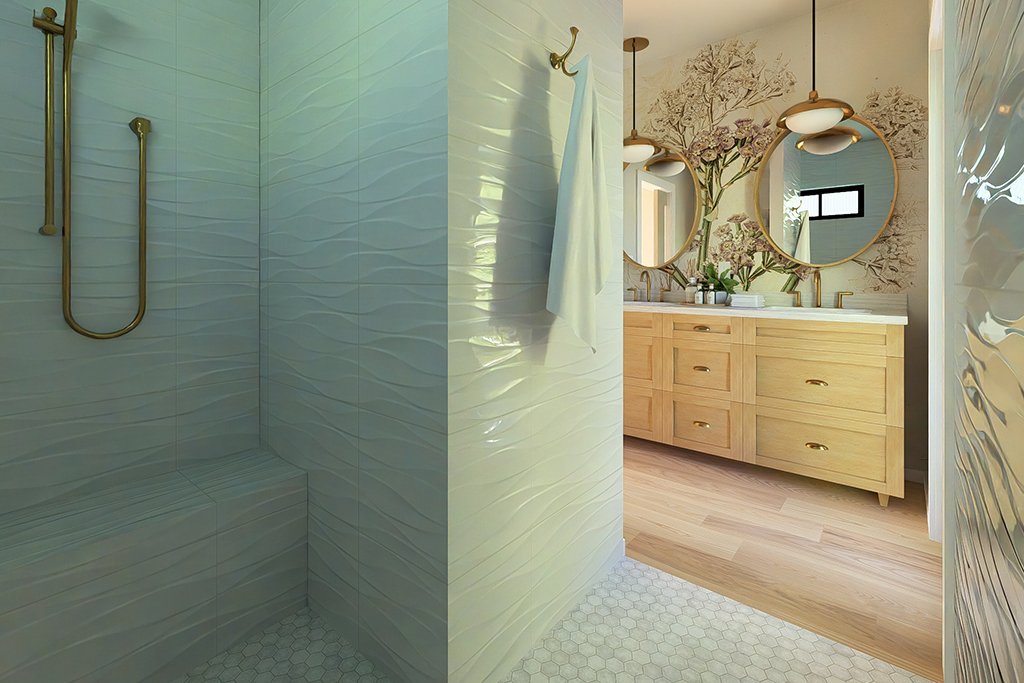

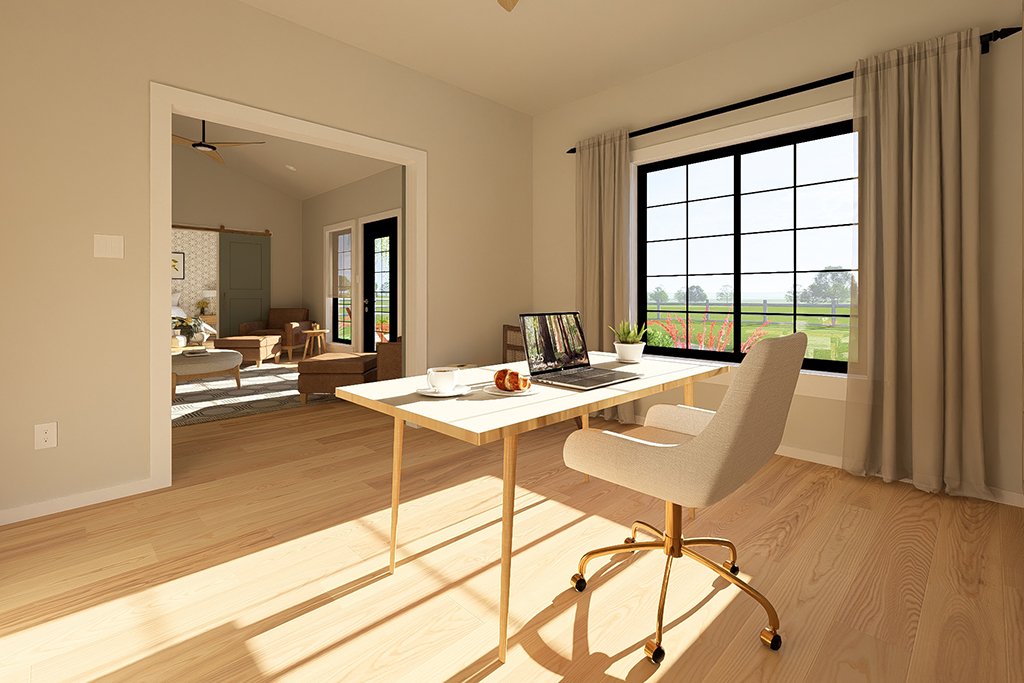

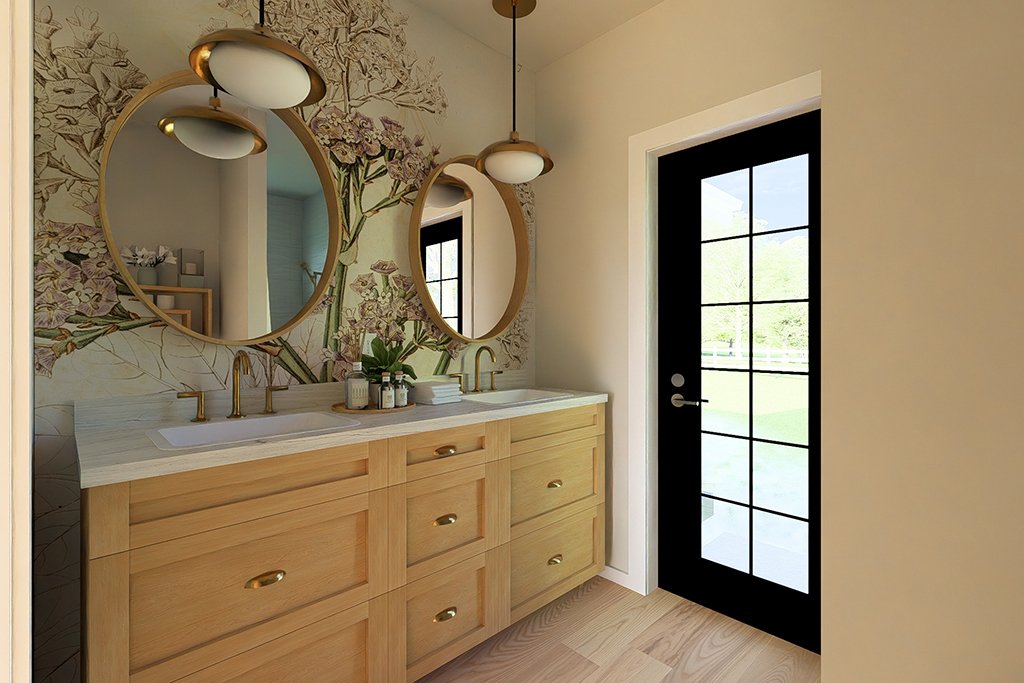

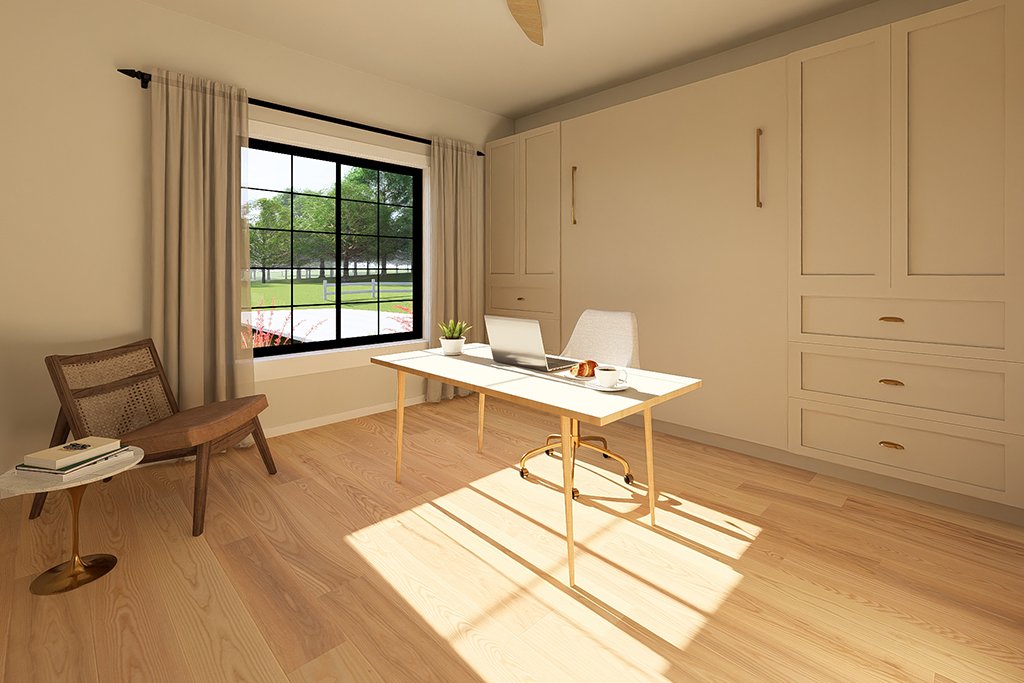

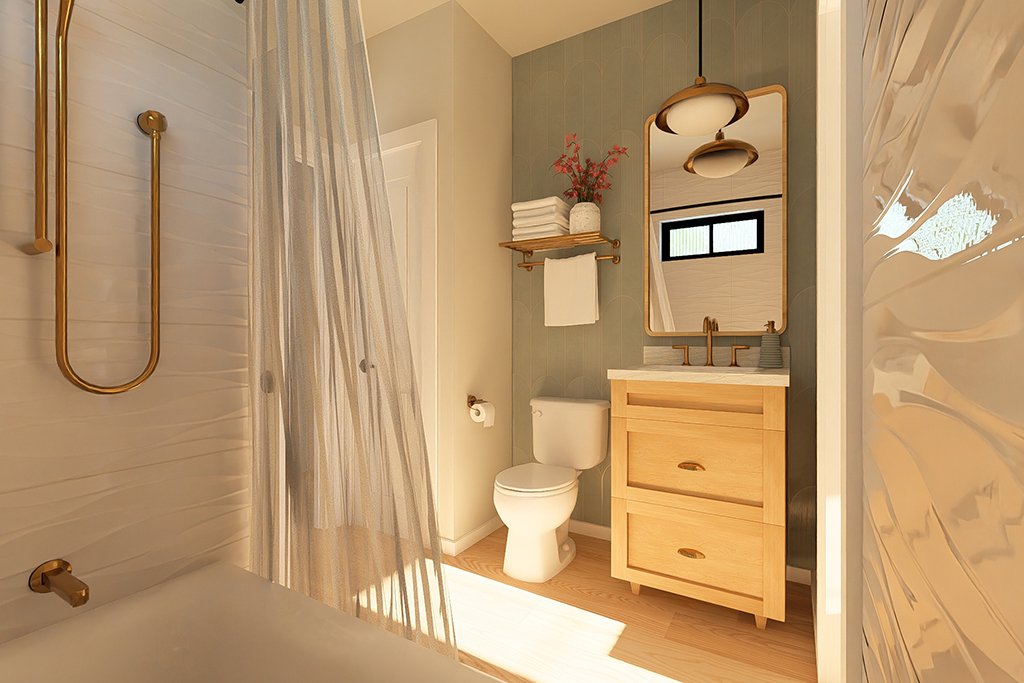

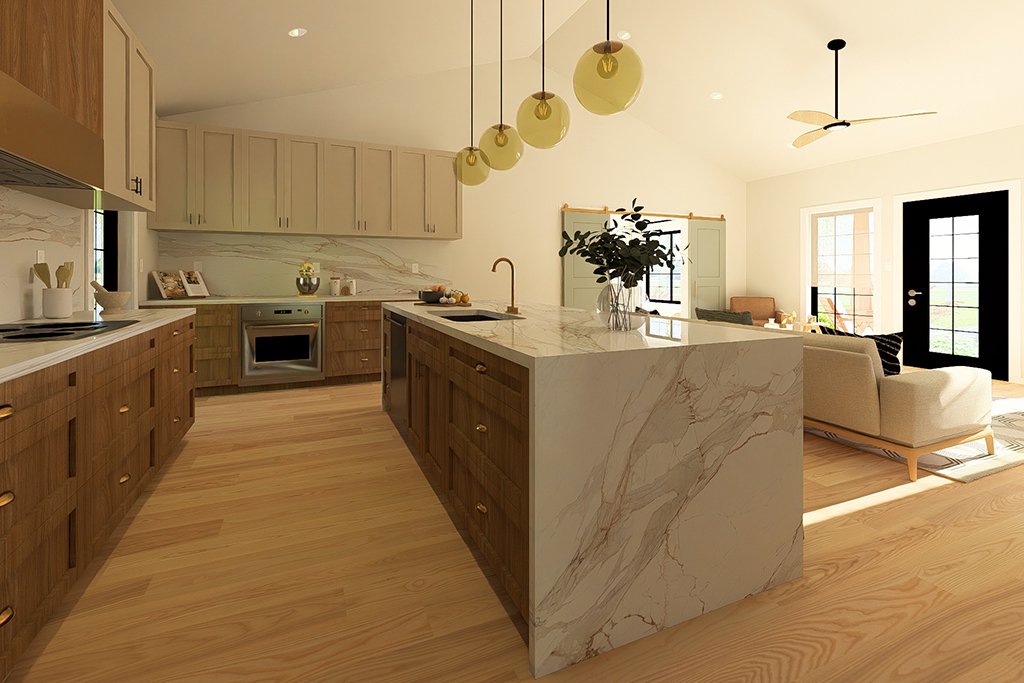

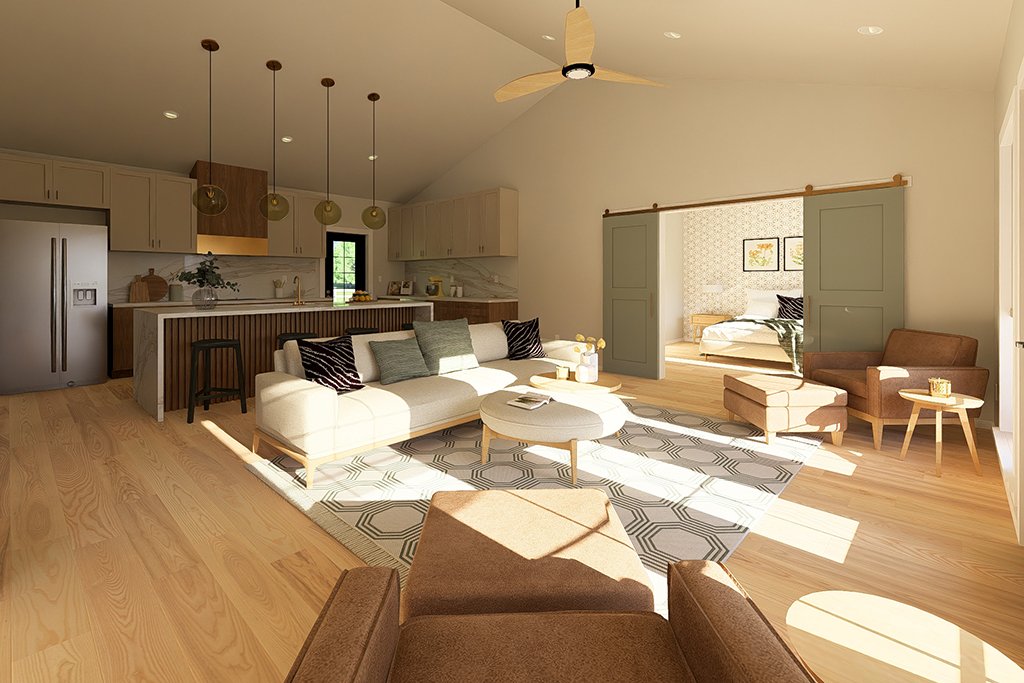

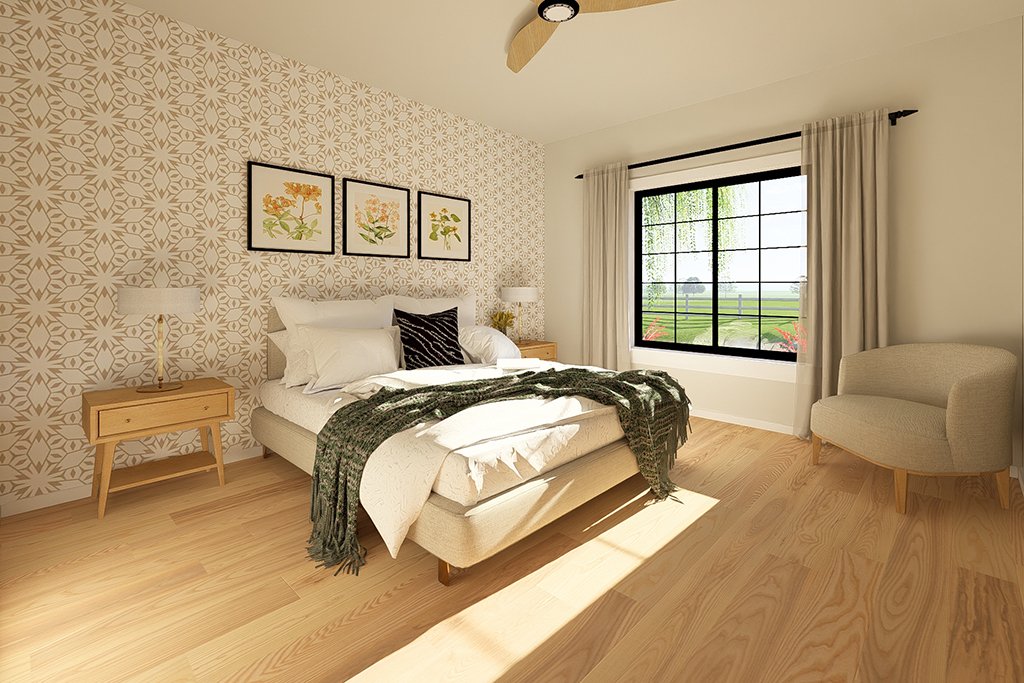

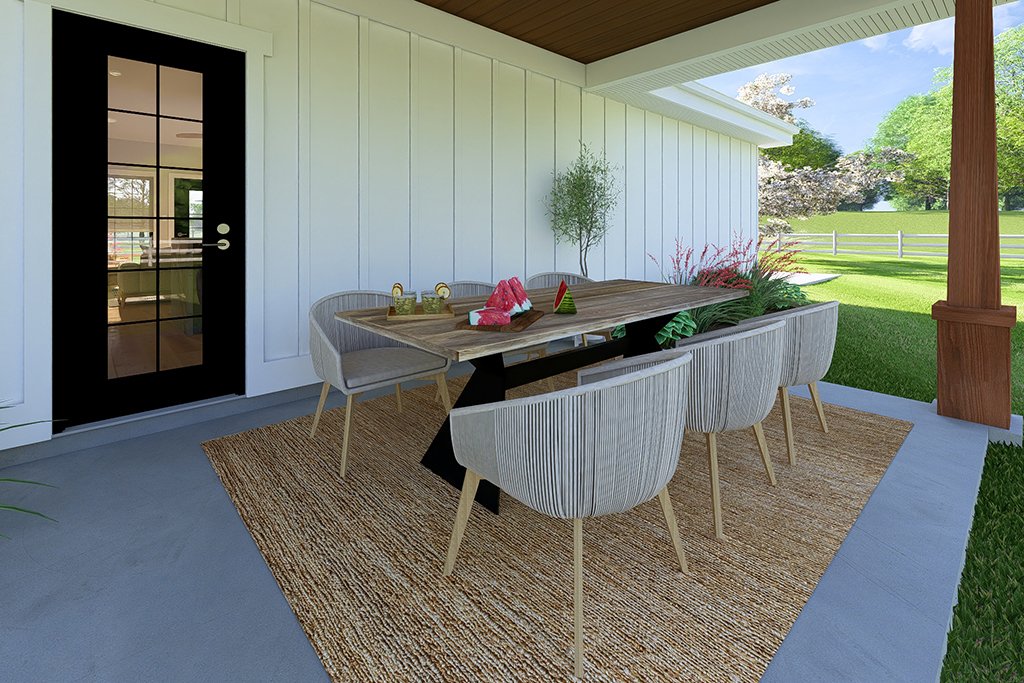

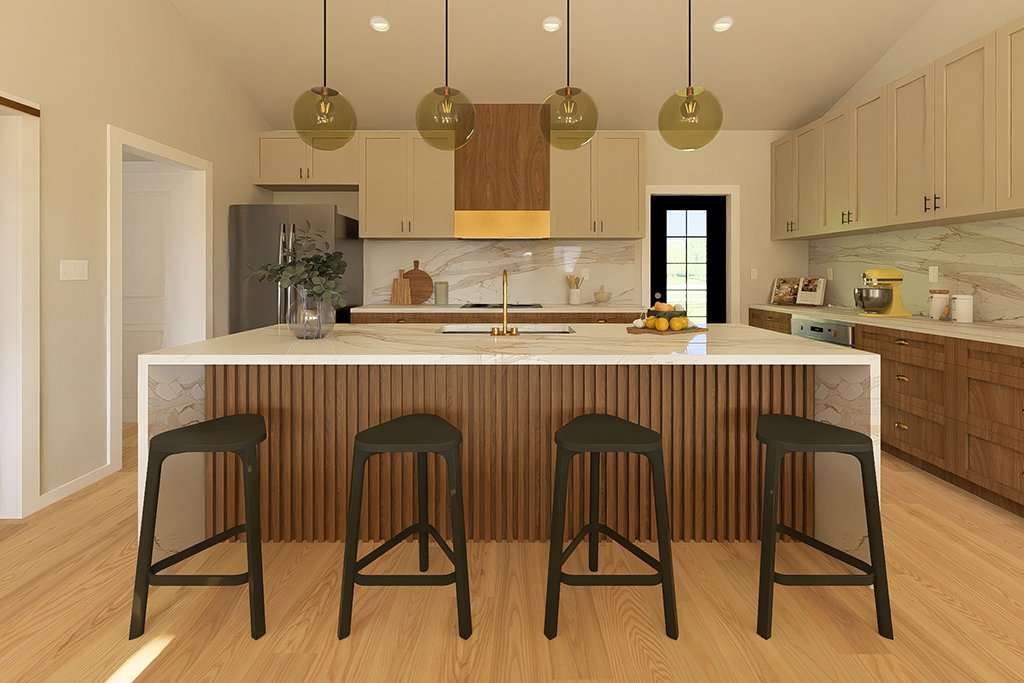

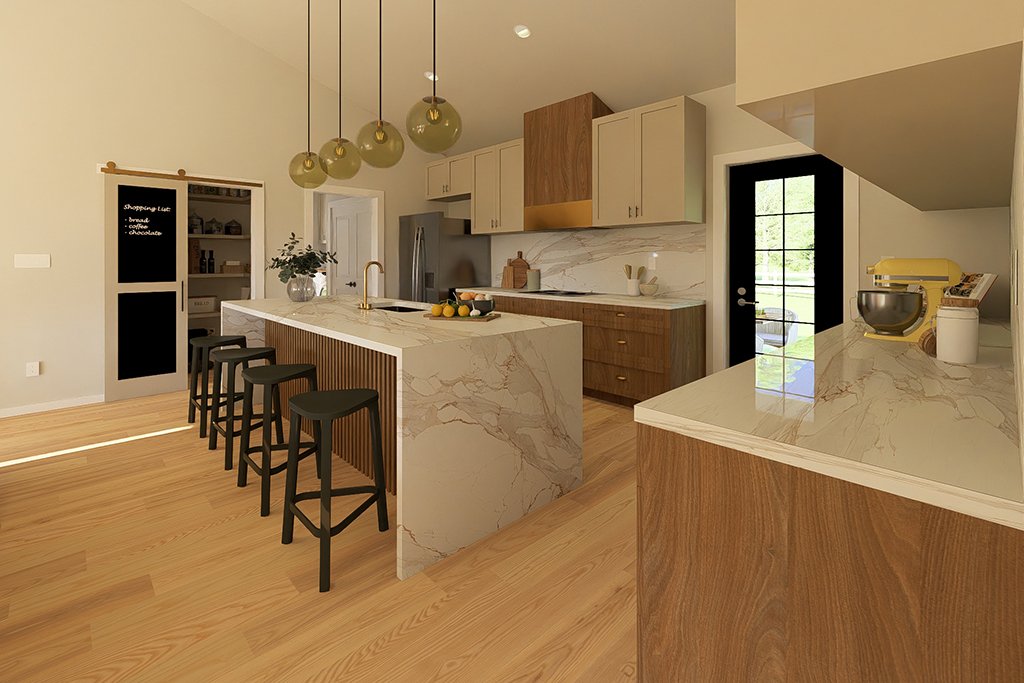

This plan features a spacious kitchen with ample storage and a large 9-1/2 foot long center island which comfortably seats up to four. The kitchen has direct access to both the walk-in pantry and rear dining porch which can be screened in or left open. The optional vaulted ceiling in the living room and kitchen rises to 13-1/2 feet at the center. The barn doors leading into the primary suite and guest room can either be closed for privacy or left open to provide great sightlines through the large 5' wide opening. The modern walk-in shower in the primary bathroom provides both easy access and eliminates the maintenance required by glass doors. The primary bathroom also includes a dual sink vanity and direct backyard access. The primary suite includes both a standard closet and a walk-in closet. This design also features a covered front porch, mudroom/laundry room, linen and coat closets, large mechanical closet and a full bath for guests. The guest room flex space can also be used for a home office or formal dining parties.
Full Specs & Features
Depth : 44'
Height : 20' 1"
Width : 44'
Main Floor : 1232 sq/ft
Porch : 224 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling Details : Optional vaulted ceiling in Living Room and Kitchen (Top of vault 13'-6")
Main Ceiling : 9'
Primary Pitch : 8/12
Roof Framing : Truss
Roof Load : 50
Roof Type : Standard and Scissor
Secondary Pitch : 8/12

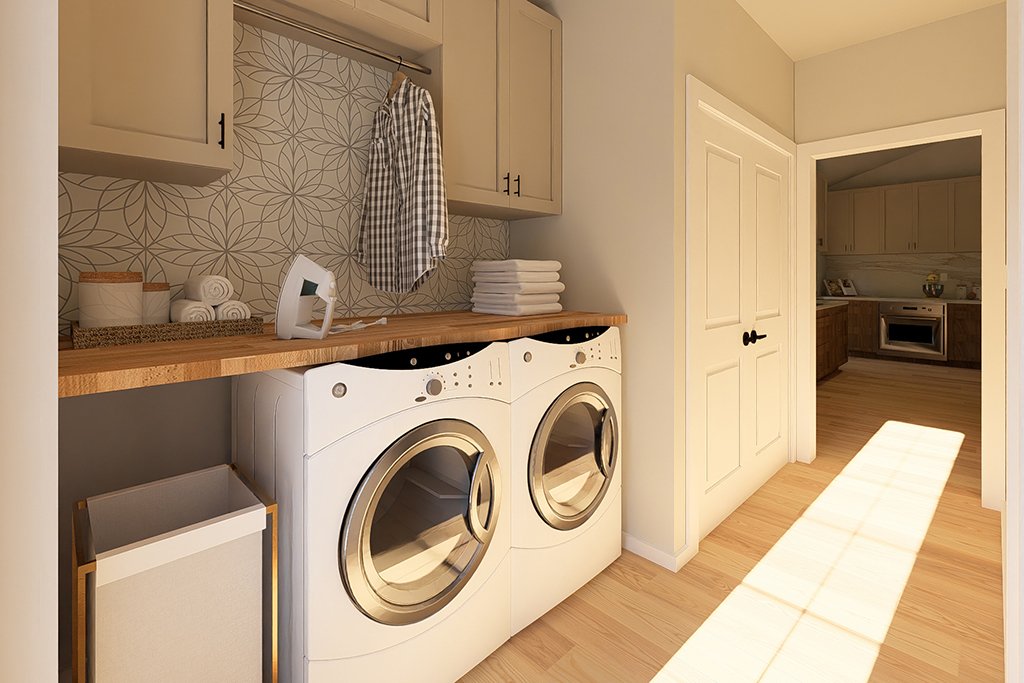

Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : 2x6 or 2x4
Insulation : Batt
Main Floor Bedrooms
Main Floor Master Bedroom

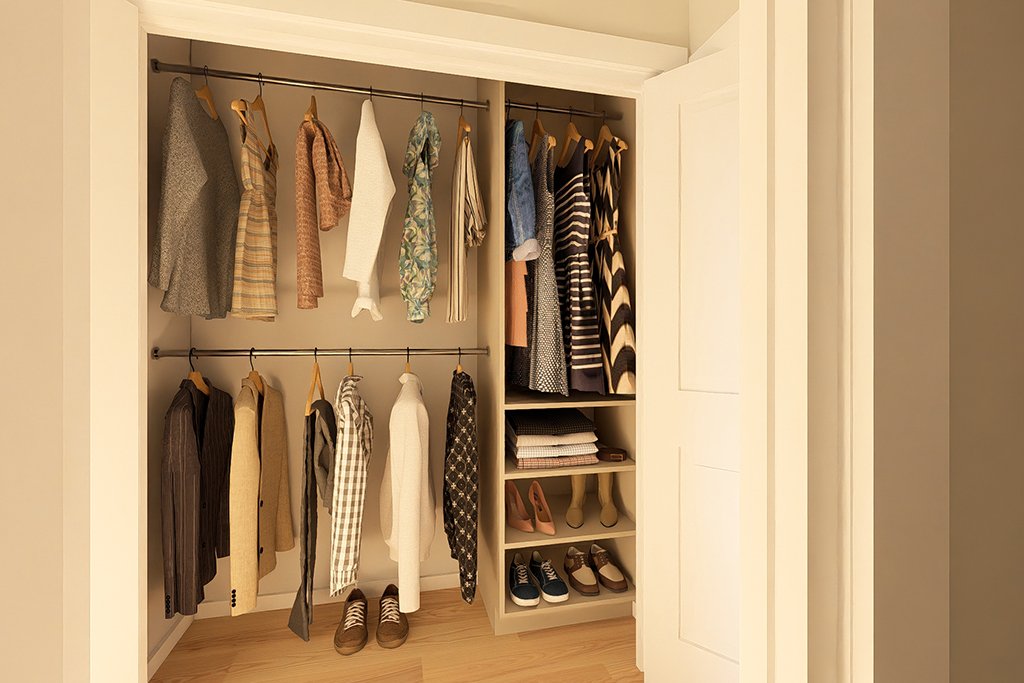

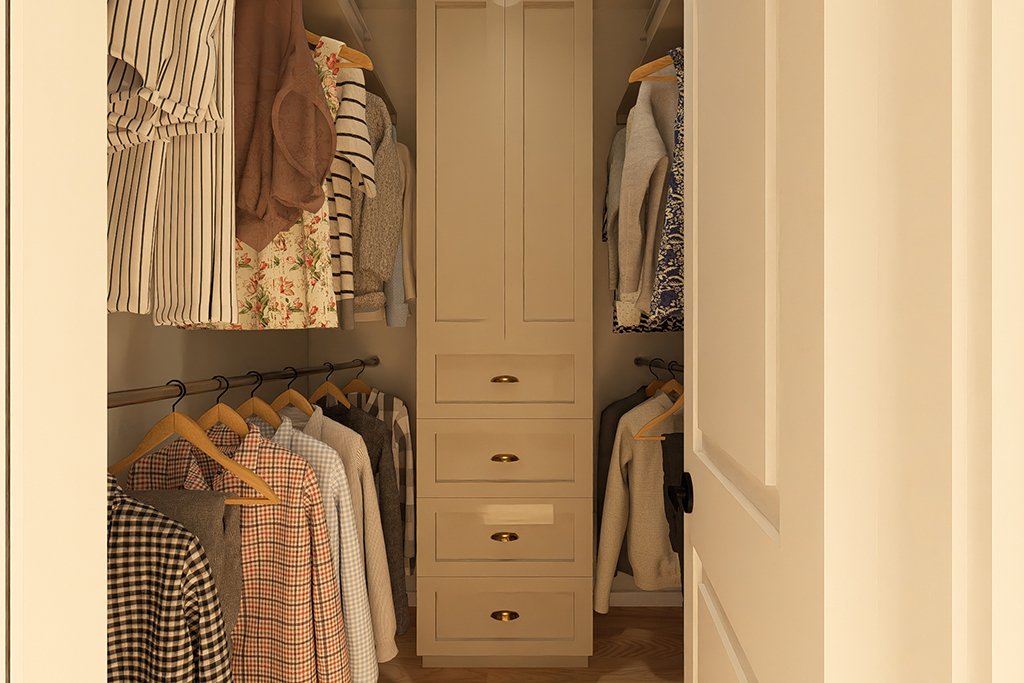

Walk In Closet
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room

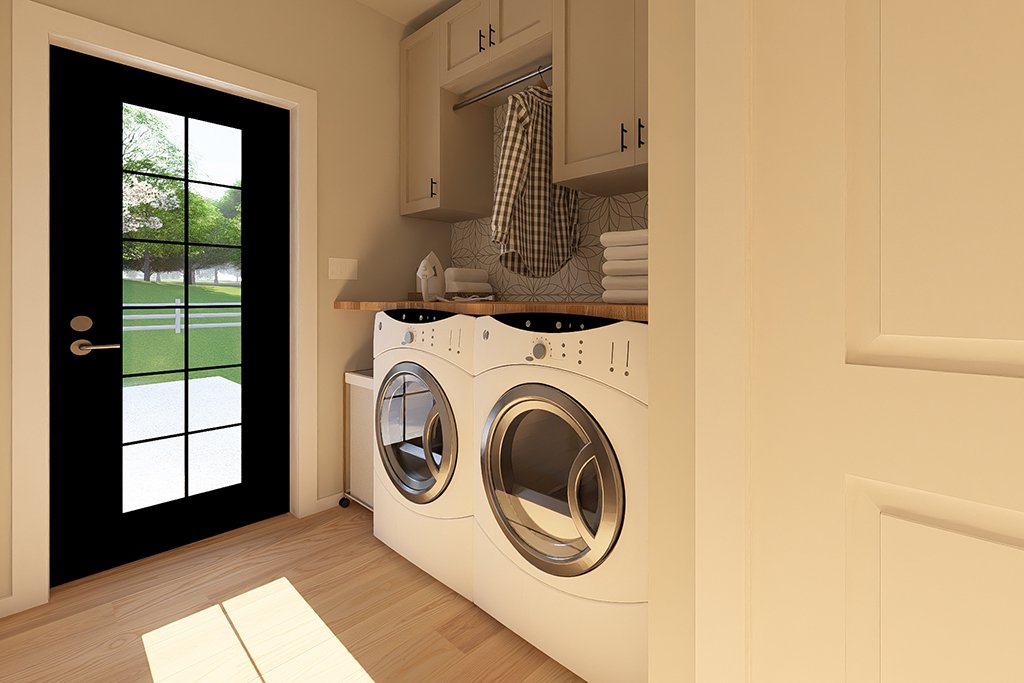

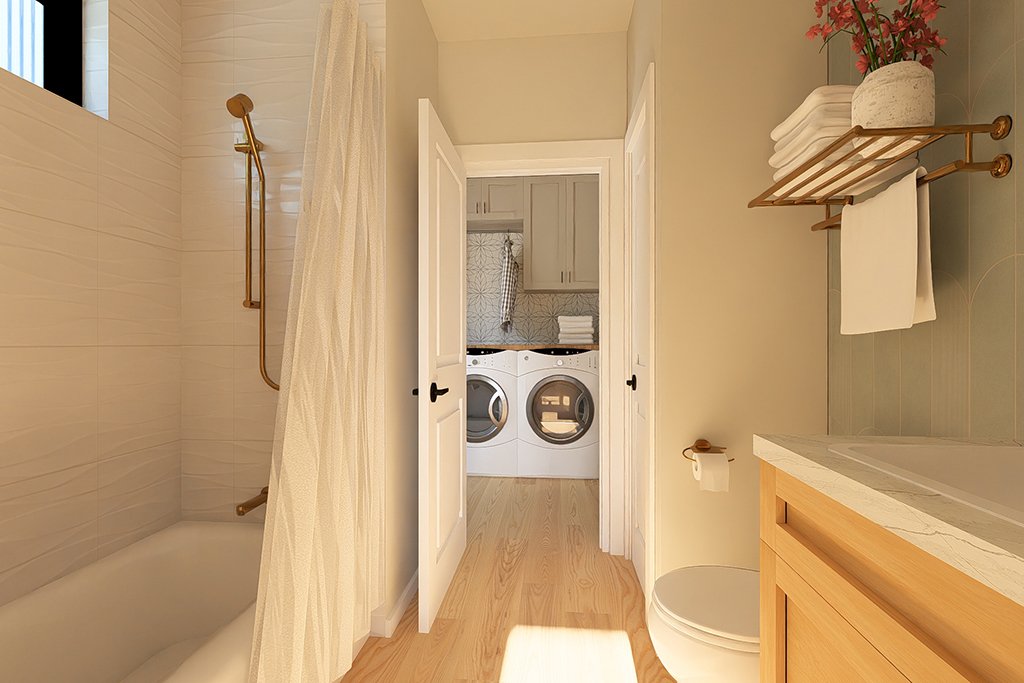

Main Floor Laundry
Master Sitting Area
Suited For Corner Lot
Suited For Sloping Lot
Suited For View Lot

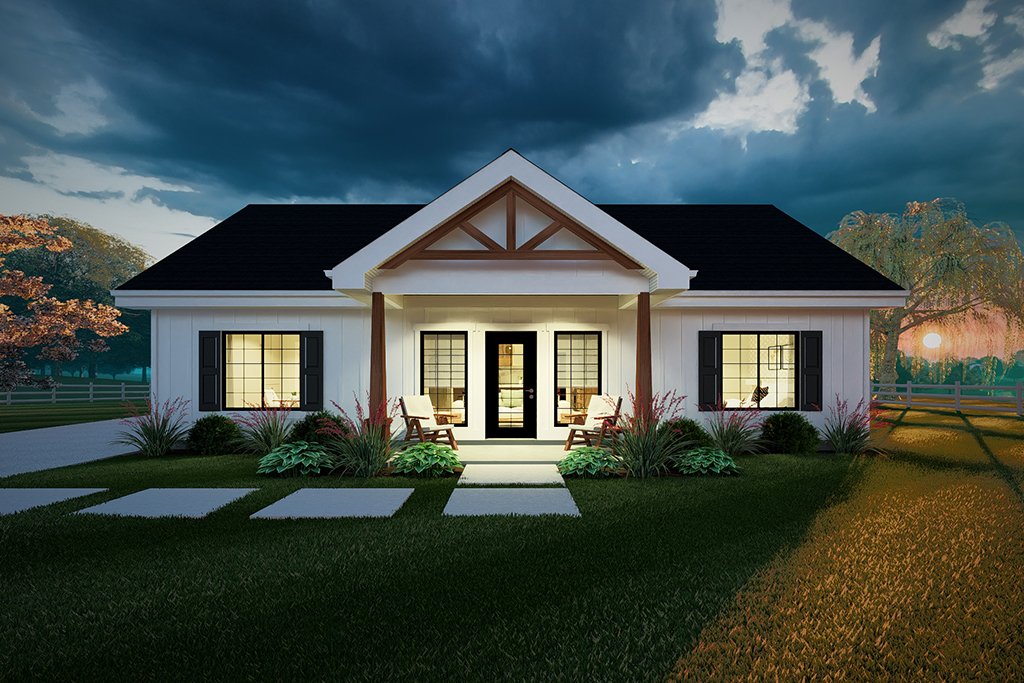

Covered Front Porch
Covered Rear Porch
Economical To Build
Suited For Vacation Home
Energy Efficient Features
What's Included In This Plan Set
» See important
information before purchasing.
Floor Plans Including electrical
Cross Sections and other detail sections when required
Cabinet and Stair Details
Exterior Elevations - All four sides
Cover Page with artists rendering
Misc. Construction and Code Notes
Questions? Call 1-877-222-1762
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
5 Copy and PDF Set:
5 printed plan sets mailed to you plus PDF plan sets are best for fast electronic delivery and inexpensive local printing.
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
A single concrete pour with thicker portions that replace footers under load bearing walls and all perimeter edges.
Ideal for level lot, single layer concrete poured directly on grade.
Stem Wall Foundation:
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.
Ideal for level lot, lower level of home partially or fully underground.
Ideal for sloping lot, lower level of home partially underground.
Walk Out Basement:
Ideal for a sloping lot, lower level with outdoor access.
Wood 2x4 Exterior Walls
Wood 2x6 Exterior Walls
Choose this option to reverse your plans and to have the text and dimensions readable.
Additional Construction Sets:
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design:
Receive an overlay sheet with suggested placement of audio and video components.
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
A spreadsheet of building supplies needed to construct the infrastructure of your new house. Please note materials lists will not reflect add-ons such as alternate foundation and framing options.
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
