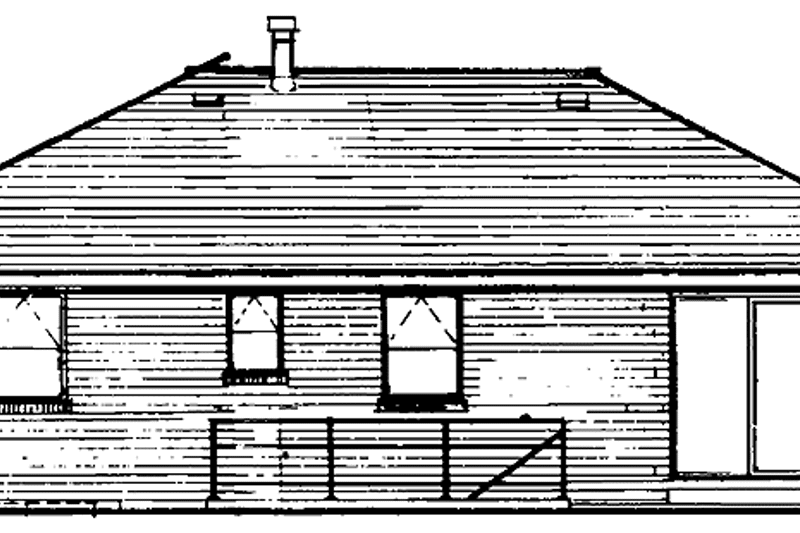

Architectural House Design - Ranch Exterior - Rear Elevation Plan #310-997

Architectural House Design - Ranch Floor Plan - Main Floor Plan #310-997

Jump to:
All (3)
Exterior (2)
Floor plans (1)

Get Personalized Help

Home > Style > Ranch House Plans

Key Specs

1080
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

Additional Construction Sets

$50.00/each

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design

$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide

$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets

$65.00

Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

$845.00

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2024 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 310-997

Home > Style > Ranch House Plans

Key Specs

1080
sq ft

3
Beds

2
Baths

1
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

A circle-head window and brick facade adorn the well-balanced exterior of this compact three-bedroom home. The living room boasts a fireplace, a vaulted ceiling and a wet bar. The nearby country kitchen provides a snack-bar counter that separates it from the living room. Bedrooms include two family bedrooms with a shared hall bath and a master bedroom with a private bath.

Floor Plans

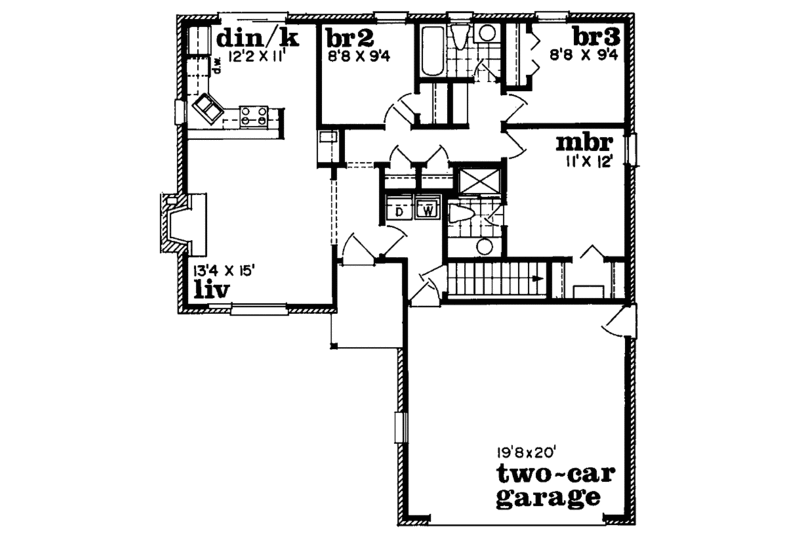

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Full Specs & Features

Dimension

Depth : 48'

Height : 17'

Width : 42'

Area

First Floor: 1080 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Brick

Framing : Wood - 2x6

Bedroom Features

Fireplace

Formal Living Room / Parlor

Outdoor Spaces

Covered Front Porch

Rooms

3rd BR Closet:

15 sq/ft width 5' 8" x depth 2' 8"

Basement Foundation:

1180 sq/ft width 27' 8" x depth 42' 8"

Bedroom 2:

77 sq/ft width 9' 4" x depth 8' 4"

Bedroom 2 Closet:

11 sq/ft width 3' 11" x depth 2' 11"

Bedroom 3:

77 sq/ft width 9' 4" x depth 8' 4"

Bedroom 3 Closet:

11 sq/ft width 3' 11" x depth 2' 11"

Foyer:

36 sq/ft width 8' 4" x depth 4' 4"

Garage:

413 sq/ft width 19' 10" x depth 20' 10"

Hall Closet:

6 sq/ft width 2' x depth 3'

Kitchen:

132 sq/ft width 11' x depth 12'

Living Room:

195 sq/ft width 15' x depth 13'

Master Bathroom:

44 sq/ft width 8' 4" x depth 5' 4"

Master Bedroom:

132 sq/ft width 12' x depth 11'

Master Closet:

28 sq/ft width 4' x depth 7'

What's Included In This Plan Set

See a sample plan set

Cover Sheet: Showing architectural rendering of residence
Floor Plan(s): In general, each house plan set includes floor plans at 1/4" scale with a door and window schedule. Floor plans are typically drawn with 4" exterior walls. However, some plans may have details/sections for both 2"x4" and 2"x6" wall framing. Please see "Exterior Wall Framing" specification above for availability.
Foundation Plan and Details
Electrical Plan with electrical symbols legend: In general, each house plan set includes an electrical plan which will show the locations of lights, receptacles, switches, etc.
Roof: In general each house plan set may include a roof drainage plan which will show the layouts of all roof sections/planes.
Exterior Elevations: In general, each house plan set includes all applicable front, sides and rear elevations, as well as any special exterior details.
Interior Elevations: Where applicable, each house plan set includes relevant interior elevations, including cabinets, cabinet details, columns and walls with unique conditions.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set:
$845.00

5 printed plan sets mailed to you.

8 Copy Set:
$985.00

8 printed plan sets mailed to you.

PDF Set:
$1135.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Reproducible Set:
$1135.00

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Single Set:
$790.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6 Exterior Walls

Additional Options

Additional Construction Sets:
$50.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$100.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$39.00

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Mirror Reversed Sets:
$65.00

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
