PLAN 453-440

Select Plan Set Options

What's included?
Additional Construction Sets
$60.00/each
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Mirror Reversed Sets
$50.00
Printed sets showing plan in reverse, text and dimensions will be backwards.
Subtotal
$2400.00
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Questions?
Questions?

We do our best to get back within 24 - 48 business hours.
Need an answer fast? Call us now.
Hours  Mon-Fri, 9 am - 8:30 pm (EST)

PLAN 453-440

Key Specs


9838
sq ft

5
Beds

7.5
Baths

2
Floors

5
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description

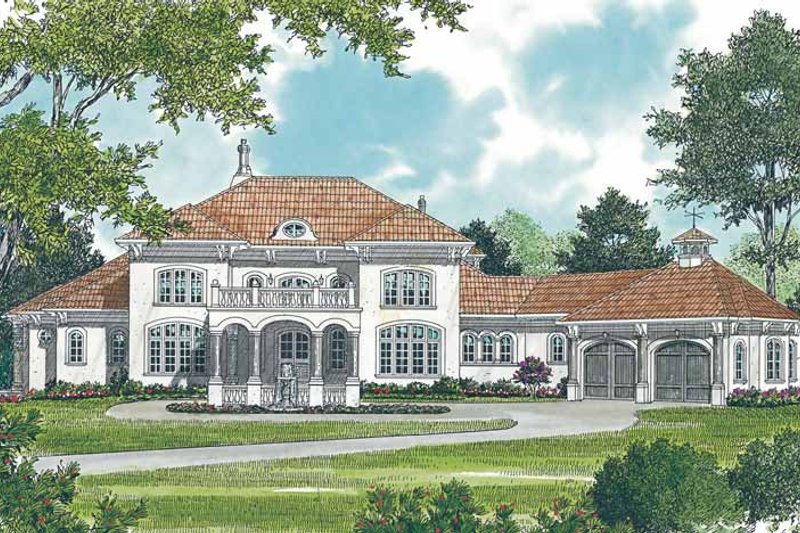

From the porte cochere, through the portico, and into the foyer--with a gorgeous semi-circular staircase--this European design oozes elegance. Multipaned windows and an attractive cupola over the garage further enhance the facade. A lively kitchen is situated near the family room past a bar, the hearth-warmed great room, and the dining room. The first-floor master suite is a study in opulence. Four more bedrooms--one with a sitting area--with their own private baths comprise the second floor. The lower level is devoted to relaxation and entertainment--check out the theater, exercise room, rec room, and massage room!

Floor Plans

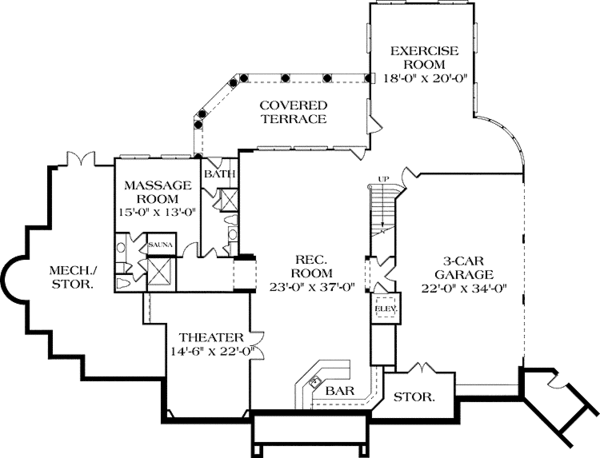

Floor Plan - Lower Floor Plan
Reverse
Save Mediterranean Floor Plan - Lower Floor Plan Plan #453-440

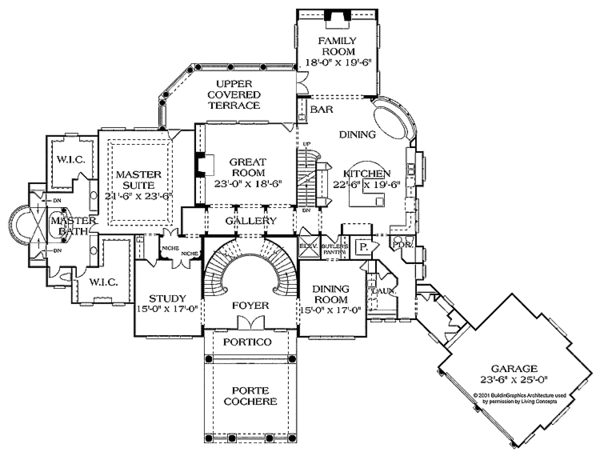

Floor Plan - Main Floor Plan
Reverse
Save Mediterranean Floor Plan - Main Floor Plan Plan #453-440

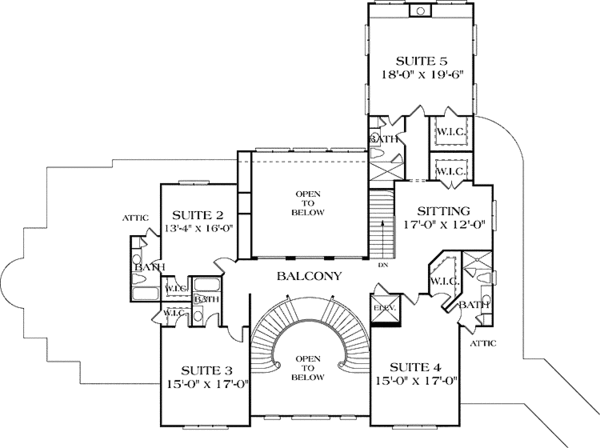

Floor Plan - Upper Floor Plan
Reverse
Save Mediterranean Floor Plan - Upper Floor Plan Plan #453-440

Full Specs & Features


Dimension
Depth : 99' 8"
Height : 39'
Width : 132' 7"
Area
Basement Living: 2834 sq/ft
First Floor: 4536 sq/ft
Second Floor: 2468 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 7:12
Roof Framing : Conventional
Roof Type : Tile
Exterior Wall Framing
Exterior Wall Finish : Stucco
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Butler's Pantry
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Media Room
Storage Area
Garage Features
Side Entry Garage
Outdoor Spaces
Balcony
Courtyard
More
Wheelchair Adaptable
Rooms

Bedroom 2:

213 sq/ft width 13' 4" x depth 16'

Bedroom 3:

255 sq/ft width 15' x depth 17'

Bedroom 4:

255 sq/ft width 15' x depth 17'

Bedroom 5:

351 sq/ft width 18' x depth 19' 6"

Exercise Room:

360 sq/ft width 18' x depth 20'

Family Room:

351 sq/ft width 18' x depth 19' 6"

Game Room:

851 sq/ft width 23' x depth 37'

Garage:

587 sq/ft width 23' 6" x depth 25'

Garage Two:

748 sq/ft width 22' x depth 34'

Grand Room:

425 sq/ft width 23' x depth 18' 6"

Kitchen:

438 sq/ft width 22' 6" x depth 19' 6"

Master Bedroom:

505 sq/ft width 21' 6" x depth 23' 6"

Sitting Area:

204 sq/ft width 17' x depth 12'

Study:

255 sq/ft width 15' x depth 17'

Theatre Room:

319 sq/ft width 14' 6" x depth 22'

What's Included In This Plan Set


This plan typically includes:
  • Dimensioned and detailed Foundation plan (type as listed on home plan description)
  • Dimensioned and detailed floor plans
  • Framing plans
  • Complete front, side and rear elevations
  • Roof plan
  • Typical building sections (as deemed necessary for construction)
  • Typical foundation details, wall sections, and cornice details necessary for construction
  • Separate electrical plan (may be shown on floor plans in some cases)
» See important information before purchasing.

Plan Set

PDF Set :
$2400.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$2400.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Daylight Basement:
$0.00
Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x4:
$0.00
Wood 2x4

Additional Options

Additional Construction Sets :
$60.00
Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design :
$100.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$39.00
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Home Furniture Planner :
$19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
$200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets :
$50.00
A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
