Thinking about adding on to your home? This lovely design is a win-win: a two-car garage on the bottom and comfortable living space above. If you've got frequent guests or a live-in relative (or perhaps Airbnb customers), they'll appreciate the privacy of this one-bedroom unit. The living room opens completely to the kitchen for a contemporary feeling, with windows letting in lots of light. A full bath is accessed from both the kitchen and the bedroom, taking away the awkwardness of guests having to walk through the bedroom to use the facilities. Check out the walk-in closet!
Floor Plans

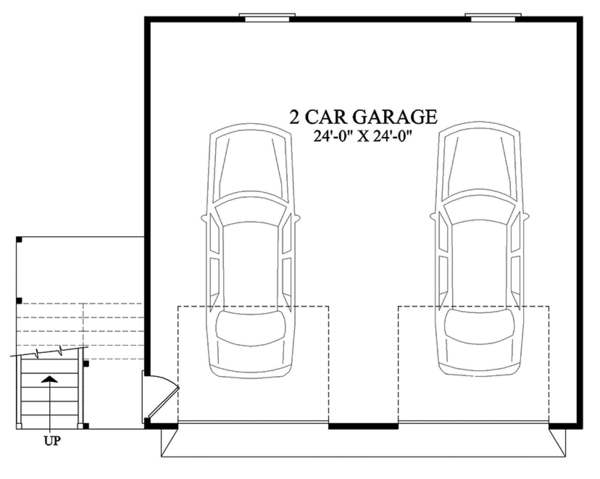

Floor Plan - Main Floor
Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 24' 8"
Height : 23' 6"
Width : 26' 2"
Area
Garage: 646 sq/ft
Second Floor: 646 sq/ft height 9'
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Roof Framing : Conventional
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding
Framing : Wood - 2x4
Bedroom Features
Guest Suite
Walk In Closet
Additional Room Features
Open Floor Plan
Garage Features
Front Entry Garage
Rooms
Bath:
62 sq/ft width 12' 4" x depth 5'
Bedroom:
152 sq/ft width 12' 4" x depth 12' 4"
Garage:
646 sq/ft width 24' x depth 24'
Kitchen:
142 sq/ft width 12' 4" x depth 11' 6"
Studio:
154 sq/ft width 12' 4" x depth 12' 6"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Designer’s rendering of front elevations
- Foundation and dimensioned floor plans
- Electrical plans
- Section through house
- All exterior elevation
- Selected interior elevations; door and window sizes; fireplace details; stair details; molding details; cabinet details; roof plan and exterior details.
