PLAN 929-895

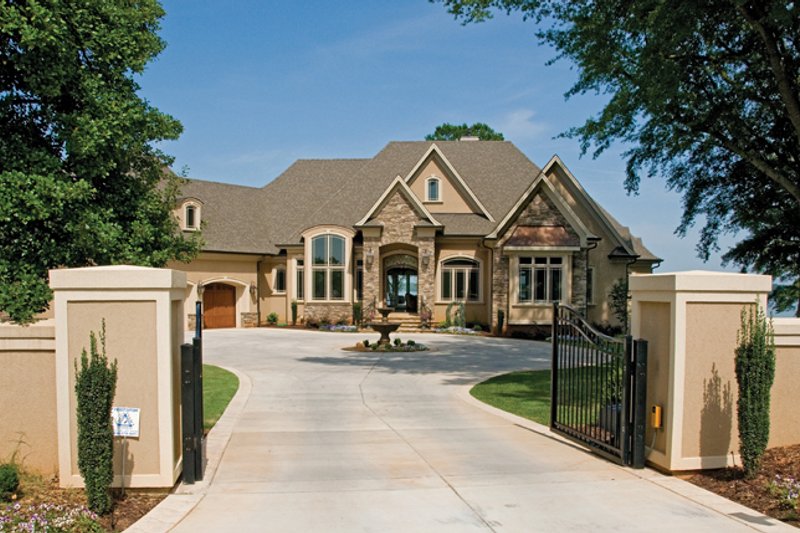

Photographs may show modified designs.
- Jump to:
- All (20)
- Floor plans (3)
Get Personalized Help
Key Specs
6155
sq ft
4
Beds
4
Baths
1
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 929-895
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

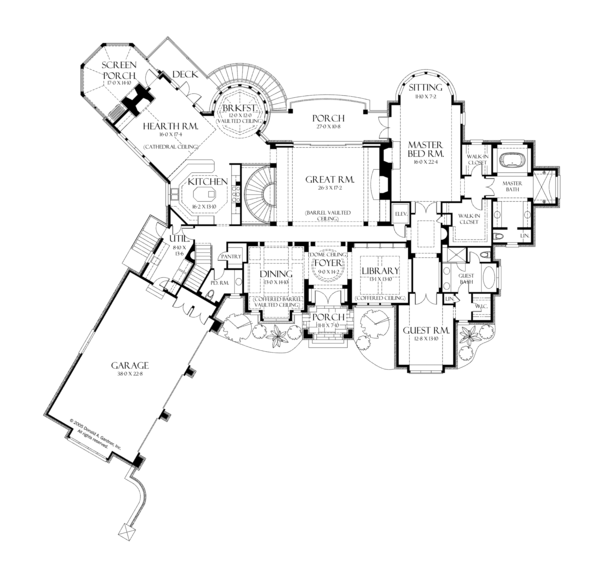

Floor Plan - Main Floor

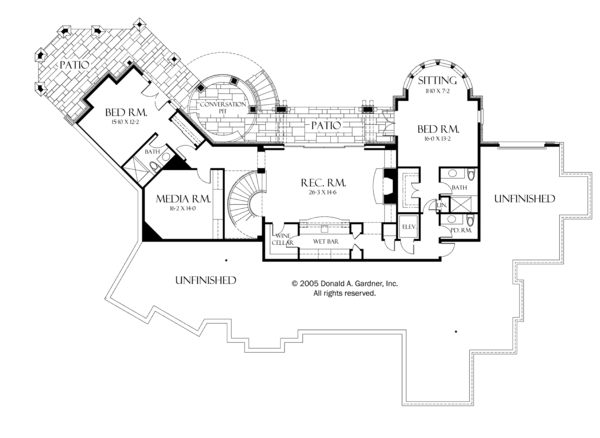

Floor Plan - Lower Floor

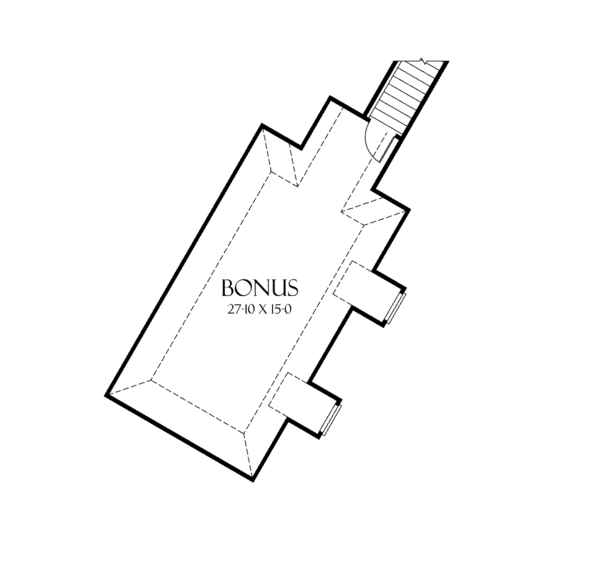

Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 100' 7"
Height : 44' 11"
Width : 119' 2"
Area
Basement Living: 2067 sq/ft height 10'
Basement Unfinished: 1989 sq/ft height 10'
Bonus: 523 sq/ft height 10'
Deck: 117 sq/ft
First Floor: 4088 sq/ft height 10'
Garage: 999 sq/ft height 10'
Roof
Primary Pitch : 13:12
Roof Framing : Conventional
Roof Type : Metal
Secondary Pitch : 15:12
Exterior Wall Framing
Exterior Wall Finish : Stone/Stucco
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Open Floor Plan
Unfinished Future Space
Outdoor Spaces
Courtyard
Deck
Outdoor Fireplace
More
Wheelchair Adaptable
Rooms
Bedroom 3:
width 15' 10" x depth 12' 2"
Bedroom 4:
width 16' x depth 13' 2"
Bonus:
width 27' 10" x depth 15'
Breakfast Nook:
width 12' x depth 12'
Dining:
width 13' x depth 14' 10"
Foyer:
width 9' x depth 14' 2"
Garage:
width 38' x depth 22' 8"
Great Room:
width 26' 3" x depth 17' 2"
Guest Room:
width 12' 8" x depth 13' 10"
Hearth Room:
width 16' x depth 17' 4"
Kitchen:
width 16' 2" x depth 13' 10"
Library:
width 13' 1" x depth 13' 10"
Master Bedroom:
width 16' x depth 22' 4"
Master Sitting:
width 11' 10" x depth 7' 2"
Media Room:
width 16' 2" x depth 14'
Porch - Front:
width 11' 1" x depth 7' 10"
Porch - Screened:
width 17' x depth 14' 10"
Recreation Room:
width 26' 3" x depth 14' 6"
Sitting:
width 11' 10" x depth 7' 2"
Utility Room:
width 8' 10" x depth 13' 6"
What's Included In This Plan Set
Purchasing a CAD set gives you an unlimited build license. All other plan sets, excluding the Single Set for bidding purposes, allow you to build the home one time.
- Cover Sheet - A rendering of the front exterior of the house.
- Foundation Plan - This plan gives the foundation layout, including support walls, excavated and unexcavated areas, if any, foundation notes and details, and floor framing.
- Detailed Floor Plans - These plans show the layout of each floor of the house. Rooms and interior spaces are carefully dimensioned and keys are given for cross-section details provided later in the plans, as well as window and door schedules. These plans may also show the location of kitchen appliances and plumbing fixtures, and may suggest locations for electrical fixtures, switches and outlets.
- Interior Elevations - The interior elevation drawings show a suggested layout design of cabinets, utility rooms, fireplaces, bookcases, built-in units and other special interior features depending on the nature and complexity of the item.
- Roof Plan - The roof plan shows a bird's eye view of the overall layout of the roof, ridges, valleys, and slopes.
- Door and window schedules - Sizes, quantities and descriptions of all doors and windows shown on the plan.
- Exterior Elevations - Included are front, rear, left and right sides of the house. Exterior materials, details and measurements are also given.
- Cross-Section / Wall Section Details - Important changes in floor, ceiling and roof heights or the relationship of one level to another are called out. Also shown, when applicable, are exterior details such as railing and banding.
- Structural Plan - Overall layout and necessary details for the ceiling, second-floor framing (if applicable) and roof construction. If trusses are used, it's suggested that you use a local truss manufacturer to design your trusses to comply with your local codes and regulations.
- Each plan is designed to be consistent with CABO One and Two Family Dwelling Code or the International Residential Code in effect at the time the plan was created. Modifications may be necessary to meet applicable building codes, ordinances, local climatic, and geographical design criteria. Consult a builder, architect or other construction professional as necessary. Manufacturer instructions should be followed for all materials, appliances, and systems. Heating/air conditioning layouts, plumbing pipe layouts, and electrical wiring layouts are not included. Consult a local mechanical contractor for systems suitable for local climate conditions.
Plan Set
$2486.25
$4335.00
$2316.25
Foundation
$0.00
Framing
$0.00
Additional Options
$233.75
$140.25
$33.15
$140.25
$289.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
