PLAN 928-173

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #928-173

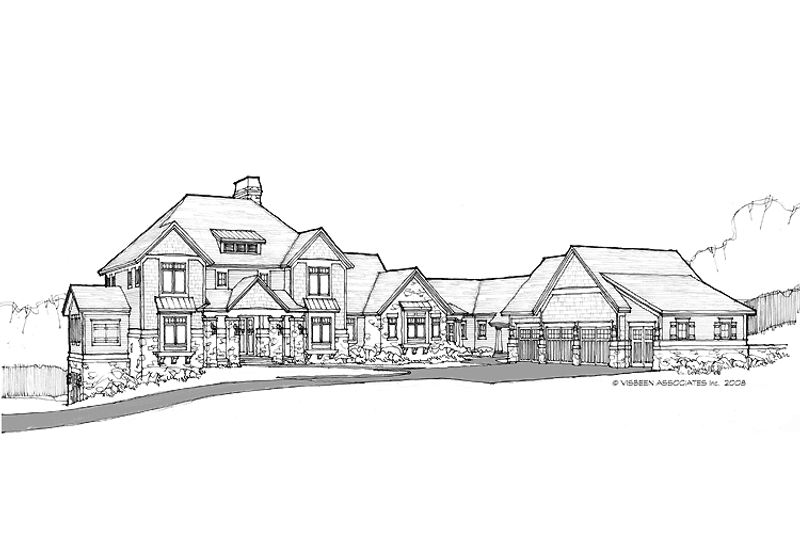

Architectural House Design - Craftsman Exterior - Front Elevation Plan #928-173
