Key Specs
5705
sq ft
6
Beds
4.5
Baths
1
Floors
4
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 1060-27
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description

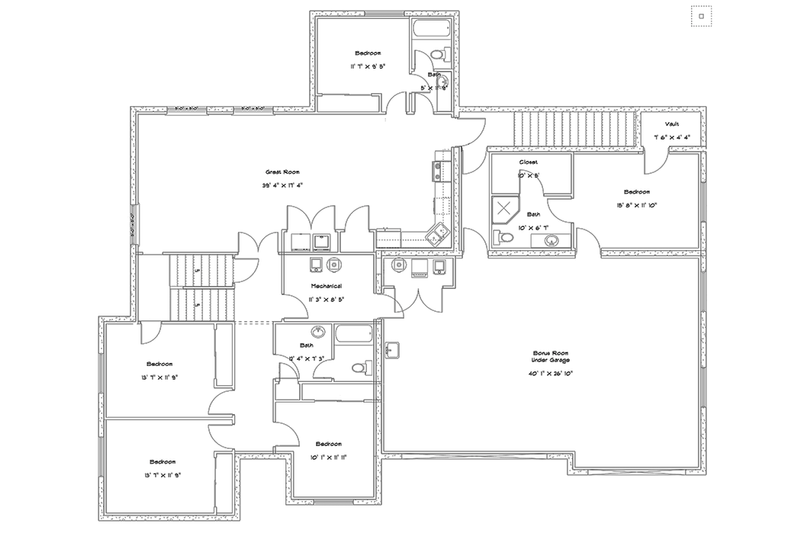

Floor Plans
Full Specs & Features
Dimension
Depth : 64'
Height : 20' 3"
Width : 76' 3"
Area
Basement Living: 3568 sq/ft
First Floor: 2137 sq/ft height 9'
Garage: 1597 sq/ft
Roof
Primary Pitch : 5:12
Roof Framing : Truss
Roof Type : Asphalt
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Walk In Pantry Cabinet Pantry
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Media Room
Mud Room
Open Floor Plan
Garage Features
Front Entry Garage
Tandem Garage
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bath 2:
59 sq/ft width 5' x depth 11' 9"
Bath 3:
89 sq/ft width 12' 4" x depth 7' 3"
Bath 4:
66 sq/ft width 10' x depth 6' 7"
Bedroom 2:
109 sq/ft width 11' 7" x depth 9' 5"
Bedroom 3:
160 sq/ft width 13' 7" x depth 11' 9"
Bedroom 4:
160 sq/ft width 13' 7" x depth 11' 9"
Bedroom 5:
120 sq/ft width 10' 1" x depth 11' 11"
Bedroom 6:
185 sq/ft width 15' 8" x depth 11' 10"
Bedroom 6 Closet:
50 sq/ft width 10' x depth 5'
Bonus Room:
1076 sq/ft width 40' 1" x depth 26' 10"
Covered Front Porch:
44 sq/ft
Covered Rear Porch:
355 sq/ft
Dining Room:
200 sq/ft width 17' x depth 11' 9"
Entry:
58 sq/ft width 5' 9" x depth 10' 1"
Family Room:
381 sq/ft width 22' x depth 17' 3"
Formal Living Room:
125 sq/ft width 11' 3" x depth 11' 1"
Garage:
1597 sq/ft width 40' 1" x depth 44' 10"
Great Room:
682 sq/ft width 39' 4" x depth 17' 4"
Kitchen:
294 sq/ft width 17' x depth 17' 3"
Laundry/ Mud Room:
218 sq/ft width 11' 3" x depth 19' 5"
Master Closet:
67 sq/ft width 5' 9" x depth 11' 8"
Master Bath:
140 sq/ft width 12' x depth 11' 8"
Master Bedroom:
199 sq/ft width 16' 7" x depth 12'
Mechanical:
95 sq/ft width 11' 3" x depth 8' 5"
Pantry:
63 sq/ft width 10' x depth 6' 4"
Vault:
32 sq/ft width 7' 6" x depth 4' 4"
What's Included In This Plan Set
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.

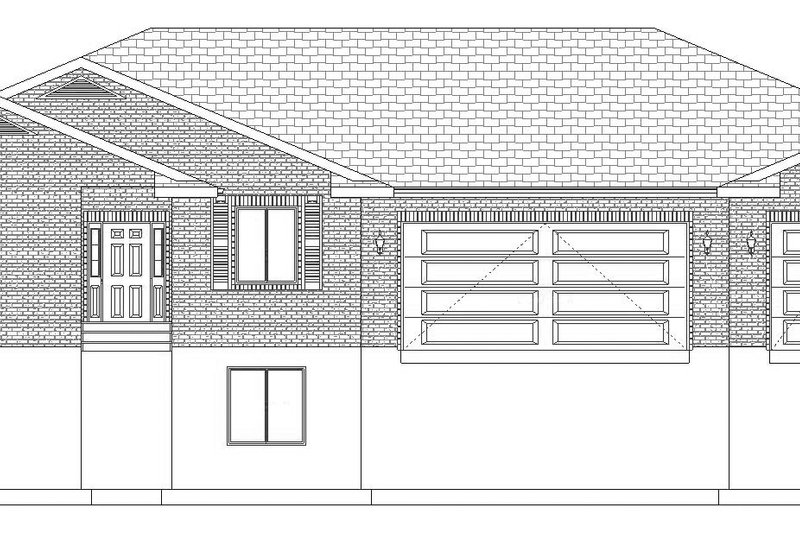

- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
