PLAN 928-285
Key Specs
5270
sq ft
4
Beds
4.5
Baths
2
Floors
3
Garages
Cost to Build Reports Only $19.99 for a Limited Time!
This report will provide you cost estimates based on location and building materials.
Get Cost-To-Build Report
Or order by phone: 1-877-222-1762
Questions?
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Phone: 1-877-222-1762
Hours: Mon-Fri, 9AM - 8:30PM (EST)
See our Terms & Conditions and Privacy Policy.
PLAN 928-285
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description

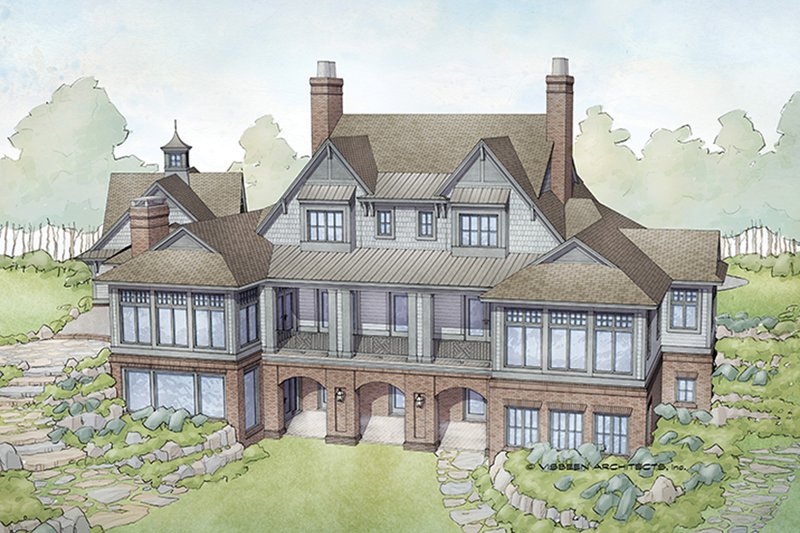

This spacious family home from Visbeen Architects holds all kinds of possibilities for the future with an optional guest apartment that's perfect for an in-law or guests and a basement that can be finished to include another bedroom and recreational spaces. The main level features a very open layout that opens to the back patio via three sets of French doors. More French doors link the patio to the luxurious master suite (check out the dressing room!) and the sunroom. Double islands provide lots of space in the kitchen. Other highlights include the walk-in pantry, the large laundry room, and three second-floor bedroom suites.
Floor Plans

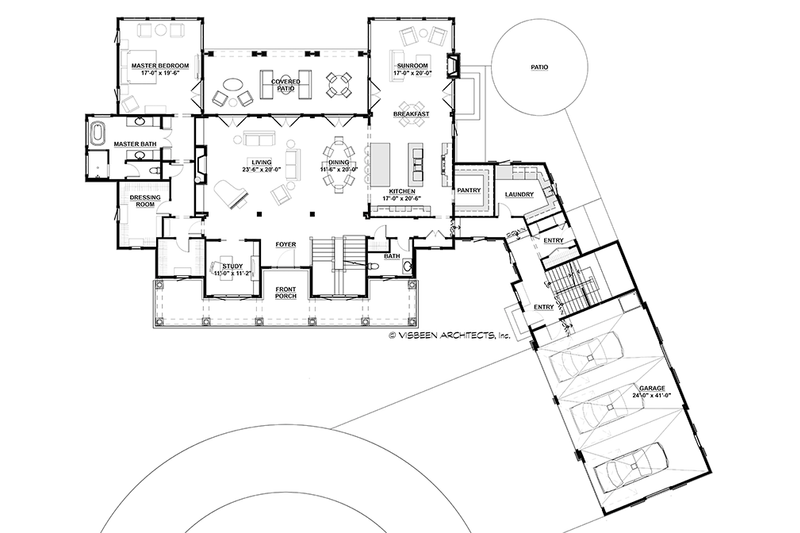

Floor Plan - Main Floor

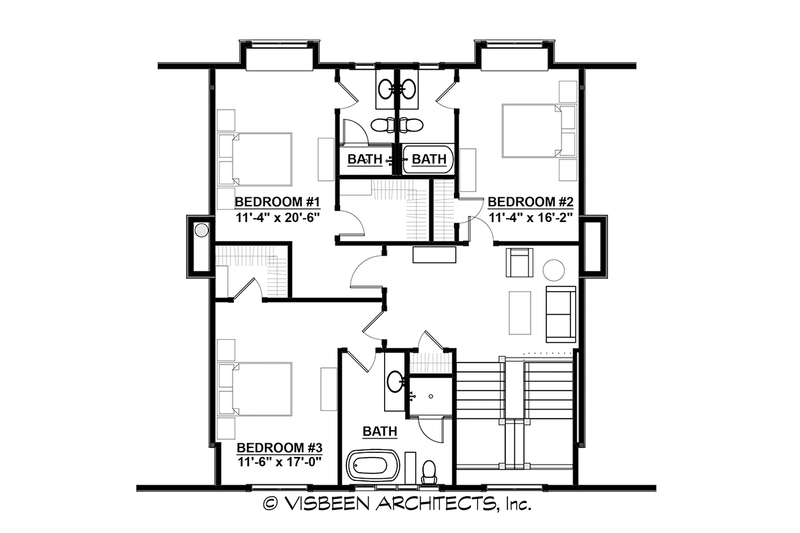

Floor Plan - Upper Floor

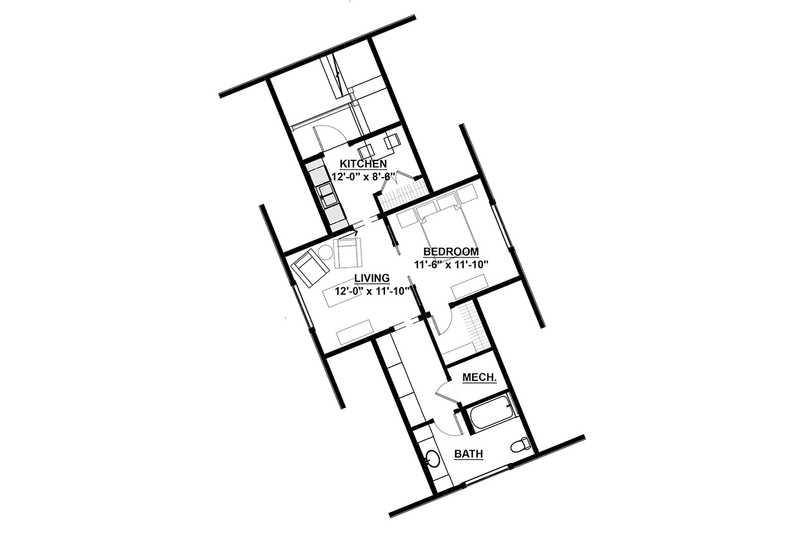

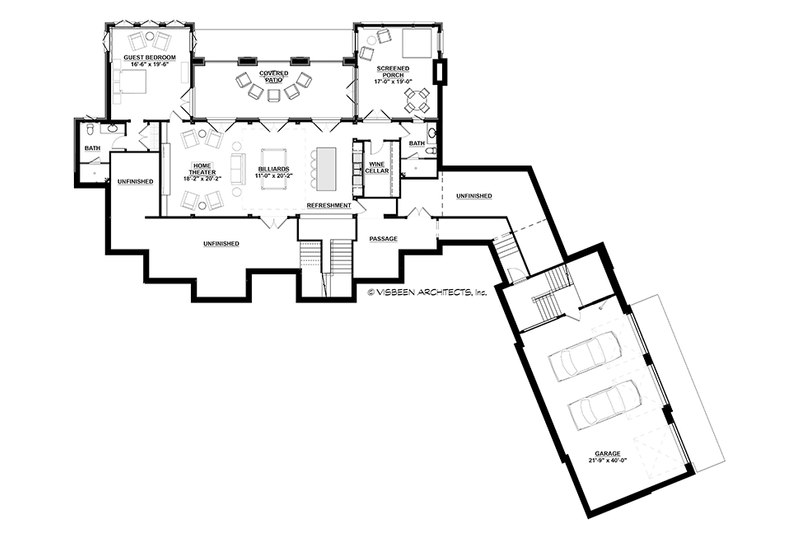

Floor Plan - Other Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 103' 10"
Height : 36' 2"
Width : 130' 5"
Height : 36' 2"
Width : 130' 5"
Area
Basement Unfinished: 4372 sq/ft
Bonus: 755 sq/ft
First Floor: 3877 sq/ft
Garage: 1008 sq/ft
Second Floor: 1393 sq/ft
Bonus: 755 sq/ft
First Floor: 3877 sq/ft
Garage: 1008 sq/ft
Second Floor: 1393 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 12:8
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 14:12
Roof Framing : Truss
Roof Type : Asphalt
Secondary Pitch : 14:12
Exterior Wall Framing
Exterior Wall Finish : Brick/Shingle/Siding
Framing : Wood - 2x6
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Formal Dining Room
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Great Room Living Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Outdoor Spaces
Balcony
Courtyard
Covered Front Porch
Screened Porch
Courtyard
Covered Front Porch
Screened Porch
Rooms
Covered Rear Porch:
349 sq/ft
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Questions? Call 1-877-222-1762
Plan Set
| PDF Set
: $1995.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set
: $3995.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Daylight Basement: $0.00 |
Ideal for sloping lot, lower level of home partially underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse
: $195.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design
: $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide
: $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design
: $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
Unless you buy an “unlimited” plan
set or a multi-use license you may only build one home from a set of plans. Please
call to verify if you intend to build more than once. Plan licenses are
non-transferable and cannot be resold.
