PLAN 928-176

Architectural House Design - Craftsman Exterior - Rear Elevation Plan #928-176

Architectural House Design - Craftsman Exterior - Other Elevation Plan #928-176

Architectural House Design - Craftsman Interior - Bedroom Plan #928-176

Architectural House Design - Craftsman Interior - Other Plan #928-176

Architectural House Design - Craftsman Interior - Kitchen Plan #928-176

Architectural House Design - Craftsman Interior - Family Room Plan #928-176

Architectural House Design - Craftsman Interior - Master Bathroom Plan #928-176

Architectural House Design - Craftsman Interior - Master Bedroom Plan #928-176

Architectural House Design - Craftsman Interior - Entry Plan #928-176

Architectural House Design - Craftsman Floor Plan - Upper Floor Plan #928-176

Architectural House Design - Craftsman Floor Plan - Main Floor Plan #928-176

Architectural House Design - Craftsman Floor Plan - Lower Floor Plan #928-176

Key Specs

4964
sq ft

5
Beds

4.5
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?

Additional options

	Right-Reading Reverse $165.75 Choose this option to reverse your plans and to have the text and dimensions readable.
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $170.00 Receive an overlay sheet with suggested placement of lighting fixtures.

Subtotal

NOW $1695.75

You save $299.25

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $9.99 with Code CTB2022 (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 928-176

Key Specs

4964
sq ft

5
Beds

4.5
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

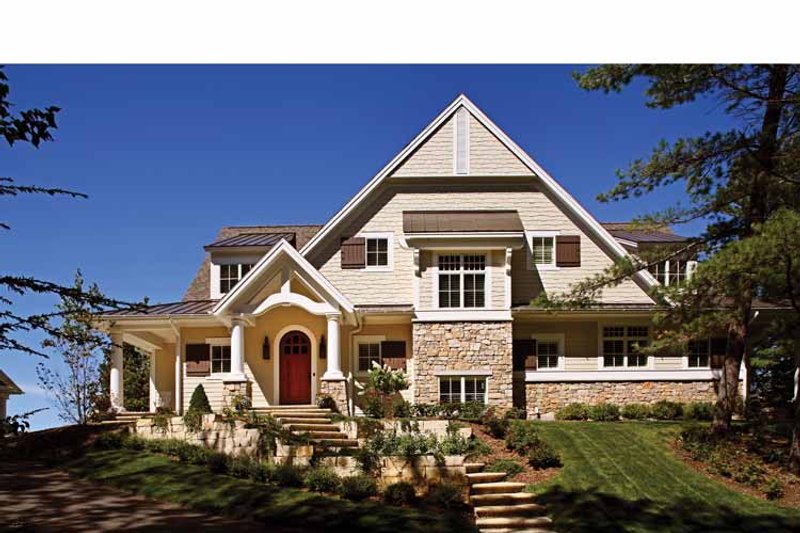

Shingle-style details and handsome stone accents give this Visbeen Architects home, which won First Place at the 2011 American Residential Design Awards in the Published Designs category, a unique look. The super-open layout features a long bank of windows designed to capture a view. A sunroom on one side of the living room and a covered deck on the other provide options for outdoor enjoyment in different kinds of weather. The master suite opens to the deck and also to a private porch at the front. Four generous bedrooms access their own laundry room upstairs. The basement can be finished to hold a family room, wet bar, bathroom, and even a billiards lounge. The plan includes a detached three-car garage with a huge storage space above, perfect for holding sports equipment or a workshop.

Floor Plans

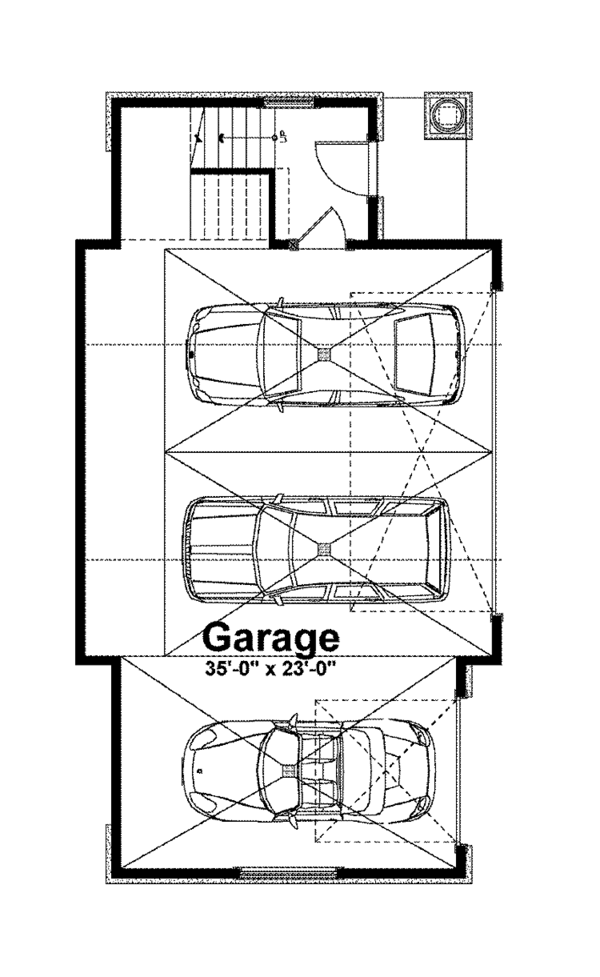

Floor Plan - Other Floor

Reverse

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

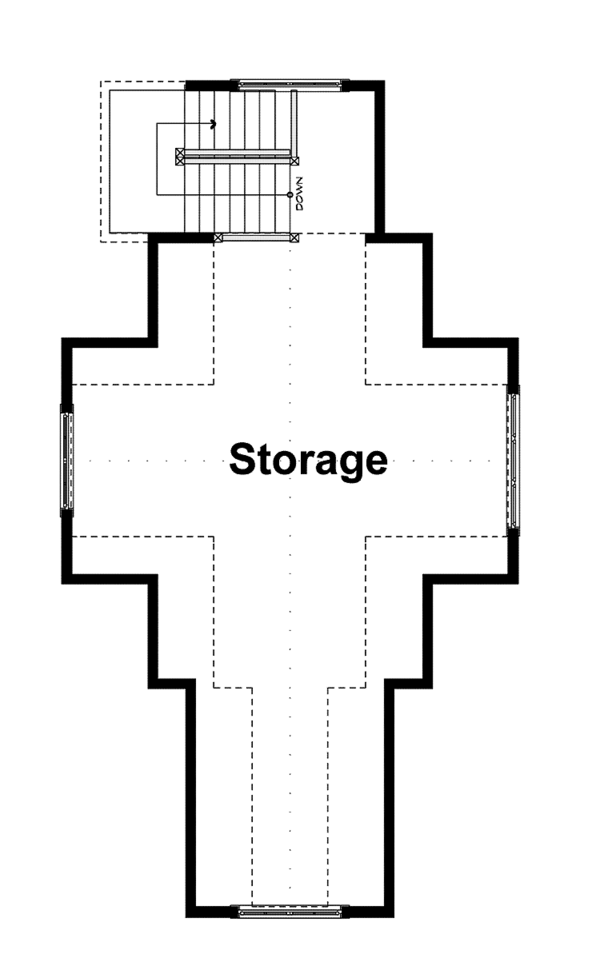

Floor Plan - Other Floor

Reverse

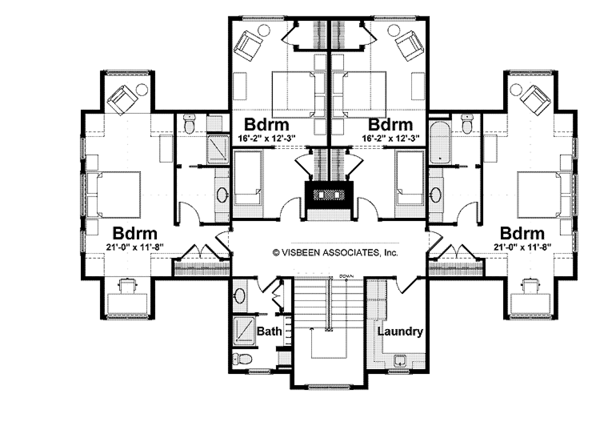

Floor Plan - Upper Floor

Reverse

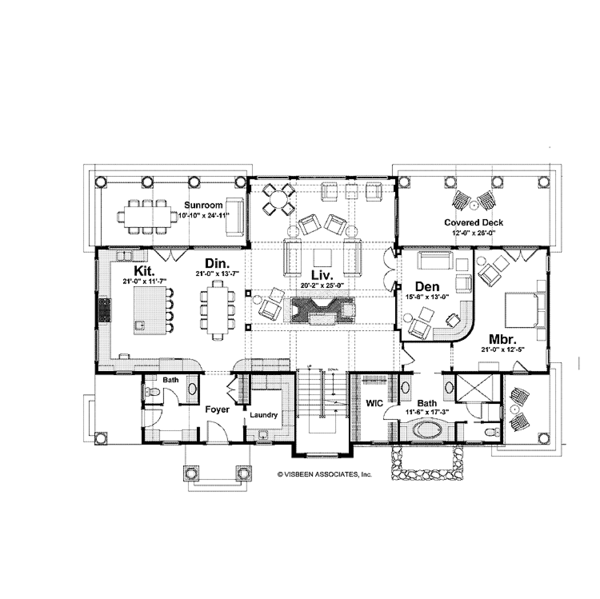

Floor Plan - Main Floor

Reverse

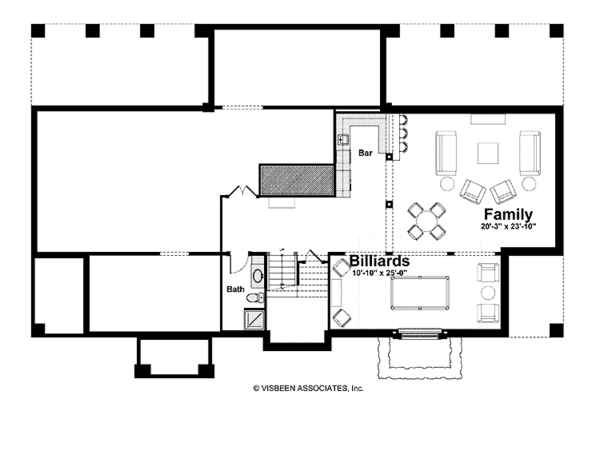

Floor Plan - Lower Floor

Reverse

Full Specs & Features

Dimension

Depth : 46'
Height : 35' 11"
Width : 78'

Area

Basement Unfinished: 1206 sq/ft height 9'
Bonus: 646 sq/ft
First Floor: 2792 sq/ft height 10'
Second Floor: 2172 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 12:12
Roof Framing : Truss
Roof Type : Asphalt

Exterior Wall Framing

Exterior Wall Finish : Siding/Stone
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor
Guest Suite
Main Floor Master Bedroom
Split Bedrooms
Walk In Closet

Kitchen Features

Breakfast Nook
Kitchen Island
Kitchenette Wet Bar

Additional Room Features

Den Office Study Computer
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Mud Room
Open Floor Plan
Sunroom
Unfinished Future Space
Upstairs Laundry
Vaulted / Cathedral Ceilings

Outdoor Spaces

Deck
Screened Porch

Rooms

Bedroom 2:

245 sq/ft width 21' x depth 11' 8"

Bedroom 3:

198 sq/ft width 16' 2" x depth 12' 3"

Bedroom 4:

198 sq/ft width 16' 2" x depth 12' 3"

Bedroom 5:

245 sq/ft width 21' x depth 11' 8"

Billiards Room:

270 sq/ft width 10' 10" x depth 25'

Deck:

312 sq/ft width 12' x depth 26'

Den:

203 sq/ft width 15' 8" x depth 13'

Dining Room:

285 sq/ft width 21' x depth 13' 7"

Family Room:

482 sq/ft width 20' 3" x depth 23' 10"

Garage:

805 sq/ft width 35' x depth 23'

Kitchen:

243 sq/ft width 21' x depth 11' 7"

Living Room:

504 sq/ft width 20' 2" x depth 25'

Master Bathroom:

198 sq/ft width 11' 6" x depth 17' 3"

Master Bedroom:

260 sq/ft width 21' x depth 12' 5"

Sun Room:

269 sq/ft width 10' 10" x depth 24' 11"

What's Included In This Plan Set

See a sample plan set

Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in the state of Michigan requires special permission from the Architect.

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

PDF Set : $1695.75	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
CAD Set : $3395.75	For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Foundation

Daylight Basement:
$0.00

Ideal for sloping lot, lower level of home partially underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Right-Reading Reverse : $165.75	Choose this option to reverse your plans and to have the text and dimensions readable.
Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $170.00	Receive an overlay sheet with suggested placement of lighting fixtures.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
