PLAN 3-343

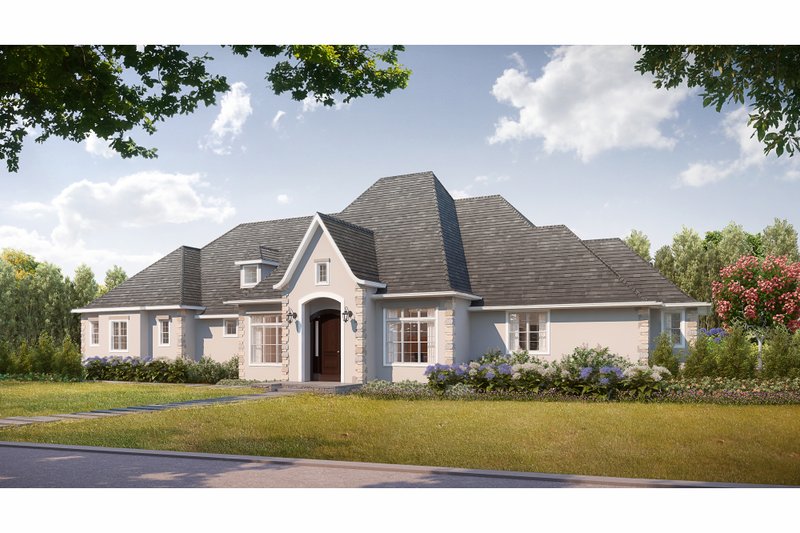

Architectural House Design - European Exterior - Front Elevation Plan #3-343
Architectural House Design - European Exterior - Rear Elevation Plan #3-343

Key Specs


4664
sq ft

6
Beds

6
Baths

2
Floors

2
Garages

Select Plan Set Options

What's included?
Subtotal
NOW $732.80
You save $183.20
(20% savings)
Sale ends soon!
Also order by phone: 1-877-222-1762
Cost-to-Build Estimates
Now Just $17.99 for a Limited Time
This report will provide you cost estimates based on location and building materials.
Questions about building your home?
Questions?
Send me your Newsletter, too!
We do our best to get back to you within 24 - 48 business hours.
Need an answer faster? Call now...
Phone: 1-877-222-1762
Hours:  Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 3-343

Key Specs


4664
sq ft

6
Beds

6
Baths

2
Floors

2
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Full Specs & Features


Dimension
Depth : 55' 6"
Height : 32' 7"
Width : 165' 8"
Area
Garage : 564 sq/ft
Main Floor : 3206 sq/ft
Upper Floor : 1458 sq/ft
*Total Square Footage only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Ceiling
Main Ceiling : 10'
Upper Ceiling Ft : 8'
Roof
Primary Pitch : 12/12
Roof Framing : stick
Roof Load : 50 lb/sq.ft.
Roof Type : asphalt
Secondary Pitch : 15/12
Exterior Wall Framing
Exterior Wall Finish : stucco
Framing : 2x6
Insulation : r-19
Bedroom Features
2 Master Suites
Guest Suite
Main Floor Master Bedroom
Upstairs Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Butler's Pantry
Eating Bar
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Den Office Study Computer
Hobby Rec Room Game Room
Main Floor Laundry
Master Sitting Area
Mud Room
Garage Features
Front Entry Garage
Lot Characteristics
Suited For Corner Lot
Outdoor Spaces
Covered Rear Porch
Grill Deck Sundeck
Outdoor Kitchen Grill

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.
Questions? Call 1-877-222-1762
Plan Set
5 Copy Set :
$732.80
5 printed plan sets mailed to you.
8 Copy Set :
$796.80
8 printed plan sets mailed to you.
PDF Set :
$916.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$916.00
For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.
Single Set :
$720.00
One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Basement:
$0.00
Ideal for level lot, lower level of home partially or fully underground.
Crawlspace:
$0.00
Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.
Slab:
$0.00
Ideal for level lot, single layer concrete poured directly on grade.

Framing

Wood 2x4:
$0.00
Wood 2x4
Wood 2x6:
$0.00
Wood 2x6

Additional Options

Audio Video Design :
$80.00
Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide :
$31.20
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.
