PLAN 929-897
How much will this cost to build?
This report will provide you cost estimates based on location and building materials.
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
PLAN 929-897
Key Specs
4441
sq ft
4
Beds
5
Baths
3
Floors
2
Garages
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description
With an unusual layout that offers private accommodations for a large group, the Palm Vista is an ideal vacation home or primary residence for a large family. Florida-inspired style ensures it is at home in any coastal setting. The main level is essentially one large open space encompassing the great room, dining area, and kitchen. On the second level enjoy not one, but two master suites, each complete with a luxurious bathroom that include a separate shower and whirlpool tub. In addition, there are two more oversized secondary bedrooms which share access to a screen porch. A spacious rec room serves as a gathering space on this floor. On the third level is a cozy built in seat and bar area with an outdoor balcony that's perfect for taking in sunrise or sunset views.
Floor Plans

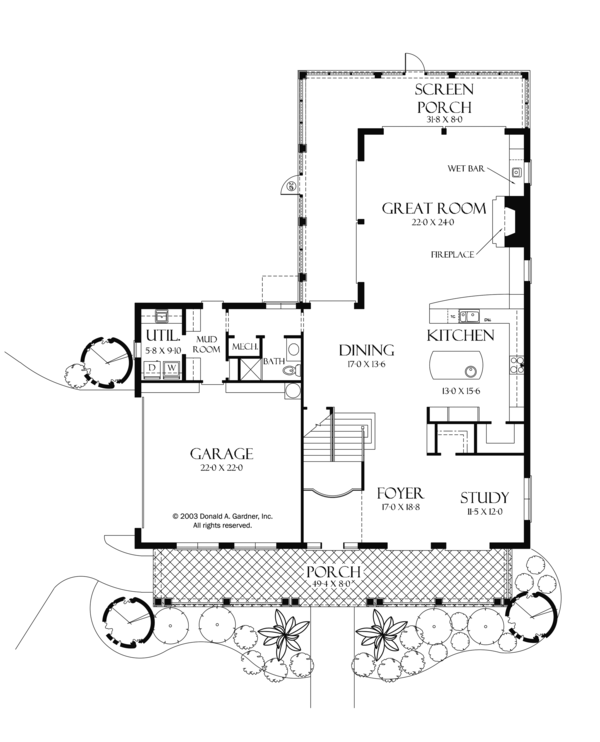

Floor Plan - Main Floor Plan

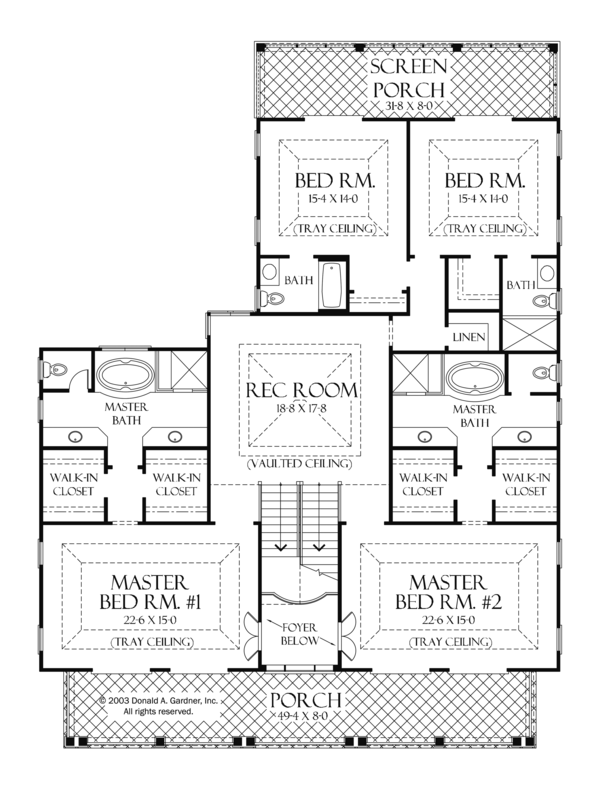

Floor Plan - Upper Floor Plan

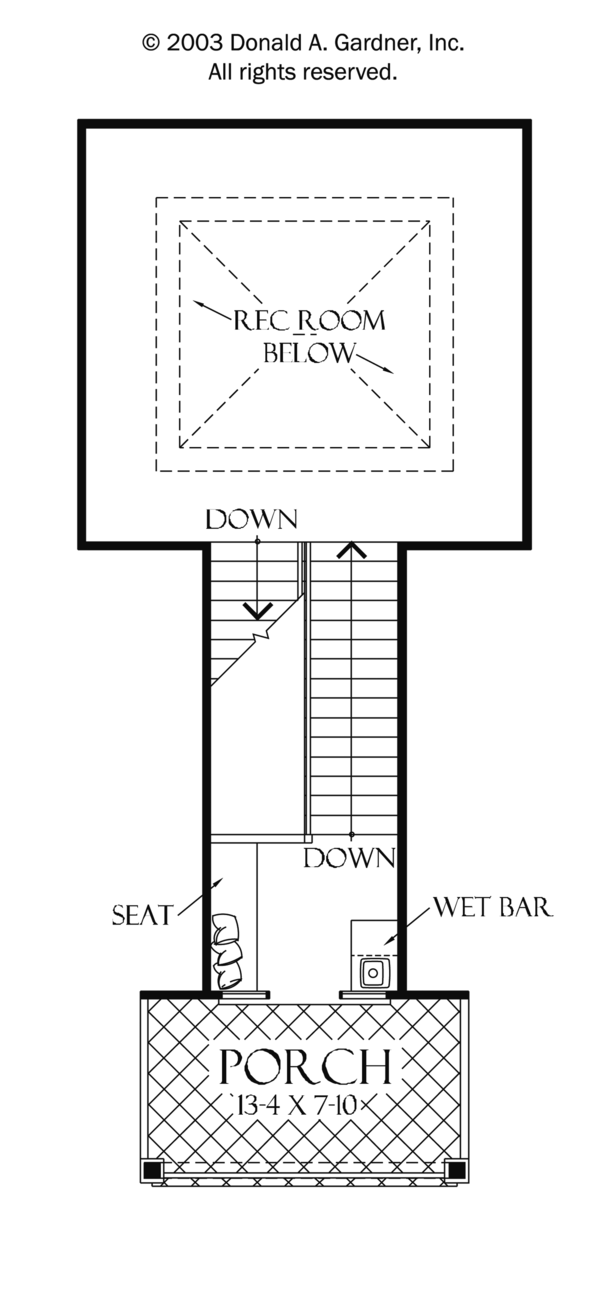

Floor Plan - Other Floor Plan
Full Specs & Features
Height : 34' 7"
Width : 54' 4"
Garage: 521 sq/ft height 10'
Second Floor: 2495 sq/ft height 10'
Third Floor: 61 sq/ft height 10'
Roof Framing : Truss
Roof Type : Concrete
Secondary Pitch : 7:12
Framing : Block
Fireplace
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Loft
Main Floor Laundry
Mud Room
Open Floor Plan
Vaulted / Cathedral Ceilings
Covered Front Porch
Covered Rear Porch
Deck
Bedroom 3:
width 15' 4" x depth 14'
Bedroom 4:
width 15' 4" x depth 14'
Dining:
width 17' x depth 13' 6"
Foyer:
width 17' x depth 18' 8"
Garage:
width 22' x depth 22'
Great Room:
width 22' x depth 24'
Kitchen:
width 13' x depth 15' 6"
Master Bedroom:
width 22' 6" x depth 15'
Master Bedroom:
width 22' 6" x depth 15'
Porch - Front:
width 49' 4" x depth 8'
Porch - Screened:
width 31' 8" x depth 8'
Recreation Room:
width 18' 8" x depth 17' 8"
Study:
width 11' 5" x depth 12'
Utility Room:
width 5' 8" x depth 9' 10"
