PLAN 117-393

Home > Style > Modern

Key Specs

4104
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

This modern design floor plan is 4104 sq ft and has 3 bedrooms and 3 bathrooms.

Floor Plans

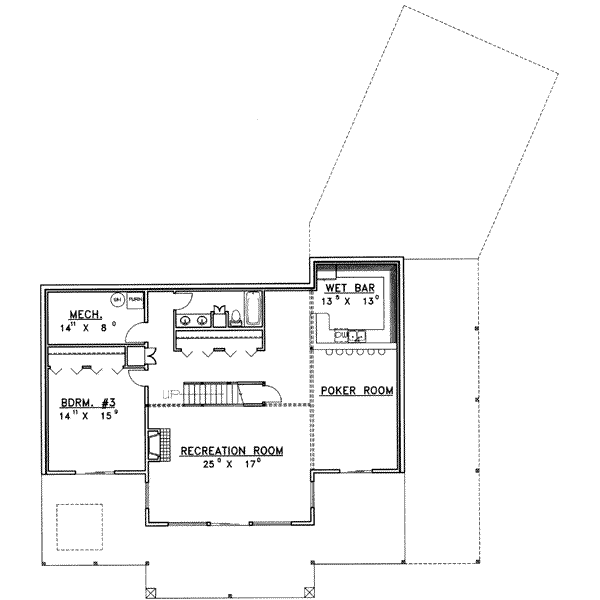

Floor Plan - Lower Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

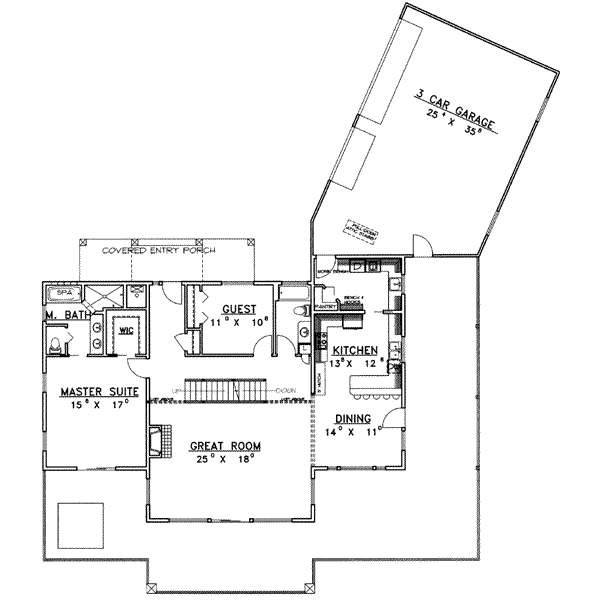

Floor Plan - Main Floor

Reverse

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 91'

Height : 25' 7"

Width : 81'

Area

Basement Living: 1890 sq/ft

First Floor: 1890 sq/ft

Garage: 947 sq/ft

Second Floor: 324 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Main Ceiling : 9'

Roof

Primary Pitch : 10:12

Roof Framing : Truss

Exterior Wall Framing

Exterior Wall Finish : Siding

Framing : 2"x6"

Bedroom Features

Guest Suite

Main Floor Master Bedroom

Walk In Closet

Kitchen Features

Breakfast Nook

Eating Bar

Walk In Pantry Cabinet Pantry

Additional Room Features

Great Room Living Room

Hobby Rec Room Game Room

Loft

Garage Features

Oversized Garage

Lot Characteristics

Suited For View Lot

Outdoor Spaces

Balcony

Covered Front Porch

Covered Rear Porch

Wrap Around Porch

Rooms

Bedroom 3:

234 sq/ft width 14' 11" x depth 15' 9"

Dining Room:

154 sq/ft width 14' x depth 11'

Garage:

903 sq/ft width 25' 4" x depth 35' 8"

Great Room:

450 sq/ft width 25' x depth 18'

Kitchen:

170 sq/ft width 13' 8" x depth 12' 6"

Loft:

308 sq/ft width 17' x depth 18' 2"

Master Bedroom:

263 sq/ft width 15' 6" x depth 17'

Mechanical/Equipment Room:

119 sq/ft width 14' 11" x depth 8'

Recreation Room:

425 sq/ft width 25' x depth 17'

Wet Bar:

174 sq/ft width 13' 5" x depth 13'
