PLAN 1017-135

Photographs may show modified designs.

Architectural House Design - Exterior - Front Elevation 2 for Mediterranean House Plan #1017-135 - 2 bed, 2.5 bath

Architectural House Design - Exterior - Front Elevation 3 for Mediterranean House Plan #1017-135 - 2 bed, 2.5 bath

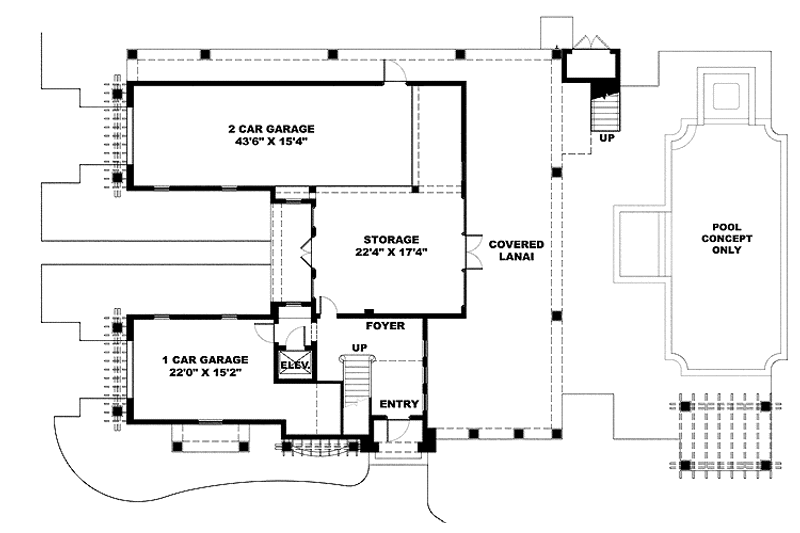

Architectural House Design - Floor Plan - Lower Floor for Mediterranean House Plan #1017-135 - 2 bed, 2.5 bath

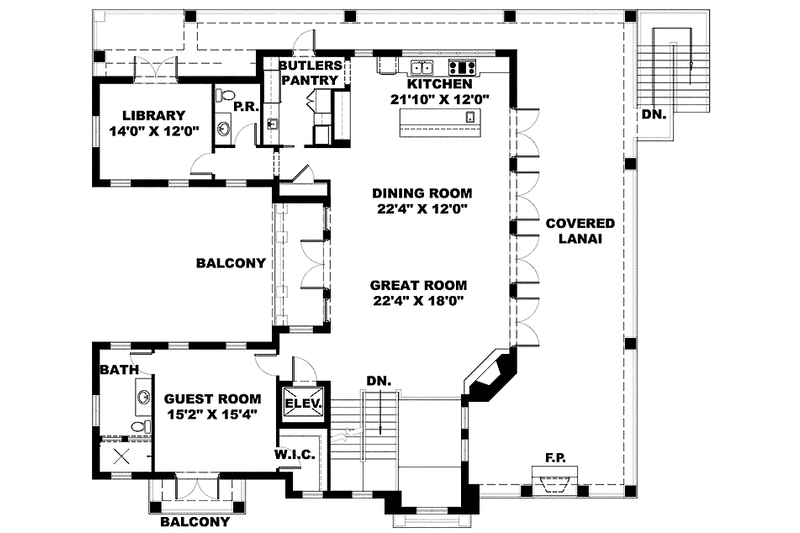

Architectural House Design - Floor Plan - Main Floor for Mediterranean House Plan #1017-135 - 2 bed, 2.5 bath

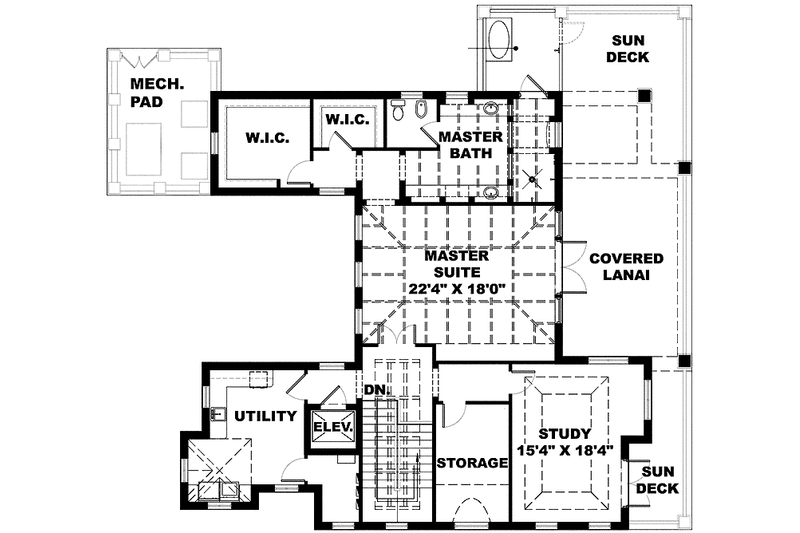

Architectural House Design - Floor Plan - Upper Floor for Mediterranean House Plan #1017-135 - 2 bed, 2.5 bath

Jump to:
All (5)
Exterior (2)
Floor plans (3)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3996
sq ft

2
Beds

2.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

Select Framing Options

	Additional Construction Sets$81.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$90.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$35.10
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Subtotal

NOW $1530.00

You save $170.00 (10% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

Only $1.99 Right Now
Use Code CTB2026

Our Cost to Build Report gives you a personalized estimate for building your home, based on your location, plan, and materials.

Get Cost To Build Report

Limit one per order.

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 1017-135

Home > Style > Mediterranean

Key Specs

3996
sq ft

2
Beds

2.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

If a coastal lot is what you've got….we've got the perfect coastal home plan for you! Open and airy doesn’t even begin to describe this home plan, offering three stories of view opportunities. Downstairs you've got room for 3 cars and plenty of storage (storage with a view!). Upstairs on level one, you can get quite comfortable on the rear lanai that spans the entire length of the house, with a fireplace! If it's too hot to be outside, inside boasts four sets of French doors eluding to the feeling of being outside. The third floor of this coast home plan is ALL master suite with a study and private sun deck. If a coastal home plan is what you are looking for, this plan is just for you!

Floor Plans

Floor Plan - Lower Floor

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

Floor Plan - Main Floor

Floor Plan - Upper Floor

Full Specs & Features

Dimension

Depth: 62'

Height: 40' 2"

Width: 79'

Area

Basement Living: 261 sq/ft

First Floor: 2094 sq/ft

Garage: 1944 sq/ft

Second Floor: 1641 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch: 8:12

Roof Framing: Truss

Roof Type: Clay Tile

Exterior Wall Framing

Exterior Wall Finish: Stucco

Framing: Block

Bedroom Features

Formal Dining Room

Guest Suite

Upstairs Master Bedrooms

Walk In Closet

Kitchen Features

Kitchen Island

Additional Room Features

Den Office Study Computer

Great Room Living Room

Loft

Outdoor Spaces

Balcony

Deck

Wheelchair Adaptable

Rooms

Dining Room:

267 sq/ft width 22' 4" x depth 12'

Garage:

669 sq/ft width 43' 8" x depth 15' 4"

Garage Two:

333 sq/ft width 22' x depth 15' 2"

Great Room:

401 sq/ft width 22' 4" x depth 18'

Guest Bedroom:

232 sq/ft width 15' 2" x depth 15' 4"

Kitchen:

261 sq/ft width 21' 10" x depth 12'

Library:

168 sq/ft width 14' x depth 12'

Master Suite:

401 sq/ft width 22' 4" x depth 18'

Storage:

387 sq/ft width 22' 4" x depth 17' 4"

Study:

281 sq/ft width 15' 4" x depth 18' 4"

What's Included In This Plan Set

See a sample plan set

Please call if building in Lee and Collier Counties of Florida, restrictions apply.

Plans are typically drawn to ¼” scale and include:

Foundation Plan(s): Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer. Foundations and structural engineering will vary from region to region across the USA and globally. Foundations depend on your soil conditions at your specific property that you want to build one of our homes. Plans from this designer do not come with foundation / structural engineering plans so it is highly recommended that you hire a local structural engineer to provide those details for you.
Floor Plan(s): Includes: Door and Window Sizes, Completely Dimensioned Floor Plan, Room Labels and Interior Room Sizes, Electrical Layouts, Building Section Markers, All Electrical Outlets, Fixtures, and Switching, Floor and Deck Joist Size and Spacing, Rough-in Plumbing Location (if applicable), Mechanical Equipment Locations (if applicable), Electrical Locations (if applicable).
Exterior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Interior Elevations: Include: Material Labels, Floor-to-Floor Heights and Roof Slope Indicators.
Overhead Roof Plan(s): Include: All Beam and Header Heights and Locations, All Hips, Gables, Ridges and Valleys, Building Section Markers
Cross Section(s): A slice of the home from roof to foundation, showing relationships between floors, roof, and foundation.
Construction Notes and Detail(s): Shows basic parts and assemblies recommended for the home so the builder can see how things come together.
Wall Section(s): Detailed drawings showing wall connections, from foundation to the roof, wall connections to foundation, window installation, siding installation, stair details, and more.

Please note: This design will not come with a foundation. The foundation should be created by a local structural engineer.

Questions? Call 1-877-222-1762

Plan Set

CAD Set:
$1530.00

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

PDF Set:
$1530.00

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

Foundation

Pier:
$0.00

Ideal for lot conditions where the home needs to be off the ground. A pier foundation consists of wood posts or concrete piers connected by beams to support the home. Some lots may require drilling deep into bedrock to support the posts.

Framing

Block:
$0.00

Concrete Block Exterior Walls (Upper Levels may be wood-framed)

Additional Options

Additional Construction Sets:
$81.00

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$90.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$35.10

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

* Alternate Foundations may take time to prepare.

** Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
