Plan Description
This traditional duplex plan with European accents offers two slightly
different floor plans. Unit A enters into the spacious great room, which is
warmed by a corner fireplace. The island kitchen features a nook and is well
placed between the laundry room that connects to the two-car garage, and the
dining room that accesses the rear screened porch. The master suite enjoys a
walk-in closet and a private bath. Bedroom 2 uses a hall bath nearby. Unit B
offers a couple extra additions to the floor plan, including a wood deck just
off the rear screened porch and a study just off the entry. The study can be
converted to a third bedroom as space is needed.
Floor Plans

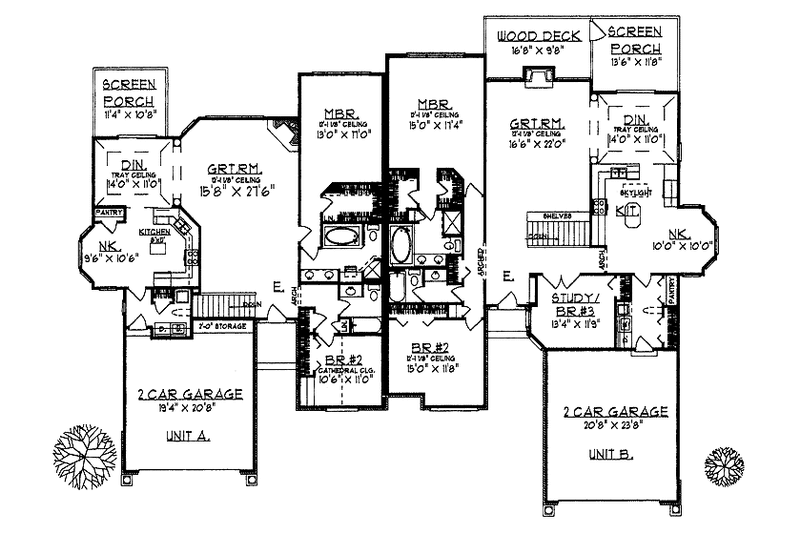

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 77'
Height : 25'
Width : 102'
Area
First Floor: 1759 sq/ft
First Floor: 2197 sq/ft
* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.
Roof
Primary Pitch : 6:12
Roof Framing : Truss
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x6
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Kitchen Features
Breakfast Nook
Kitchen Island
Additional Room Features
Den Office Study Computer
Great Room Living Room
Main Floor Laundry
Sunroom
Outdoor Spaces
Covered Rear Porch
Deck
Screened Porch
Rooms
Bedroom 2:
113 sq/ft width 10' 4" x depth 11'
Dining Room:
154 sq/ft width 14' x depth 11'
Dining Room:
154 sq/ft width 14' x depth 11'
Garage:
396 sq/ft width 19' 4" x depth 20' 6"
Garage:
440 sq/ft width 20' x depth 22'
Master Bedroom:
143 sq/ft width 13' x depth 11'
Nook:
57 sq/ft width 5' 6" x depth 10' 6"
Nook:
100 sq/ft width 10' x depth 10'
Porch - Screened:
118 sq/ft width 11' 4" x depth 10' 6"
What's Included In This Plan Set
- Cover sheet with front rendering
- Foundation and floor plans at 1/4" = 1' scale
- Exterior elevations of all four views, front at 1/4" = 1' scale, rear and sides vary from 1/8" to 1/4" = 1' scale
- Building sections and details as required to construct the individual design
- Interior elevation of cabinets at 1/4" = 1' scale
- Roof plans
- Schematic electrical plans with suggested switch, outlet, and light fixture locations General specification design notes
- Note: Mechanical and plumbing drawings are not included. These should be obtained from a local mechanical contractor to ensure correct sizing of equipment for your region and climate conditions.
- Please note, if you are building in the state of Wisconsin, please give us a call before placing your order.
