PLAN 927-416
Photographs may show modified designs.
- Jump to:
- All (4)
- Floor plans (2)
Get Personalized Help
Key Specs
3641
sq ft
4
Beds
4
Baths
2
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2024 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 927-416
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Special offer for builders! Select a CAD, PDF, or Reproducible format, and you will receive an unlimited use license at no additional cost. Build as many times as you like with no re-use fees! This offer only applies to plans bearing this note. Unless explicitly noted, a purchased plan may only be built once. An unlimited use license is not transferable.
Floor Plans

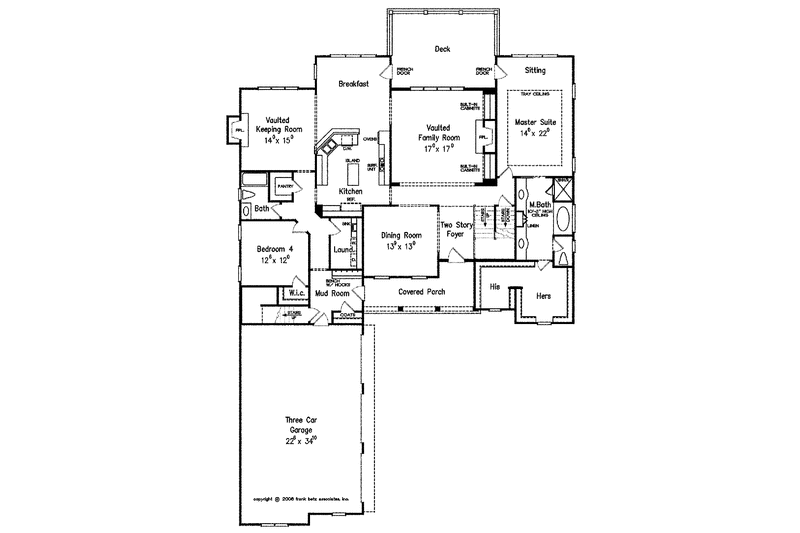

Floor Plan - Main Floor

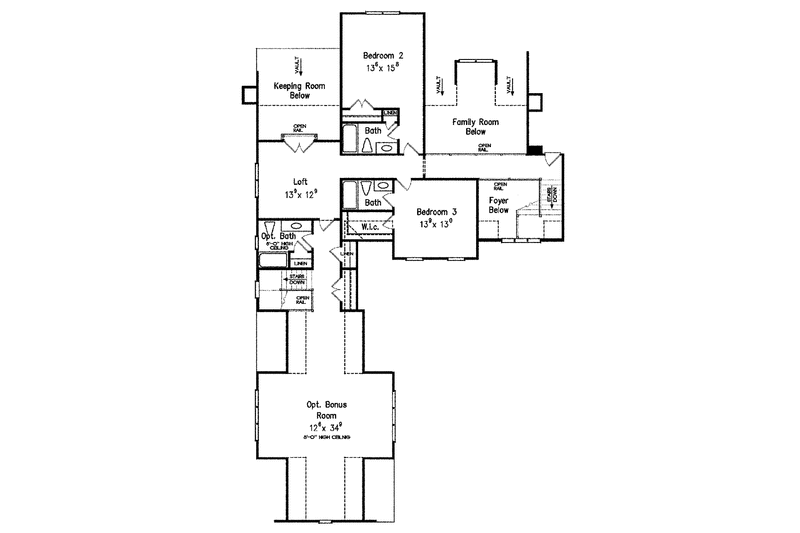

Floor Plan - Upper Floor
Full Specs & Features
Dimension
Depth : 87'
Height : 30'
Width : 64' 4"
Area
Basement Unfinished: 2673 sq/ft
Bonus: 787 sq/ft
First Floor: 2673 sq/ft height 9'
Garage: 833 sq/ft
Second Floor: 968 sq/ft height 9'
Roof
Primary Pitch : 12:12
Roof Framing : Conventional
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Stone
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Main Floor Master Bedroom
Additional Room Features
Family Room Keeping Room
Main Floor Laundry
Outdoor Spaces
Covered Rear Porch
Rooms
Bedroom 2:
211 sq/ft width 13' 6" x depth 15' 8"
Bedroom 3:
178 sq/ft width 13' 9" x depth 13'
Bedroom 4:
150 sq/ft width 12' 6" x depth 12'
Bonus Room - Finished:
434 sq/ft width 12' 6" x depth 34' 9"
Breakfast:
189 sq/ft width 13' 6" x depth 14'
Dining Room:
178 sq/ft width 13' 9" x depth 13'
Family Room:
289 sq/ft width 17' x depth 17'
Foyer:
140 sq/ft width 14' x depth 10'
Garage:
783 sq/ft width 22' 6" x depth 34' 10"
Keeping Room:
210 sq/ft width 14' x depth 15'
Kitchen:
182 sq/ft width 13' 6" x depth 13' 6"
Laundry Room:
54 sq/ft width 5' 10" x depth 9' 5"
Loft:
175 sq/ft width 13' 9" x depth 12' 9"
Master Bathroom:
158 sq/ft width 10' 5" x depth 15' 3"
Master Bedroom:
308 sq/ft width 14' x depth 22'
Master Closet - Hers:
105 sq/ft width 10' 6" x depth 10'
Master Closet - His:
63 sq/ft width 7' 3" x depth 8' 9"
Mud Room:
71 sq/ft width 9' 7" x depth 7' 6"
What's Included In This Plan Set
-
All plans include the front elevation at 1/4" or 3/16" and the sides and rear elevations at 1/8" scale. These elevations show and note the exterior finished materials of the house.
- Every plan is available with a walkout style basement (three masonry walls and one wood framed rear wall with windows and doors). The basement plans are a 1/4" or 3/16" scale layout of unfinished spaces showing only the necessary 2 x 6 wood framed load bearing walls. These plans are completed with dimensions, notes, and door/window sizes. Crawl space and/or slab on grade foundations are available for some plans. All foundation types are not available for all plans.
- Each plan consists of 1/4" or 3/16" scale floor layouts showing the location of 2x4 walls, doors, windows, plumbing fixtures, cabinetry, stairs and decorative ceilings. These plans are complete with dimensions, notes, door/window sizes and a schematic electrical layout.
- The building sections are drawings which take vertical cuts through the house and the stairs showing floor, ceiling and roof height information.
- The kitchen and bath elevations show the arrangement and size of each cabinet and other fixtures in the room. These drawings give basic information that can be used to create customized layouts with a cabinet manufacturer. Details are included for many interior and exterior conditions to provide more specific information for their construction.
- Each floor framing plan shows each floor joist indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Each framing plan sheet includes any framing details that are needed (tray details, connection details, etc.). All of the framing is designed using conventional 2 X 10 floor joist or wood I-Joist, depending on the span conditions of each home plan. Framing plans are not available for all home plans.
- The ceiling joist framing plan shows each ceiling joist indicating the size,spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- The roof framing plan shows each rafter, valley, hip and ridge indicating the size, spacing and length. All beams are labeled and sized. All of the joist are counted and coordinated with the material list. Framing plans are not available for all home plans.
- Each plan order includes one set of typical detail sheets that show foundation details, typical wall sections and other framing details. Also included on the detail sheets are miscellaneous interior trim and fireplace details that can be used to customize the home.
Plan Set
$2595.00
$2795.00
$2945.00
$3145.00
$3395.00
Foundation
$0.00
$0.00
Framing
$0.00
Additional Options
$295.00
$165.00
$395.00
$39.00
$165.00
$85.00
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
