Photographs may show modified designs.
PLAN 928-39
Cost to Build Reports Only $9.99 with Code CTB2021 (Limit 1 Per Order)
This report will provide you cost estimates based on location and building materials.
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
PLAN 928-39
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.Plan Description
Full Specs & Features
Height : 33' 8"
Width : 106' 4"
First Floor: 1994 sq/ft
Second Floor: 1580 sq/ft
Roof Framing : Truss
Roof Type : Asphalt
Framing : Wood - 2x6
Formal Dining Room
Guest Suite
Split Bedrooms
Upstairs Master Bedrooms
Walk In Closet
Kitchen Island
Kitchenette Wet Bar
Walk In Pantry Cabinet Pantry
Exercise Room
Family Room Keeping Room
Great Room Living Room
Hobby Rec Room Game Room
Main Floor Laundry
Media Room
Open Floor Plan
Sunroom
Unfinished Future Space
Vaulted / Cathedral Ceilings
Workshop
Covered Front Porch
Covered Rear Porch
Screened Porch
Bedroom 2:
172 sq/ft width 14' 1" x depth 12' 3"
Bedroom 3:
138 sq/ft width 12' 11" x depth 10' 9"
Bedroom 4:
138 sq/ft width 12' 11" x depth 10' 9"

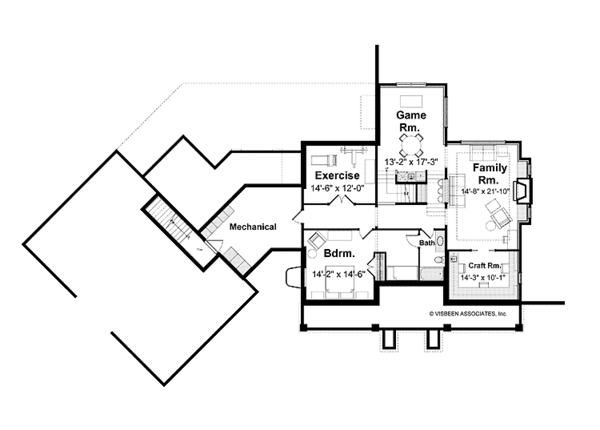

Bedroom 5:
205 sq/ft width 14' 2" x depth 14' 6"
Dining Room:
251 sq/ft width 14' 1" x depth 17' 10"
Exercise Room:
174 sq/ft width 14' 6" x depth 12'
Family Room:
320 sq/ft width 14' 8" x depth 21' 10"
Game Room:
227 sq/ft width 13' 2" x depth 17' 3"

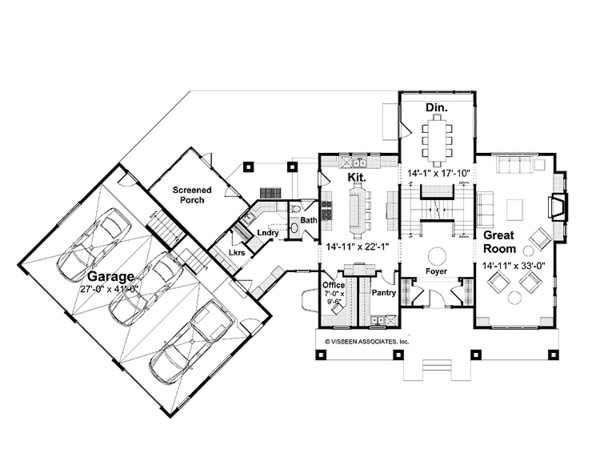

Garage:
1107 sq/ft width 27' x depth 41'
Great Room:
492 sq/ft width 14' 11" x depth 33'
Home Office:
66 sq/ft width 7' x depth 9' 6"
Kitchen:
329 sq/ft width 14' 11" x depth 22' 1"

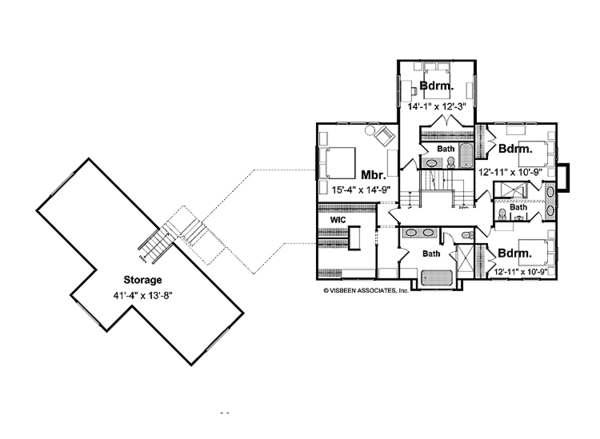

Master Bedroom:
226 sq/ft width 15' 4" x depth 14' 9"
Storage:
564 sq/ft width 41' 4" x depth 13' 8"
What's Included In This Plan Set
Please note: If you are building a Visbeen Architects design in the state of Michigan, please give us a call to confirm availability. Construction in some areas of Michigan requires special permission from the Architect.
All plans are drawn at ¼” scale or larger and include :
- Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
- Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
- Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc.
- Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
| PDF Set : $1495.00 |
PDF plan sets are best for fast electronic delivery and inexpensive local printing. |
| CAD Set : $3495.00 |
For use by design professionals to make substantial changes to your house plan and inexpensive local printing. |
Foundation
| Basement: $0.00 |
Ideal for level lot, lower level of home partially or fully underground. |
Framing
| Wood 2x6: $0.00 |
Wood 2x6 |
Additional Options
| Right-Reading Reverse : $195.00 |
Choose this option to reverse your plans and to have the text and dimensions readable. |
| Audio Video Design : $100.00 |
Receive an overlay sheet with suggested placement of audio and video components. |
| Construction Guide : $39.00 |
Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics. |
| Lighting Design : $200.00 |
Receive an overlay sheet with suggested placement of lighting fixtures. |
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
