PLAN 84-620

Photographs may show modified designs.

Architectural House Design - Mediterranean Exterior - Front Elevation Plan #84-620

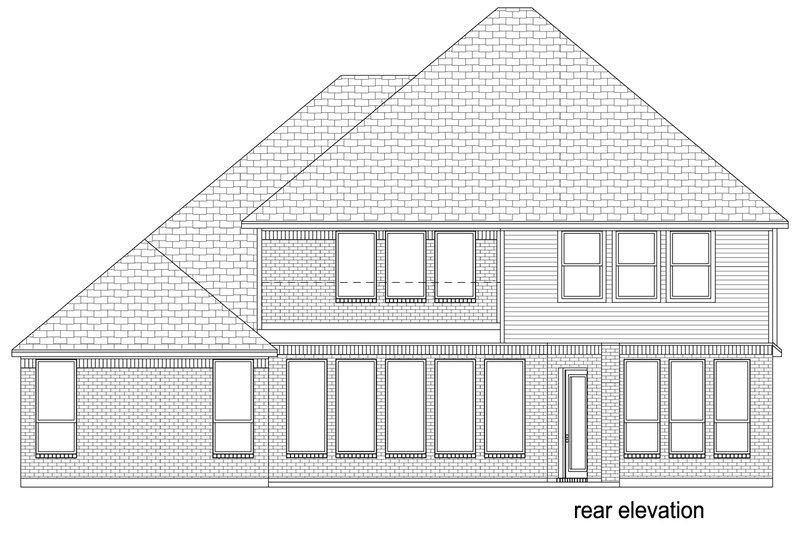

Architectural House Design - Mediterranean Exterior - Rear Elevation Plan #84-620

Architectural House Design - Mediterranean Floor Plan - Main Floor Plan #84-620

Architectural House Design - Mediterranean Floor Plan - Upper Floor Plan #84-620

Jump to:
All (4)
Exterior (2)
Floor plans (2)

Get Personalized Help

Home > Style > Mediterranean

Key Specs

3462
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Select Foundation Options

	Right-Reading Reverse	$170.00
	Choose this option to reverse your plans and to have the text and dimensions readable.
	Additional Construction Sets$42.50/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design	$85.00
	Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide	$33.15
	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design	$170.00
	Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets$63.75 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $871.25

You save $153.75 (15% savings)

Sale ends soon!

Also order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction? Do you have a lot? Are you working with a builder? Where do you plan on building? * Please enter your question(s) *

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours:

Ready for Your Call 7 Days a Week

Every Day 7 am - 8:30 pm Eastern

See our Terms & Conditions and Privacy Policy.

Wow!

Cost to Build Reports

are Only $4.99
with Code CTB2025 (limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost To Build Report

Residential Construction Guide

Learn Building Basics

This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.

Get the Guide

PLAN 84-620

Home > Style > Mediterranean

Key Specs

3462
sq ft

4
Beds

3.5
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

Designed for executives with discriminating taste, this plan features a dining room sized for entertaining. A kitchen perfect for any foodie, elegant library, & a niche designed for a grand piano (under the stairs). Imagine dinner parties w/piano playing & grill going strong out on the oversized porch. A large master suite & guest bedroom on the lower floor & 2 bedrooms on the upper floor give each occupant a private space to sleep. The pool table sized gameroom has a deck for watching the sunset. Stone detailing on special eyebrow arches & a sophisticated feel to this elegant French elevation.

Floor Plans

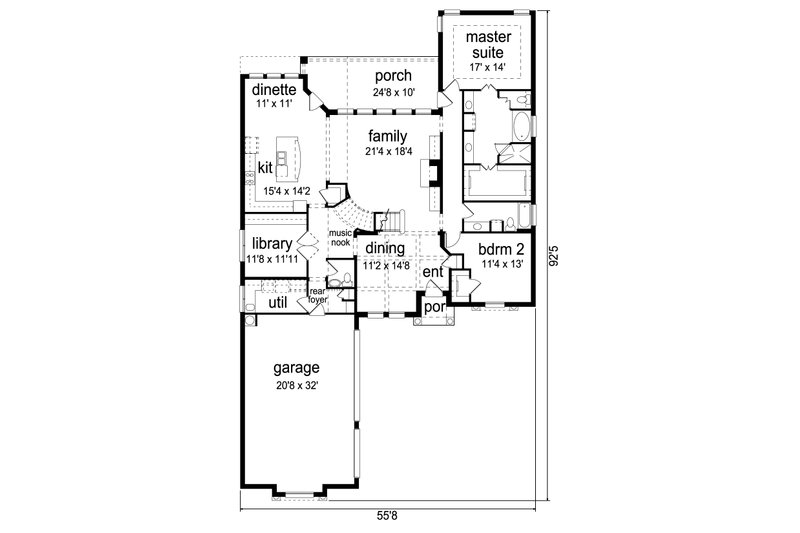

Floor Plan - Main Floor

Reverse

BUILDER Advantage Program

Pro Builders:

Join the club and save 5% on your first home plan order. PLUS download our exclusive house plans trend report!

Join for FREE

Click to Get Your Trend Report

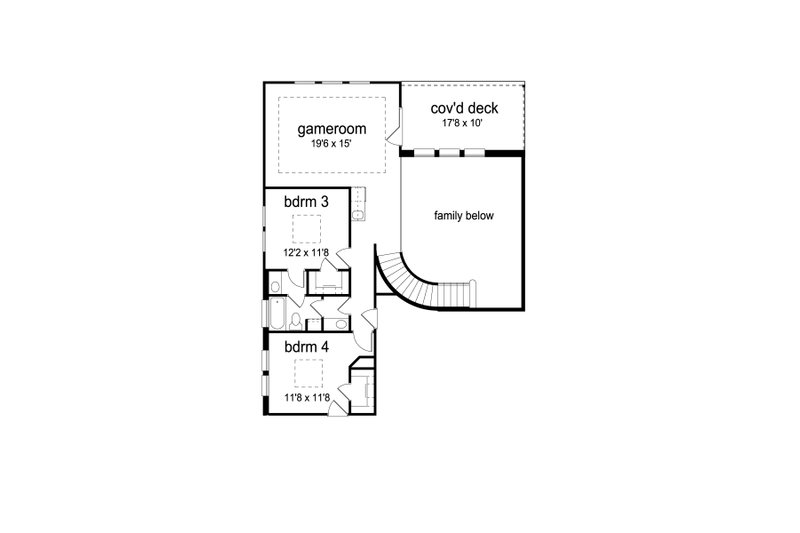

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 92' 5"

Height : 34' 10"

Width : 55' 8"

Area

Deck: 175 sq/ft

First Floor: 2552 sq/ft

Garage: 750 sq/ft height 10'

Porch: 243 sq/ft

Second Floor: 910 sq/ft

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Ceiling

Ceiling Details : 11' tier in master 8'6" tier in bdrm 3, bdrm 4

Main Ceiling : 10'

Upper Ceiling Ft : 8'

Roof

Primary Pitch : 10:12

Roof Framing : Conventional

Roof Type : hip

Exterior Wall Framing

Exterior Wall Finish : Brick, stone, stucco

Framing : 2x4

Bedroom Features

Main Floor Bedrooms

Main Floor Master Bedroom

Split Bedrooms

Upstairs Bedrooms

Walk In Closet

Kitchen Features

Eating Bar

Kitchen Island

Walk In Pantry Cabinet Pantry

Additional Room Features

Family Room Keeping Room

Hobby Rec Room Game Room

Main Floor Laundry

Mud Room

Garage Features

Side Entry Garage

Outdoor Spaces

Covered Front Porch

Covered Rear Porch

Jack & Jill Bath

Rooms

Bedroom 2:

width 11' 4" x depth 13'

Bedroom 3:

width 12' 2" x depth 11' 8"

Bedroom 4:

width 11' 8" x depth 11' 8"

Covered Deck:

175 sq/ft width 17' 8" x depth 10'

Dinette:

width 11' x depth 11'

Dining Room:

width 11' 2" x depth 14' 8"

Family Room:

width 21' 4" x depth 18' 4"

Front Porch:

32 sq/ft

Game Room:

width 19' 6" x depth 15'

Garage:

750 sq/ft width 20' 8" x depth 32'

Kitchen:

width 15' 4" x depth 14' 2"

Library:

width 11' 8" x depth 11' 11"

Master Suite:

width 17' x depth 14'

Rear Porch:

243 sq/ft width 24' 8" x depth 10'

What's Included In This Plan Set

See a sample plan set

FOUNDATION LAYOUT PLAN: 1/4" Scale - Dimensioned but not engineered. Structural design of foundation needs to be provided by a local structural engineer.
FRONT RENDERING: 1/4" Scale
FLOOR PLAN(S): 1/4" Scale - Electrical and plumbing noted directly on plan(s). Mechanical layouts not included.
ELEVATIONS: 1/4" scale rear elevation and 1/8" scale side elevations
ROOF PLAN: 1/8" scale showing hips, peaks and valleys of roof. Information noted on Elevations page.
STANDARD DETAIL PAGE: Shows typical building section (not necessarily specific to this plan), and building code notes.

Questions? Call 1-877-222-1762

Plan Set

PDF Set:
$871.25

PDF plan sets are best for fast electronic delivery and inexpensive local printing.

5 Copy Set:
$977.50

5 printed plan sets mailed to you.

8 Copy Set:
$1062.50

8 printed plan sets mailed to you.

Reproducible Set:
$1062.50

For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

CAD Set:
$1742.50

For use by design professionals to make substantial changes to your house plan and inexpensive local printing.

Single Set:
$765.00

One printed set for bidding purposes only. Not a legal building set for construction.

Foundation

Crawlspace:
$0.00

Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.

Slab:
$0.00

Ideal for level lot, single layer concrete poured directly on grade.

Additional Options

Right-Reading Reverse:
$170.00

Choose this option to reverse your plans and to have the text and dimensions readable.

Additional Construction Sets:
$42.50

Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).

Audio Video Design:
$85.00

Receive an overlay sheet with suggested placement of audio and video components.

Construction Guide:
$33.15

Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.

Lighting Design:
$170.00

Receive an overlay sheet with suggested placement of lighting fixtures.

Mirror Reversed Sets:
$63.75

A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.
