Key Specs


3445
sq ft

3
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized!

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Plan Description


Both luxurious and practical, this family-friendly home features a remarkable amount of storage, from the well-organized mudroom to the master suite's enormous walk-in closet. The laundry room's convenient location on the second floor makes it easy to throw in a load of laundry. A large shower in the master retreat provides another touch of contemporary luxury. For a boomerang kid or live-in relative, bedroom two offers extra living space with an attached sitting room and private balcony. Nearby, the loft can be used for homework, video games, or simply another lounge space away from the more-open great room downstairs. Don't miss the kitchen's spacious island and huge pantry. This plan is not for sale in Collier and Lee Counties in Florida without the written consent of the designer.

Floor Plans

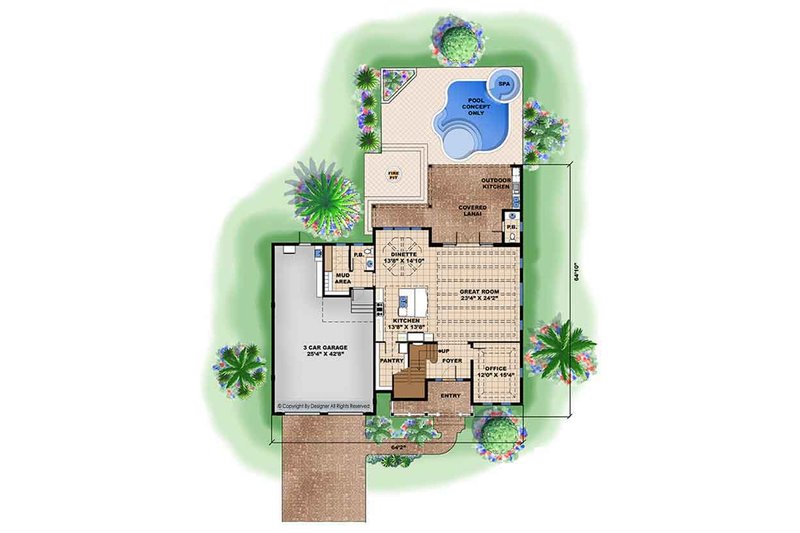

Floor Plan - Main Floor Plan
Country Floor Plan - Main Floor Plan Plan #1017-168

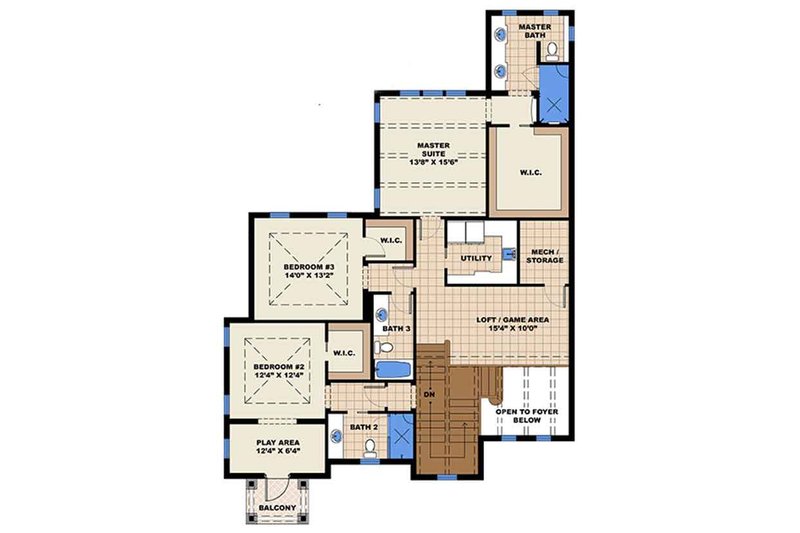

Floor Plan - Upper Floor Plan
Country Floor Plan - Upper Floor Plan Plan #1017-168

Full Specs & Features


Dimension
Depth : 64' 10"
Height : 30'
Width : 64' 2"
Area
First Floor: 1719 sq/ft
Garage: 979 sq/ft
Second Floor: 1726 sq/ft
Roof
Roof Framing : Truss
Primary Pitch : 6:12
Roof Type : Metal
Exterior Wall Framing
Exterior Wall Finish : Siding/Stone
Framing : Block
Bedroom Features
Guest Suite
Upstairs Master Bedrooms
Walk In Closet
Kitchen Features
Kitchen Island
Walk In Pantry Cabinet Pantry
Additional Room Features
Mud Room
Den Office Study Computer
Great Room Living Room
Hobby Rec Room Game Room
Upstairs Laundry
Open Floor Plan
Garage Features
Front Entry Garage
Tandem Garage
Outdoor Spaces
Courtyard
Covered Front Porch
Covered Rear Porch
Loft Balcony
Outdoor Kitchen Grill
Rooms

Balcony:

43 sq/ft

Covered Front Porch:

142 sq/ft

Covered Rear Porch:

559 sq/ft

What's Included In This Plan Set


All plans are drawn at ¼” scale or larger and include :

  • Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
  • Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
  • Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
  • Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
  • Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.
» See important information before purchasing.

Plan Set

CAD Set :
$1800.00
For use by design professionals to make substantial changes to your house plan and inexpensive local printing.
PDF Set :
$1800.00
PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set :
$1800.00
For making minor changes to your house plans and inexpensive local printing. 1 printed set on Vellum or Bond paper.

Foundation

Stem Wall Foundation:
$0.00
Joins the foundation with a house’s vertical walls; often part of stem-wall slab foundation systems, which are constructed like a crawlspace foundation but filled in and compacted, then the slab is poured.

Framing

Block:
$0.00
Block
Wood 2x4:
$350.00
Wood 2x4
Wood 2x6:
$350.00
Wood 2x6

Additional Options

Right-Reading Reverse :
350.00
Choose this option to reverse your plans and to have the text and dimensions readable.
Home Furniture Planner :
19.00
This fun visual aid lets you peel-and-stick furniture on a generic layout to plan out spacing.
Lighting Design :
200.00
Receive an overlay sheet with suggested placement of lighting fixtures.
Audio Video Design :
100.00
Receive an overlay sheet with suggested placement of audio and video components.
