PLAN 17-3295
Photographs may show modified designs.
- Jump to:
- All (3)
- Floor plans (1)
Get Personalized Help
Key Specs
3438
sq ft
4
Beds
3
Baths
1
Floors
3
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
Use Code CTBSUMMER
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-3295
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

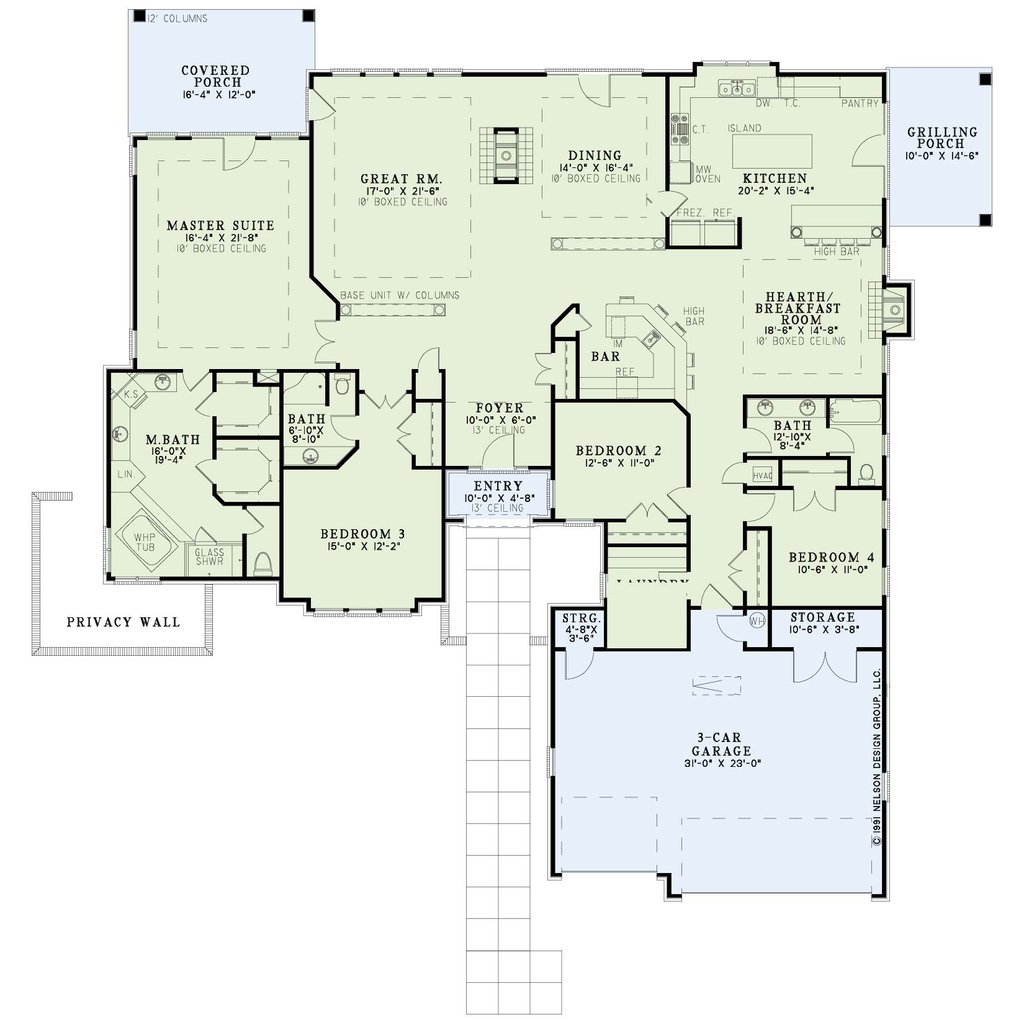

Floor Plan - Main Floor
Full Specs & Features
Dimension
Depth : 84'
Height : 22' 8"
Width : 90' 9"
Area
First Floor: 3438 sq/ft height 9'
Garage: 810 sq/ft height 9'
Porch: 398 sq/ft
Roof
Primary Pitch : 8:12
Exterior Wall Framing
Exterior Wall Finish : Brick
Framing : Wood - 2x4
Bedroom Features
Formal Dining Room
Walk In Closet
Kitchen Features
Breakfast Nook
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Main Floor Laundry
Vaulted / Cathedral Ceilings
Outdoor Spaces
Covered Front Porch
Covered Rear Porch
Rooms
Bathroom 2:
60 sq/ft width 6' 10" x depth 8' 10"
Bathroom 3:
106 sq/ft width 12' 10" x depth 8' 4"
Bedroom 2:
137 sq/ft width 12' 6" x depth 11'
Bedroom 3:
182 sq/ft width 15' x depth 12' 2"
Bedroom 4:
115 sq/ft width 10' 6" x depth 11'
Covered Porch:
195 sq/ft width 16' 4" x depth 12'
Dining Room:
228 sq/ft width 14' x depth 16' 4"
Entry:
46 sq/ft width 10' x depth 4' 8"
Foyer:
60 sq/ft width 10' x depth 6'
Garage:
713 sq/ft width 31' x depth 23'
Garage Storage:
38 sq/ft width 10' 6" x depth 3' 8"
Garage Storage:
16 sq/ft width 4' 8" x depth 3' 6"
Great Room:
365 sq/ft width 17' x depth 21' 6"
Grilling Porch:
145 sq/ft width 10' x depth 14' 6"
Hearth Room:
271 sq/ft width 18' 6" x depth 14' 8"
Kitchen:
309 sq/ft width 20' 2" x depth 15' 4"
Laundry Room:
71 sq/ft width 7' 6" x depth 9' 6"
Master Bathroom:
309 sq/ft width 16' x depth 19' 4"
Master Suite:
353 sq/ft width 16' 4" x depth 21' 8"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.

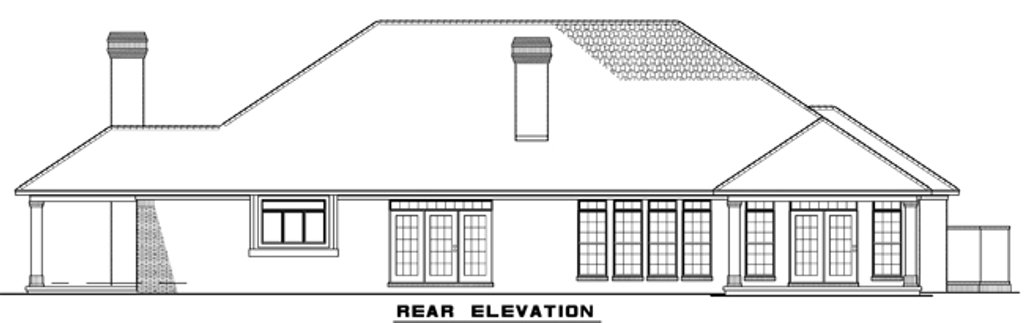

- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$1020.00
$1105.00
$1317.50
$1615.00
$2040.00
$2040.00
Foundation
$0.00
$0.00
Framing
$0.00
$254.15
Additional Options
$254.15
$68.00
$140.25
$335.75
$33.15
$140.25
$126.65
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
