PLAN 1016-34

Architectural House Design - Classical Floor Plan - Main Floor Plan #1016-34

Architectural House Design - Classical Floor Plan - Upper Floor Plan #1016-34

Key Specs

3435
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

Select Plan Set Options

What's included?

Additional options

	Additional Construction Sets $51.00/each Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
	Audio Video Design $85.00 Receive an overlay sheet with suggested placement of audio and video components.
	Construction Guide $33.15 Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
	Lighting Design $170.00 Receive an overlay sheet with suggested placement of lighting fixtures.
	Mirror Reversed Sets $51.00 Printed sets showing plan in reverse, text and dimensions will be backwards.

Subtotal

NOW $799.00

You save $141.00

(15% savings)

Sale ends soon!

Best Price Guaranteed*

Also order by phone: 1-877-222-1762

Cost to Build Reports Only $4.99 with Code CTBSUMMER (Limit 1)

This report will provide you cost estimates based on location and building materials.

Get Cost-To-Build Report

Or order by phone: 1-877-222-1762

Get Personalized Help

When do you want to start construction?

Do you have a lot?

Are you working with a builder?

Where do you plan on building?

Please enter your question(s)

Send me your Newsletter, too!

We do our best to get back to you within 24 - 48 business hours.

Need an answer faster? Call now...
Phone: 1-877-222-1762

Hours: Mon-Fri, 9AM - 8:30PM (EST)

See our Terms & Conditions and Privacy Policy.

PLAN 1016-34

Key Specs

3435
sq ft

4
Beds

3
Baths

2
Floors

3
Garages

This plan can be customized

Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.

Modify This Plan

Plan Description

"George Washington slept here" is almost a cliche for American historic houses, but Sheldon's Tavern, the model for this hand-some exterior, was host to General Wash-ington. He spent one night in the northeast room, and mentioned it in his diary. Elisha Sheldon built the house in 1760. In 1779, his son convert-ed it to a tavern. The thoroughly up-to-date floor plan of this adaptat-ion places formal rooms at the front of the house and a wide open informal area across the back. A spacious family room features a fireplace and doors to a front terrace and a rear covered porch. Also offering access to the porch, the morning room shares a planning desk and a snack bar with the kitchen. A short hallway leads past a walk-in pantry and a washroom to a side porch. Upstairs, the master suite pampers with a fireplace, a kitchenette and a wonderful bath. Each of the three family bedrooms has a walk-in closet.

Floor Plans

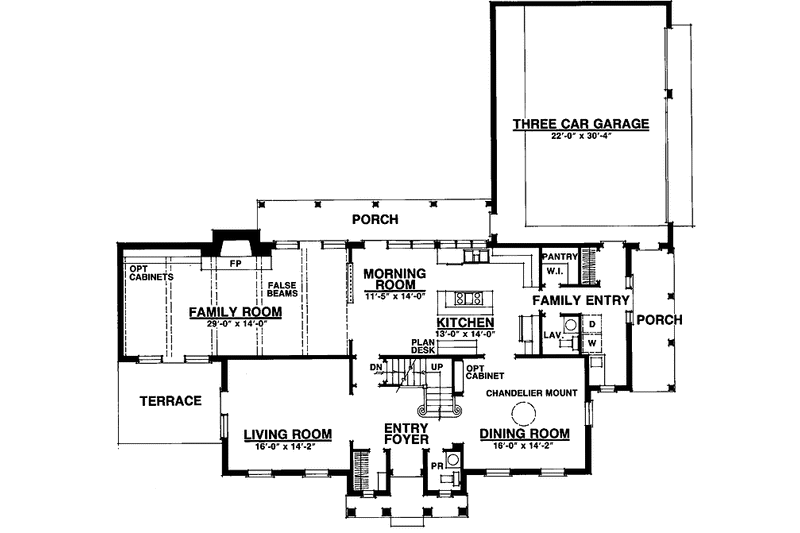

Floor Plan - Main Floor

Reverse

Builder Advantage Program

PRO BUILDERS:

Join the club and save 5% on your first order plus exclusive discounts and more.

JOIN FOR FREE

Click to Get Your Trend Report

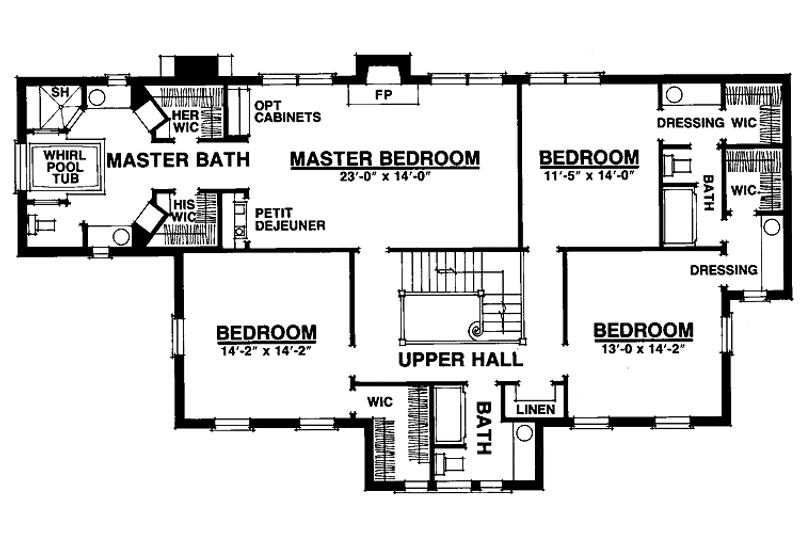

Floor Plan - Upper Floor

Reverse

Full Specs & Features

Dimension

Depth : 65' 4"
Height : 36'
Width : 70' 8"

Area

First Floor: 1702 sq/ft height 9'
Second Floor: 1733 sq/ft height 8'

* Total Square Footage typically only includes conditioned space and does not include garages, porches, bonus rooms, or decks.

Roof

Primary Pitch : 6:12
Roof Framing : Combination Truss/Conventional

Exterior Wall Framing

Exterior Wall Finish : Siding
Framing : Wood - 2x6

Bedroom Features

Fireplace
Formal Dining Room
Formal Living Room / Parlor

Additional Room Features

Family Room Keeping Room

Outdoor Spaces

Covered Front Porch
Covered Rear Porch

Rooms

3rd BR Closet:

25 sq/ft width 4' 10" x depth 5' 4"

Attic:

785 sq/ft width 38' x depth 20' 8"

Bathroom 2:

41 sq/ft width 5' x depth 8' 4"

Bedroom 2:

157 sq/ft width 11' 5" x depth 13' 10"

Bedroom 2 Closet:

37 sq/ft width 4' 8" x depth 8'

Bedroom 3:

184 sq/ft width 13' x depth 14' 2"

Bedroom 3 Closet:

37 sq/ft width 4' 8" x depth 8'

Bedroom 4:

200 sq/ft width 14' 2" x depth 14' 2"

Bedroom 4 Closet:

25 sq/ft width 4' 10" x depth 5' 4"

Breakfast Room:

149 sq/ft width 10' 10" x depth 13' 10"

Dining Room:

221 sq/ft width 15' 8" x depth 14' 2"

Foyer:

100 sq/ft width 12' 8" x depth 7' 11"

Garage:

660 sq/ft width 22' x depth 30'

Gathering Room:

396 sq/ft width 29' x depth 13' 8"

Hall Bathroom:

69 sq/ft width 8' 8" x depth 8'

Hall Closet:

22 sq/ft width 4' 5" x depth 5'

Kitchen:

179 sq/ft width 13' x depth 13' 10"

Living Room:

221 sq/ft width 15' 8" x depth 14' 2"

Master Bathroom:

145 sq/ft width 10' 8" x depth 13' 8"

Master Bedroom:

318 sq/ft width 23' x depth 13' 10"

Master Closet:

25 sq/ft width 4' 6" x depth 5' 8"

Mud Room:

72 sq/ft width 5' 10" x depth 12' 6"

Porch - Rear:

159 sq/ft width 30' x depth 5' 4"

Powder Room:

22 sq/ft width 4' 5" x depth 5'

Utility Room:

75 sq/ft width 5' 10" x depth 13'

What's Included In This Plan Set

See a sample plan set

All plans are drawn at ¼” scale or larger and include :

Foundation Plan: Drawn to 1/4" scale, this page shows all necessary notations and dimensions including support columns, walls and excavated and unexcavated areas.
Exterior Elevations: A blueprint picture of all four sides showing exterior materials and measurements.
Floor Plan(s): Detailed plans, drawn to 1/4" scale for each level showing room dimensions, wall partitions, windows, etc. as well as the location of electrical outlets and switches.
Cross Section: A vertical cutaway view of the house from roof to foundation showing details of framing, construction, flooring and roofing.
Interior Elevations: Detailed drawings of kitchen cabinet elevations and other elements as required.

» See important information before purchasing.

Questions? Call 1-877-222-1762

Plan Set

5 Copy Set : $799.00	5 printed plan sets mailed to you.
8 Copy Set : $871.25	8 printed plan sets mailed to you.
PDF Set : $973.25	PDF plan sets are best for fast electronic delivery and inexpensive local printing.
Reproducible Set : $1020.00	For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.

Foundation

Basement:
$0.00

Ideal for level lot, lower level of home partially or fully underground.

Framing

Wood 2x6:
$0.00

Wood 2x6

Additional Options

Additional Construction Sets : $51.00	Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).
Audio Video Design : $85.00	Receive an overlay sheet with suggested placement of audio and video components.
Construction Guide : $33.15	Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.
Lighting Design : $170.00	Receive an overlay sheet with suggested placement of lighting fixtures.
Mirror Reversed Sets : $51.00	A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.

*Alternate Foundations may take time to prepare.

*Options with a fee may take time to prepare. Please call to confirm.

Unless you buy an “unlimited” plan set or a multi-use license you may only build one home from a set of plans. Please call to verify if you intend to build more than once. Plan licenses are non-transferable and cannot be resold.
