PLAN 17-2802
Photographs may show modified designs.
- Jump to:
- All (7)
- Floor plans (3)
Get Personalized Help
Key Specs
3343
sq ft
4
Beds
3
Baths
2
Floors
2
Garages
Phone: 1-877-222-1762
See our Terms & Conditions and Privacy Policy.
with Code CTB2025 (limit 1)
Residential Construction Guide
Learn Building Basics
This downloadable, 26-page guide is full of diagrams and details about plumbing, electrical, and more.
PLAN 17-2802
This plan can be customized
Tell us about your desired changes so we can prepare an estimate for the design service. Click the button to submit your request for pricing, or call 1-877-222-1762 for assistance.
Plan Description
Floor Plans

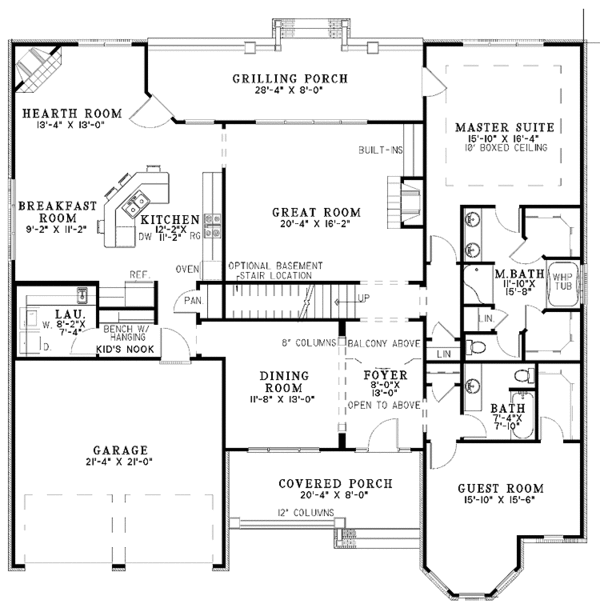

Floor Plan - Main Floor

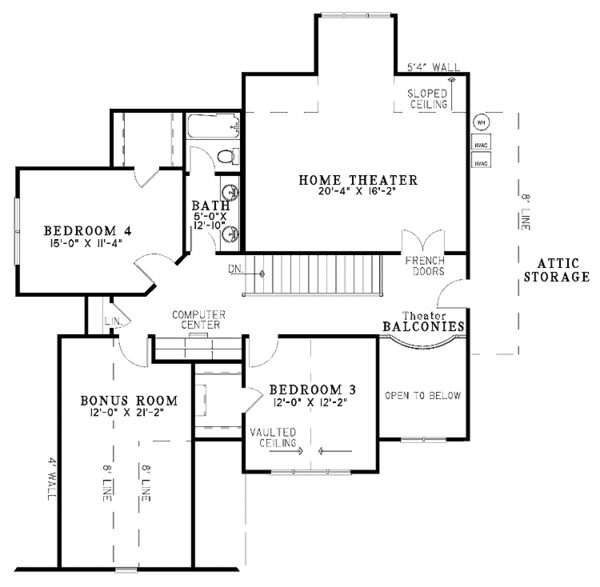

Floor Plan - Upper Floor
Floor Plan - Other Floor
Full Specs & Features
Dimension
Depth : 57'
Height : 32'
Width : 58' 10"
Area
Bonus: 261 sq/ft
First Floor: 2245 sq/ft height 9'
Garage: 467 sq/ft
Second Floor: 1098 sq/ft height 8'
Roof
Primary Pitch : 10:12
Roof Type : Shingle
Exterior Wall Framing
Exterior Wall Finish : Brick/Siding
Framing : Wood - 2x4
Bedroom Features
Fireplace
Formal Dining Room
Guest Suite
Main Floor Master Bedroom
Walk In Closet
Kitchen Features
Breakfast Nook
Kitchenette Wet Bar
Additional Room Features
Family Room Keeping Room
Great Room Living Room
Loft
Main Floor Laundry
Media Room
Storage Area
Unfinished Future Space
Vaulted / Cathedral Ceilings
Outdoor Spaces
Balcony
Covered Front Porch
Covered Rear Porch
More
Jack & Jill Bath
Rooms
Bedroom 3:
146 sq/ft width 12' x depth 12' 2"
Bedroom 4:
169 sq/ft width 15' x depth 11' 4"
Breakfast Room:
102 sq/ft width 9' 2" x depth 11' 2"
Dining Room:
151 sq/ft width 11' 8" x depth 13'
Great Room:
328 sq/ft width 20' 4" x depth 16' 2"
Guest Bedroom:
245 sq/ft width 15' 10" x depth 15' 6"
Hearth Room:
173 sq/ft width 13' 4" x depth 13'
Kitchen:
135 sq/ft width 12' 2" x depth 11' 2"
Master Bedroom:
258 sq/ft width 15' 10" x depth 16' 4"
What's Included In This Plan Set
- Foundation plan: Most plans are available with a slab or crawlspace foundation. Optional walkout style basement (three walls masonry with a wood framed rear wall with notes for the builder to locate the windows and doors) and optional full basement foundation available if the plan allows, at an additional cost. (Walk out is not shown on elevations unless finished walk out.)
- CAD Unlimited Build comes with a free PDF.
- Floor plans: Each home plan includes the floor plan showing the dimensioned locations of walls, doors, and windows as well as a schematic electrical layout.
- Set of elevations: All plans include the exterior elevations (front, rear, right and left) that show and describe the finished materials of the house.
- Building section(s): The building sections are vertical cuts through the house and the stairs showing floor, ceiling and roof height information. **Cross section views available for an additional fee. ** (cut throughs where applicable)
- Miscellaneous details: These are included for many interior and exterior conditions that require more specific information for their construction.
- Roof overview plan: This is a “bird’s eye” view showing the roof slopes, ridges, valleys and any saddles.
Plan Set
$1147.50
$1232.50
$1445.00
$1742.50
$2295.00
$2295.00
Foundation
$0.00
$0.00
$254.15
$254.15
Framing
$0.00
$254.15
Additional Options
$254.15
$68.00
$85.00
$335.75
$33.15
$126.65
* Alternate Foundations may take time to prepare.
** Options with a fee may take time to prepare. Please call to confirm.
