PLAN 76-123

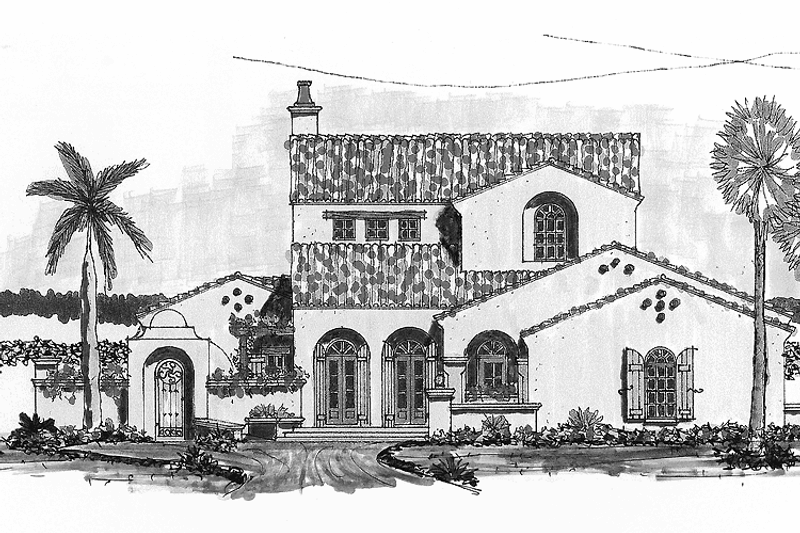

Architectural House Design - Mediterranean Exterior - Rear Elevation Plan #76-123

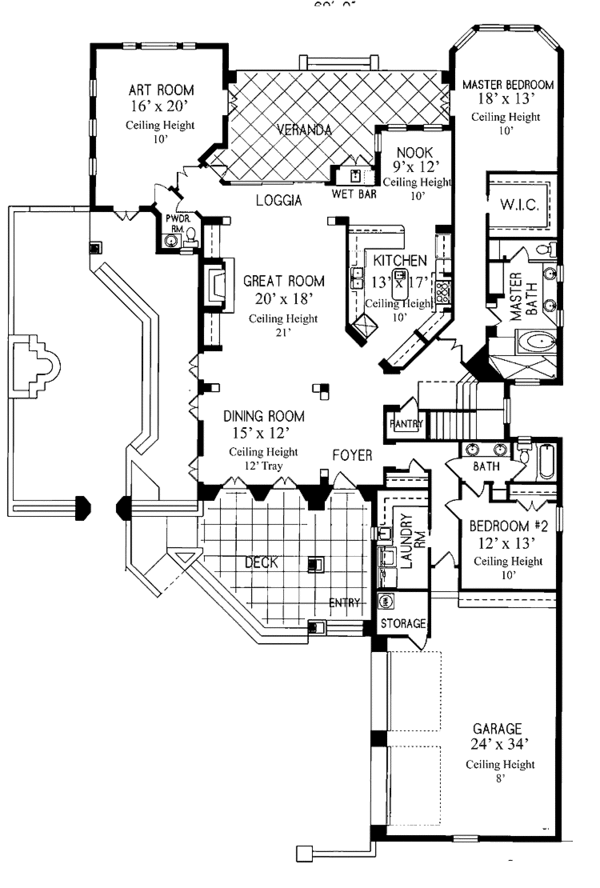

Architectural House Design - Mediterranean Floor Plan - Main Floor Plan #76-123

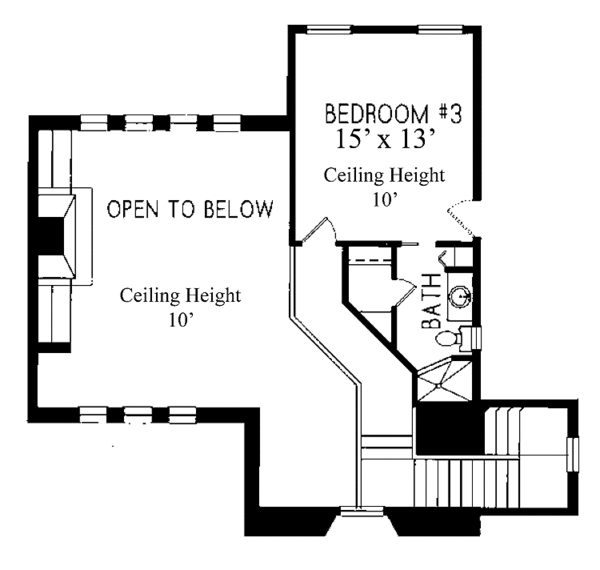

Architectural House Design - Mediterranean Floor Plan - Upper Floor Plan #76-123

Key Specs

3321
sq ft

3
Beds

3.5
Baths

2
Floors

2
Garages
