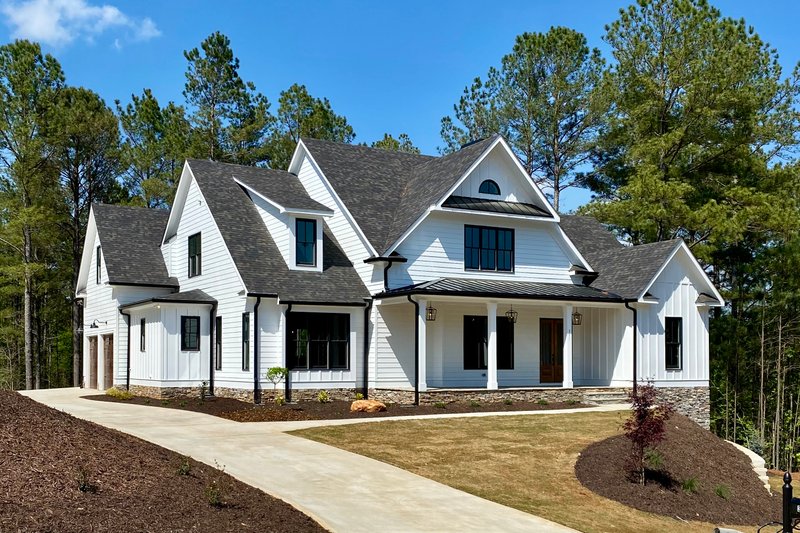

Beautifully blending classic and contemporary elements, this plan gets even the smallest details right. For example, check out the master suite: in this comfortable retreat, you can step out to the back covered porch, relax in the large shower or window-side tub, or sort through your wardrobe in the walk-in closet. The island kitchen sits at the heart of the home, facing both the family room and the vaulted keeping room and easily accessed from the mudroom. Upstairs, each bedroom includes a private bath. A bonus room above the garage invites future expansion.
162 sq/ft width 13' 6" x depth 12'
190 sq/ft width 14' 7" x depth 13'
192 sq/ft width 12' 8" x depth 15' 2"
132 sq/ft width 12' x depth 13'
204 sq/ft width 13' x depth 15' 8"
368 sq/ft width 20' 9" x depth 17' 9"
width 7' 8" x depth 15' 8"
790 sq/ft width 23' 5" x depth 33' 9"
198 sq/ft width 13' 6" x depth 14' 8"
width 16' x depth 11' 6"
width 5' 8" x depth 6'
270 sq/ft width 14' x depth 18'
width 5' 8" x depth 8' 6"
Optional Bonus Room:
517 sq/ft width 11' 5" x depth 33' 9"
width 4' 6" x depth 3' 6"
|PDF plan sets are best for fast electronic delivery and inexpensive local printing.|
|For inexpensive local printing / making minor adjustments by hand. 1 printed set, typically on Bond paper.|
|For use by design professionals to make substantial changes to your house plan and inexpensive local printing.|
|Ideal for semi-sloped or level lot, home can be built off of grade, typically 18” - 48”.|
|Ideal for sloping lot, lower level of home partially underground.|
|Ideal for level lot, single layer concrete poured directly on grade.|
|Choose this option to reverse your plans and to have the text and dimensions readable.|
|Additional Construction Sets
|Additional hard copies of the plan (can be ordered at the time of purchase and within 90 days of the purchase date).|
|Audio Video Design
|Receive an overlay sheet with suggested placement of audio and video components.|
|Educate yourself about basic building ideas with these four detailed diagrams that discuss electrical, plumbing, mechanical, and structural topics.|
|Receive an overlay sheet with suggested placement of lighting fixtures.|
|Mirror Reversed Sets
|A mirror-reversed set is a printed copy of your house, resulting in the same image you would see if you held the drawing up to a mirror. Everything, including the text, is backward in relation to the original design. These kinds of drawing are typically used to reorient an original plan more advantageously on a site, either because the homeowner prefers it that way or because of limitations of the site itself. Note: Mirror reverse sets are only available with a 5 copy or 8 copy set. With a Reproducible, PDF, or CAD set, you can print mirrored copies locally. In addition: 5 Copy set selected, should only allow 4 mirrored sets to be selected. 8 Copy set selected, should only allow 7 mirrored sets to be selected.|
*Alternate Foundations may take time to prepare.
*Options with a fee may take time to prepare. Please call to confirm.
